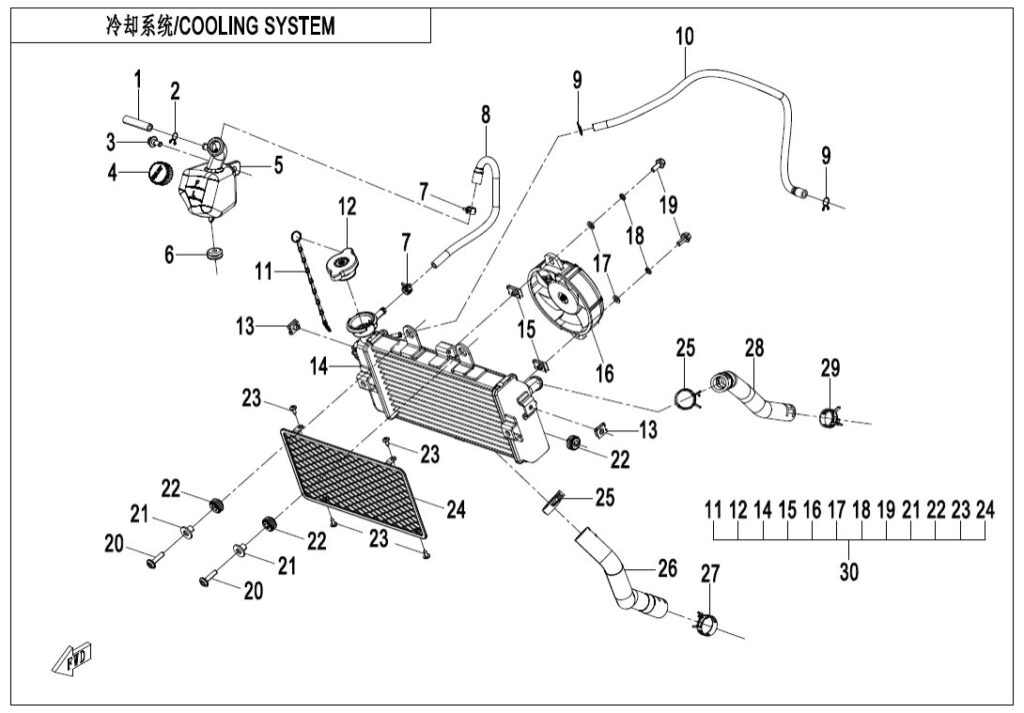

F18 COOLING SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | OVERFLOW HOSE, RESERVOIR 6KMV-180001-B001 | Skladem | 15,54 Kč | ||
| 02 | CLAMP A10 30601-110010 | Skladem | 15,54 Kč | ||
| 03 | BOLT M6x14 8010-000004 | Skladem | 15,54 Kč | ||
| 04 | CAP, RESERVOIR TANK 6KJ0-180302 | Skladem | 62,15 Kč | ||
| 05 | RESERVIOR TANK ASSY 6KJ0-180310 | Skladem | 403,95 Kč | ||
| 06 | RUBBER DAMPER, OUTER GUARD A000-040302 | Skladem | 31,07 Kč | ||
| 07 | CLAMP A13 30601-113010 | Skladem | 15,54 Kč | ||
| 08 | CONNECTING PIPE, RESERVOIR TANK 6KMV-180004-B000 | Skladem | 77,68 Kč | ||
| 09 | CLAMP A11 30601-111010 | Skladem | 15,54 Kč | ||
| 10 | THERMOSTAT CONNECTING PIPE 6KIV-180003-2000 | Skladem | 93,22 Kč | ||
| 11 | CHAIN 6KM#-181300-8000-20 | Skladem | 46,61 Kč | ||
| 12 | CAP, WATER FILLER 0010-136100 | Skladem | 232,13 Kč | ||
| 13 | NUT CLIP M6 8030-040800-00001 | Skladem | 15,54 Kč | ||
| 14 | RADIATOR ASSY 6KIV-181100-2000 | Skladem | 3 184,96 Kč | ||
| 15 | NUT M6 8010-000003 | Skladem | 46,61 Kč | ||
| 16 | RADIATOR FAN ASSY 6KIV-181200-2000-M1 | Skladem | 2 765,48 Kč | ||
| 17 | Podložka 30306-060112 | Skladem | 15,54 Kč | ||
| 18 | Podložka 30303-060112 | Skladem | 15,54 Kč | ||
| 19 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
| 20 | BOLT M6x25 30006-060025870 | Skladem | 15,54 Kč | ||
| 21 | RUBBER CUSHION TUBE, RADIATOR 9060-180029 | Skladem | 15,54 Kč | ||
| 22 | DAMPING RUBBER MAT 6KM#-181001-8001 | Skladem | 46,61 Kč | ||
| 23 | SELF-TAPPING SCREW 6KIV-181301-2000-21 | Skladem | 15,54 Kč | ||
| 24 | RESERVOIR GUARD 6KIV-181300-2000 | Skladem | 310,73 Kč | ||
| 25 | CLAMP 30605-127060 | Skladem | 46,61 Kč | ||
| 26 | RADIATOR WATER OUTLET HOSE 6KIV-180002-2000 | Skladem | 139,83 Kč | ||
| 27 | CLAMP B28 6KM0-180004 | Skladem | 101,64 Kč | ||
| 28 | RADIATOR WATER INLET HOSE 6KIV-180001-2000 | Skladem | 139,83 Kč | ||
| 29 | CLAMP B24 6100-180001 | Skladem | 101,64 Kč | ||
| 30 | RADIATOR ASSY 6KIV-181000-2000 | Skladem | 6 043,66 Kč | ||
