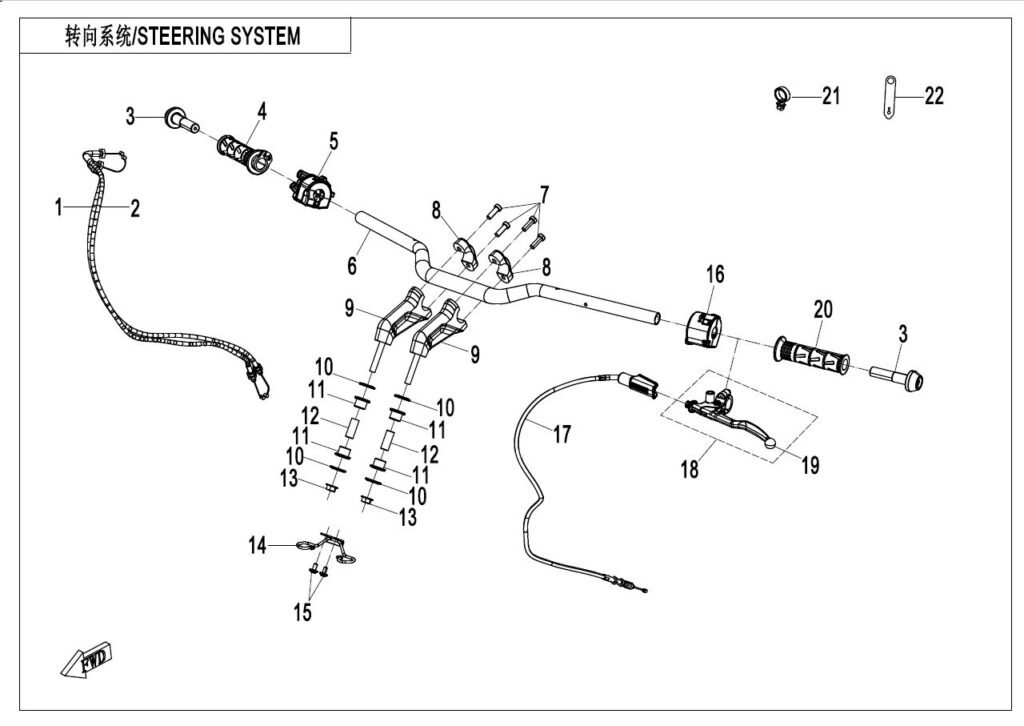

F10 STEERING SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | THROTTLE CABLE 6KMV-100700-M300 | Skladem | 279,66 Kč | ||
| 02 | ADJUSTABLE THROTTLE CABLE 6KMV-100800-M300 | Skladem | 279,66 Kč | ||
| 03 | BALANCE BLOCK ASSEMBLY 6KMV-100300-M300 | Skladem | 186,44 Kč | ||
| 04 | RH HAND GRIP ASSY A000-100010-20000 | Skladem | 217,51 Kč | ||
| 05 | RH HANDLEBAR SWITCH ASSY 6KMV-167000-2800 | Skladem | 1 429,35 Kč | ||
| 06 | HANDLEBAR PIPE 6KMV-100100-M300 | Skladem | 1 724,54 Kč | ||
| 07 | INNER HEX SCREW M8×25 30102-080025870 | Skladem | 43,52 Kč | ||
| 08 | HANDLEBAR COVER 6KMV-100006-M300 | Skladem | 403,95 Kč | ||
| 09 | HANDLEBAR BRACKET ASSEMBLY 6KMV-100032-M300 | Skladem | 1 149,69 Kč | ||
| 10 | Podložka 6KJ0-050005 | Skladem | 31,07 Kč | ||
| 11 | DAMPER RUBBER, UPPER TRIPLE CLAMP 6KJ0-050004 | Skladem | 31,07 Kč | ||
| 12 | LINER, UPPER CONNECTING PLATE 6KJ0-050006-00001 | Skladem | 31,07 Kč | ||
| 13 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 14 | HANDLEBAR LH & RH CABLE HOOK 6KMV-100601-M300 | Skladem | 248,58 Kč | ||
| 15 | INNER HEX SCREW M6x12 6WWV-046702-5000 | Skladem | 15,54 Kč | ||
| 16 | LH HANDLEBAR SWITCH ASSEMBLY 6KMV-166000-M300 | Skladem | 1 584,71 Kč | ||
| 17 | CLUTCH CABLE 6KMV-100600-M300 | Skladem | 341,80 Kč | ||
| 18 | CLUTCH LEVER ASSY 6FI3-100300-10000 | Skladem | 419,48 Kč | ||
| 19 | CLUTCH LEVER 6FI3-100301 | Skladem | 170,90 Kč | ||
| 20 | HAND GRIP, LH A000-100001-10000 | Skladem | 170,90 Kč | ||
| 21 | CLAMP, FRONT BRAKE HOSE A000-050015 | Skladem | 15,54 Kč | ||
| 22 | TIE BAND, CLUTCH 6KJ0-100002 | Skladem | 29,02 Kč | ||
