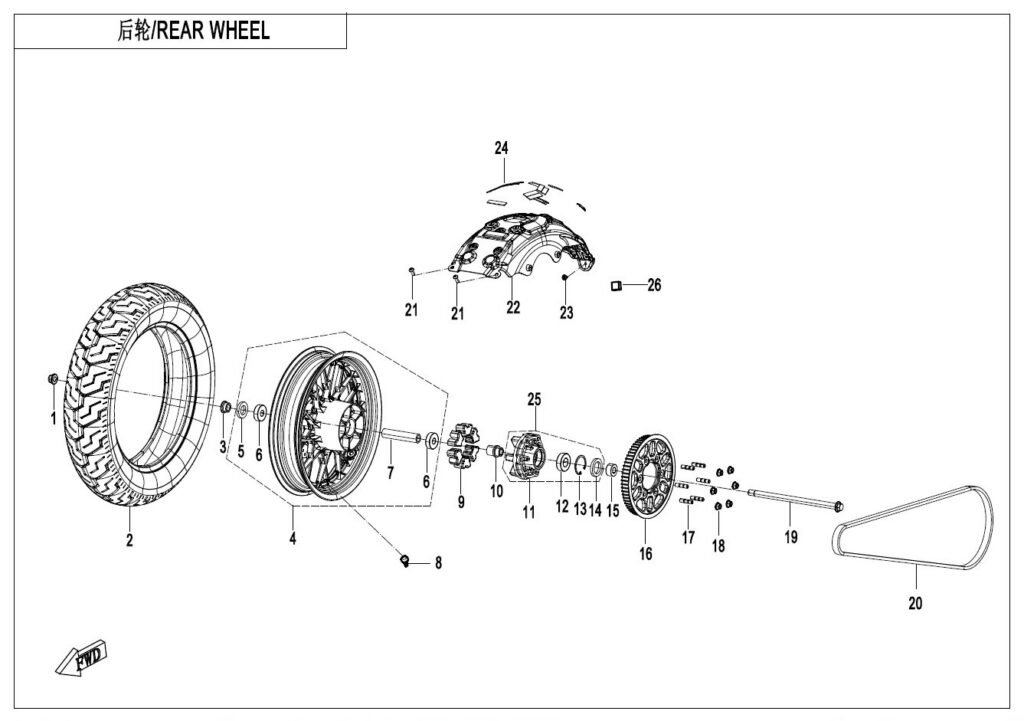

F11 REAR WHEEL
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | NUT M16x1.5 6AQV-060006-1000-M1 | Skladem | 58,08 Kč | ||
| 02 | TIRE SH-30705-1604 | Skladem | 8 058,60 Kč | ||
| 03 | RH SHAFT BUSHING, REAR WHEEL 6AQV-110004-1000 | Skladem | 130,68 Kč | ||
| 04 | REAR RIM ASSY 6AQV-110200-7100-0BV00 | Skladem | 6 711,72 Kč | ||
| 05 | OIL SEAL 30500-027800N | Skladem | 58,08 Kč | ||
| 06 | Ložisko 30400-01784 | Skladem | 217,80 Kč | ||
| 07 | REAR RIM MIDDLE SPACER 6AQV-110202-7100 | Skladem | 139,83 Kč | ||
| 08 | VALVE, INFLATION 5190-070030-1000 | Skladem | 43,52 Kč | ||
| 09 | DRIVEN PULLEY SEAT DAMPER 6AQV-110004-7100 | Skladem | 87,12 Kč | ||
| 10 | DRIVEN PULLEY SEAT SHAFT SLEEVE 6AQV-110003-7100 | Skladem | 116,16 Kč | ||
| 11 | DRIVEN PULLEY SEAT 6AQV-110501-7100 | Skladem | 6 618,51 Kč | ||
| 12 | BEARING, 6205-2RS 30400-02503 | Skladem | 186,44 Kč | ||
| 13 | CIRCLIP FOR HOLE 52 30800-05205 | Skladem | 31,07 Kč | ||
| 14 | OIL SEAL, FB35x52x8 30501-035800N | Skladem | 62,15 Kč | ||
| 15 | LH SHAFT BUSHING, REAR WHEEL 6AQV-110003-1000 | Skladem | 130,68 Kč | ||
| 16 | DRIVEN PULLEY 6KMV-110009-M300-M1 | Skladem | 7 581,76 Kč | ||
| 17 | DRIVEN PULLEY SEAT STUD 6AQV-110034-7100 | Skladem | 43,56 Kč | ||
| 18 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 19 | REAR WHEEL SHAFT 6KMV-110001-M300 | Skladem | 326,26 Kč | ||
| 20 | Řemen 6KMV-110008-M300-M1 | Skladem | 7 638,13 Kč | ||
| 21 | SCREW M8x20 30121-080020870 | Skladem | 15,54 Kč | ||
| 22 | REAR FENDER INNER PLATE ASSEMBLY 6KMV-110010-M302 | Skladem | 3 542,30 Kč | ||
| 23 | INNER HEX SCREW M6x12 6WWV-046702-5000 | Skladem | 15,54 Kč | ||
| 24 | FENDER RUBBER 1 6AQV-110031-7100 | Skladem | 15,54 Kč | ||
| 25 | DRIVEN PULLEY SEAT ASSEMBLY 6AQV-110500-7100 | Skladem | 2 998,53 Kč | ||
| 26 | BATTERY BUFFER BLOCK 3 6KIV-042404-2000 | Skladem | 15,54 Kč | ||
