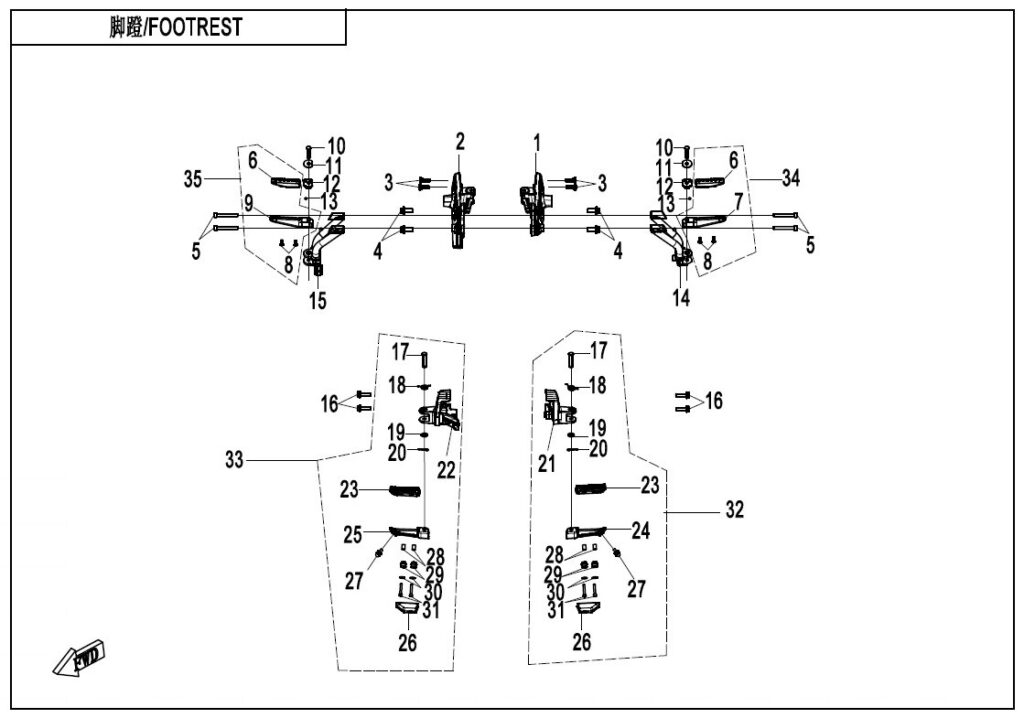

F14 FOOTREST
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | REAR LH FENDER BRACKET 6KMV-035000-M300 | Skladem | 4 319,12 Kč | ||
| 2 | REAR RH FENDER BRACKET 6KMV-036000-M300 | Skladem | 4 319,12 Kč | ||
| 3 | BOLT M8x25 6GU#-140201-6000 | Skladem | 15,54 Kč | ||
| 4 | Šroub 30006-102025810 | Skladem | 31,07 Kč | ||
| 5 | SCREW M8x60 30102-080060810 | Skladem | 29,02 Kč | ||
| 6 | RUBBER, REAR FOOTREST BOARD 6GU#-140080-6000 | Skladem | 108,75 Kč | ||
| 7 | LH REAR FOOTREST BOARD 6GU#-140041-6000-0BP00 | Skladem | 497,16 Kč | ||
| 8 | Šroub (vrut) 30105-050014470 | Skladem | 15,54 Kč | ||
| 9 | RH REAR FOOTREST BOARD 6GU#-140051-6000-0BP00 | Skladem | 528,24 Kč | ||
| 10 | PIN SHAFT Dia 8 A000-140142 | Skladem | 31,07 Kč | ||
| 11 | LOCATING GASKET 2 A000-140106 | Skladem | 31,07 Kč | ||
| 12 | LOCATING GASKET 1 A000-140104 | Skladem | 46,61 Kč | ||
| 13 | CIRCLIP 6 30802-00603 | Skladem | 15,54 Kč | ||
| 14 | REAR LH FOOTREST BRACKET ASSEMBLY 6KMV-140030-M300 | Skladem | 1 149,69 Kč | ||
| 15 | REAR RH FOOTREST BRACKET ASSEMBLY 6KMV-140040-M300 | Skladem | 1 149,69 Kč | ||
| 16 | BOLT M8x30 30006-080030810 | Skladem | 15,54 Kč | ||
| 17 | PIN SHAFT 6WWV-140141-5000 | Skladem | 31,07 Kč | ||
| 18 | SPRING A000-140103-20000 | Skladem | 31,07 Kč | ||
| 19 | Podložka 30300-100112 | Skladem | 15,54 Kč | ||
| 20 | COTTER PIN 30903-0322210 | Skladem | 15,54 Kč | ||
| 21 | FRONT LH FOOTREST BRACKET ASSY 6KMV-140600-M300 | Skladem | 730,21 Kč | ||
| 22 | FRONT RH FOOTREST BRACKET ASSY 6KMV-140700-M300 | Skladem | 1 009,87 Kč | ||
| 23 | FOOTREST RUBBER 6KMV-140170-8100 | Skladem | 116,16 Kč | ||
| 24 | LH FRONT FOOTREST SEAT 6KWV-140131-1000-0BP00 | Skladem | 326,26 Kč | ||
| 25 | RH FRONT FOOTREST SEAT 6KWV-140141-1000-0BP00 | Skladem | 326,26 Kč | ||
| 26 | BALANCE BLOCK, FOOTREST 6KM#-140001-8001-0BP00 | Skladem | 348,19 Kč | ||
| 27 | LIMIT BOLT 6KM0-130123 | Skladem | 58,03 Kč | ||
| 28 | Pouzdro 6NTG-200419 | Skladem | 101,64 Kč | ||
| 29 | CUSHION RUBBER 6KN0-140002 | Skladem | 31,07 Kč | ||
| 30 | Podložka 30305-050112 | Skladem | 15,54 Kč | ||
| 31 | SCREW M5x30 30102-050030860 | Skladem | 31,07 Kč | ||
| 32 | FRONT LH FOOTREST ASSEMBLY 6KMV-142000-M300 | Skladem | 1 522,57 Kč | ||
| 33 | FRONT RH FOOTREST ASSEMBLY 6KMV-143000-M300 | Skladem | 1 740,08 Kč | ||
| 34 | RUBBER, LH REAR FOOTREST BOARD 6GU#-1400A0-6000-0BP00 | Skladem | 543,77 Kč | ||
| 35 | RUBBER, RH REAR FOOTREST BOARD 6GU#-1400B0-6000-0BP00 | Skladem | 543,77 Kč | ||
