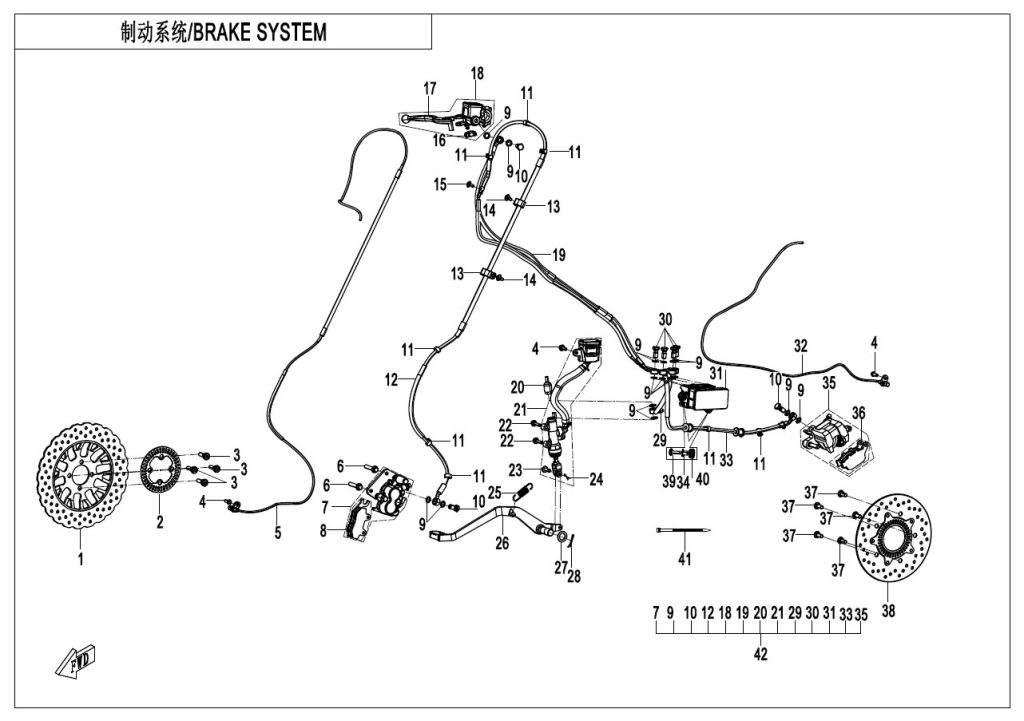

F08 BRAKE SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | FRONT BRAKE DISC 6BLV-080001-1000 | Skladem | 885,57 Kč | ||
| 2 | FRONT GEAR RING 6BMV-080001-1100 | Skladem | 155,36 Kč | ||
| 3 | BOLT, FRONT BRAKE DISC 6KJ0-080005 | Skladem | 31,07 Kč | ||
| 4 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 5 | SPEED SENSOR 6BMV-080004-1101-M1 | Skladem | |||
| 6 | Šroub 30006-080040810 | Skladem | 31,07 Kč | ||
| 7 | FRONT BRAKE CALIPER ASSY 6BMV-083300-1001-M1 | Skladem | 2 920,84 Kč | ||
| 8 | FRONT BRAKE PAD ASSY SH-6BMV-0833A0-1001 | Skladem | 1 522,57 Kč | ||
| 9 | WASHER 6BLV-080101-1000-20 | Skladem | 46,61 Kč | ||
| 10 | HOSE BOLT 6BMV-080102-1100-21 | Skladem | 108,75 Kč | ||
| 11 | CLIP, BRAKE HOSE 6KJ0-080003-00001 | Skladem | 31,07 Kč | ||
| 12 | FRONT BRAKE FLUID HOSE FLUID OUTLET PIPE 6BMV-080030-1100 | Skladem | 1 631,32 Kč | ||
| 13 | HOSE CLIP 6BMV-080005-1100 | Skladem | 15,54 Kč | ||
| 14 | OIL HOSE CLIP INNER HEX SCREW 6BMV-080005-1000 | Skladem | 15,54 Kč | ||
| 15 | INNER HEX SCREW M6x12 6WWV-046702-5000 | Skladem | 15,54 Kč | ||
| 16 | BRAKE SWITCH 6BLV-083120-1000-36 | Skladem | 326,26 Kč | ||
| 17 | BRAKE LEVER 6BLV-083113-1000-32 | Skladem | 543,77 Kč | ||
| 18 | HAND BRAKE MASTER CYLINDER 6BMV-083100-1101-M1 | Skladem | 1 677,93 Kč | ||
| 19 | FRONT BRAKE FLUID HOSE OIL INLET PIPE 6BMV-080020-1100 | Skladem | |||
| 20 | REAR BRAKE SWITCH 6BMV-093200-1101-22 | Skladem | 605,92 Kč | ||
| 21 | FOOT BRAKE MASTER CYLINDER 6BMV-093100-1100-M1 | Skladem | 1 771,15 Kč | ||
| 22 | BOLT 30006-060025880 | Skladem | 15,54 Kč | ||
| 23 | PIN SHAFT 6BLV-093112-1001-32 | Skladem | 15,54 Kč | ||
| 24 | COTTER PIN 6BLV-093113-1000-33 | Skladem | 46,61 Kč | ||
| 25 | REAR BRAKE RETURN SPRING 6BLV-090003-1000 | Skladem | 31,07 Kč | ||
| 26 | REAR BRAKE PEDAL ASSY 6BMV-091000-1000 | Skladem | 481,63 Kč | ||
| 27 | PLAIN WASHER 6BLV-090004-1000 | Skladem | 15,54 Kč | ||
| 28 | COTTER PIN 30903-0323210 | Skladem | 15,54 Kč | ||
| 29 | REAR BRAKE FLUID HOSE FLUID INLET PIPE 6BMV-080040-1100 | Skladem | 217,51 Kč | ||
| 30 | VALVE BODY BOLT 6BMV-080102-1100-20 | Skladem | 139,83 Kč | ||
| 31 | ABS CONTROLLER 6BMV-083000-1100-M1 | Skladem | 11 279,43 Kč | ||
| 32 | SPEED SENSOR FA8V-080004-1501-M1 | Skladem | 559,31 Kč | ||
| 33 | REAR BRAKE FLUID HOSE FLUID OUTLET PIPE 6BMV-080050-1100 | Skladem | 497,16 Kč | ||
| 34 | RUBBER CUSHION TUBE, RADIATOR 9060-180029 | Skladem | 15,54 Kč | ||
| 35 | REAR BRAKE CALIPER ASSY 6BMV-093400-1100-M1 | Skladem | 3 449,08 Kč | ||
| 36 | BRAKE PAD ASSY SH-6BLV-0933A0 | Skladem | 761,28 Kč | ||
| 37 | BRAKE DISC BOLT 6BLV-090002-1000 | Skladem | 15,54 Kč | ||
| 38 | REAR BRAKE DISC ASSY 6BMV-080010-1100 | Skladem | 870,04 Kč | ||
| 39 | INNER HEX SCREW M6x20 6WWV-046902-5000 | Skladem | 15,54 Kč | ||
| 40 | RUBBER BUSHING 6WWV-030019-5000 | Skladem | 15,54 Kč | ||
| 41 | TIE BAND 6L30-150003 | Skladem | 15,54 Kč | ||
| 42 | ABS BRAKE ASSY 6BMV-081000-1101 | Skladem | |||
| 42 | ABS BRAKE ASSY 6BMV-081000-1102 | Skladem | |||
