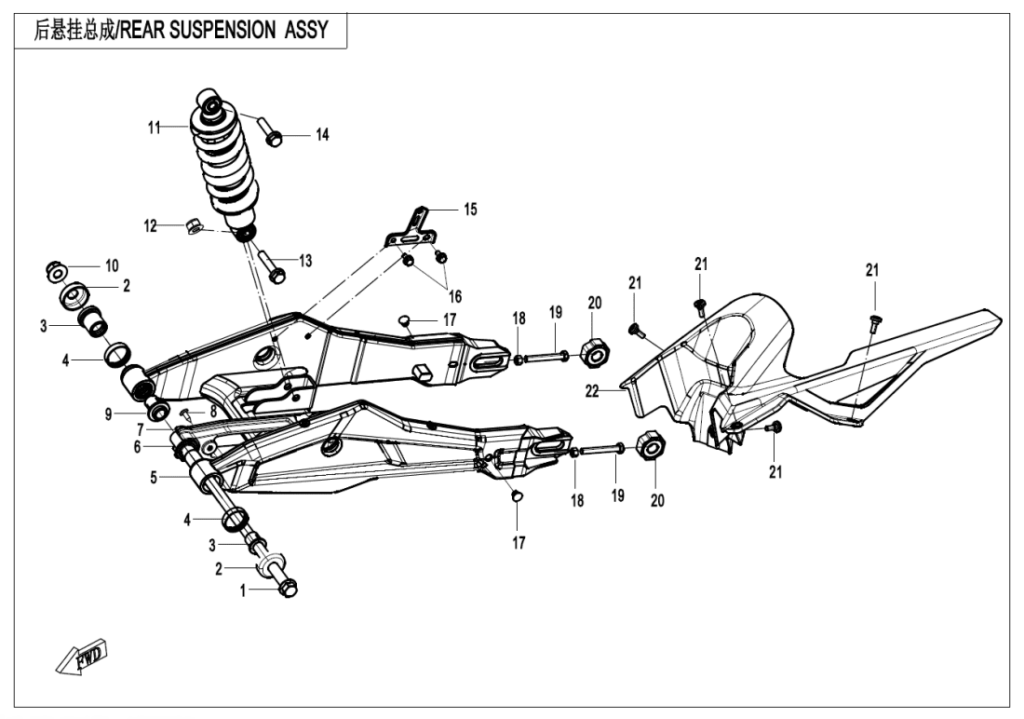

F06 REAR SUSPENSION
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | REAR FORK SHAFT 6KMV-060001-C000 | Skladem | 372,87 Kč | ||
| 02 | DUST-PROOF CAP, REAR SWING ARM 6KMV-060010-C000 | Skladem | 174,24 Kč | ||
| 03 | OUTER BUSHING, REAR SWING ARM 6100-060008 | Skladem | 108,75 Kč | ||
| 04 | ANTI-DUST RING 6090-060005 | Skladem | 62,15 Kč | ||
| 05 | REAR FORK 6KMV-060300-C000-0BY00 | Skladem | |||
| 06 | LH INNER BUSHING, REAR FORK 6KMV-060003-C000 | Skladem | 248,58 Kč | ||
| 07 | CHAIN GUIDE 6KM0-060201 | Skladem | 466,09 Kč | ||
| 08 | SCREW M6×17.5 ARMY GREEN 8030-040020-1000 | Skladem | 31,07 Kč | ||
| 09 | RH INNER BUSHING, REAR FORK 6KMV-060004-C000 | Skladem | |||
| 10 | NUT M14x1.5 30204-143810 | Skladem | 43,52 Kč | ||
| 11 | Zadní tlumič 6KMV-060100-C001-M1 | Skladem | |||
| 12 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 13 | BOLT M10x1.25×50 30006-102050810 | Skladem | 43,52 Kč | ||
| 14 | BOLT M10x1.25×45 30006-102045810 | Skladem | 46,61 Kč | ||
| 15 | FIXING BRACKET, REAR FENDER 6KM0-060410 | Skladem | |||
| 16 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 17 | RUBBER PLUG, CLUTCH LEVER 6KM#-100002-8000 | Skladem | 15,54 Kč | ||
| 18 | NUT M8 30200-080810 | Skladem | 29,02 Kč | ||
| 19 | BOLT M8x60 30004-080060810 | Skladem | 31,07 Kč | ||
| 20 | ADJUSTING BLOCK 6KMV-060002-C000-0BY00 | Skladem | 232,32 Kč | ||
| 21 | INNER HEX STEPPED SCREW M6x14 6WWV-046602-5000 | Skladem | 15,54 Kč | ||
| 22 | SPROCKET GUARD 6KMV-040801-C000 | Skladem | 605,92 Kč | ||
