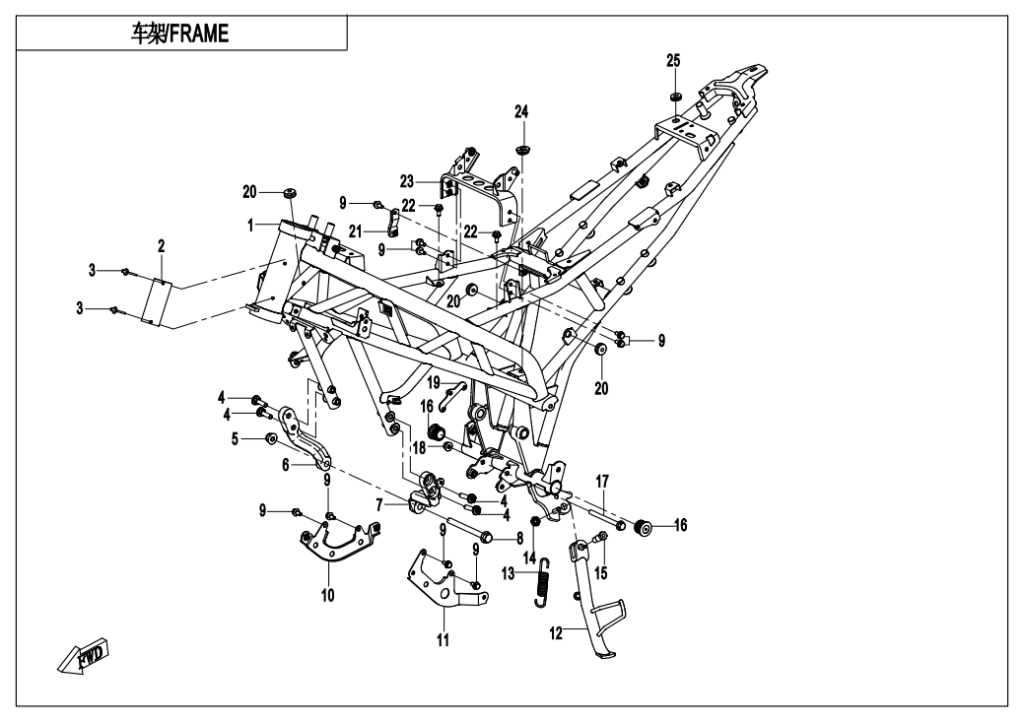

F03-1 FRAME
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | Sestava rámu 6KM0-031000-2BB00 | Skladem | |||
| 01 | Sestava rámu 6KM0-031000-2BC00 | Skladem | |||
| 02 | Podložka 6KN0-191012 | Skladem | |||
| 02 | VEHICLE PLATE 6KM#-190013-6000 | Skladem | |||
| 03 | BLIND RIVET 30902-0401320 | Skladem | 15,54 Kč | ||
| 04 | BOLT M8 6KM0-140107 | Skladem | 31,07 Kč | ||
| 05 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 06 | FIXING PLATE, CANISTER 6KM0-030006-0B200 | Skladem | |||
| 07 | LH MOUNTING BRACKET, ENGINE 6KM0-030005-0B201 | Skladem | |||
| 08 | BOLT M10x1.25×110 30006-102110110 | Skladem | 58,03 Kč | ||
| 09 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 10 | BRACKET, ENGINE RH PROTECTION PLATE MATTE BLACK 6KM0-030020-0B200 | Skladem | 139,83 Kč | ||
| 11 | BRACKET, ENGINE LH PROTECTION PLATE MATTE BLACK 6KM0-030010-0B200 | Skladem | 124,29 Kč | ||
| 12 | SIDE BRACKET ASSY 6KM0-030310-0B200 | Skladem | 248,58 Kč | ||
| 13 | SPRING, SIDE STAND 6090-030006 | Skladem | |||
| 14 | NUT M10x1.25 30208-102010 | Skladem | 15,54 Kč | ||
| 15 | BOLT, SIDE STAND A000-030006 | Skladem | 62,15 Kč | ||
| 16 | RUBBER PLUG 6KJ0-030503 | Skladem | 31,07 Kč | ||
| 17 | BOLT M8x90 30006-080090810 | Skladem | 31,07 Kč | ||
| 18 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 19 | BRACKET, CANISTER 6KM0-030030-0B200 | Skladem | 46,61 Kč | ||
| 20 | RUBBER DAMPER, OUTER GUARD A000-040302 | Skladem | 31,07 Kč | ||
| 21 | ABS BRACKET MATTE BLACK 6KM0-030050-0B200 | Skladem | 101,64 Kč | ||
| 22 | BOLT M6x14 8010-000004 | Skladem | 15,54 Kč | ||
| 23 | REAR MOUNTING ASSY,FUEL TANK MATTE BLACK 6KM0-030100-2B200 | Skladem | 217,51 Kč | ||
| 24 | DAMPER, FRONT FENDER 8080-040064 | Skladem | 15,54 Kč | ||
| 25 | RUBBER SLEEVE 5BY0-040010 | Skladem | 31,07 Kč | ||
