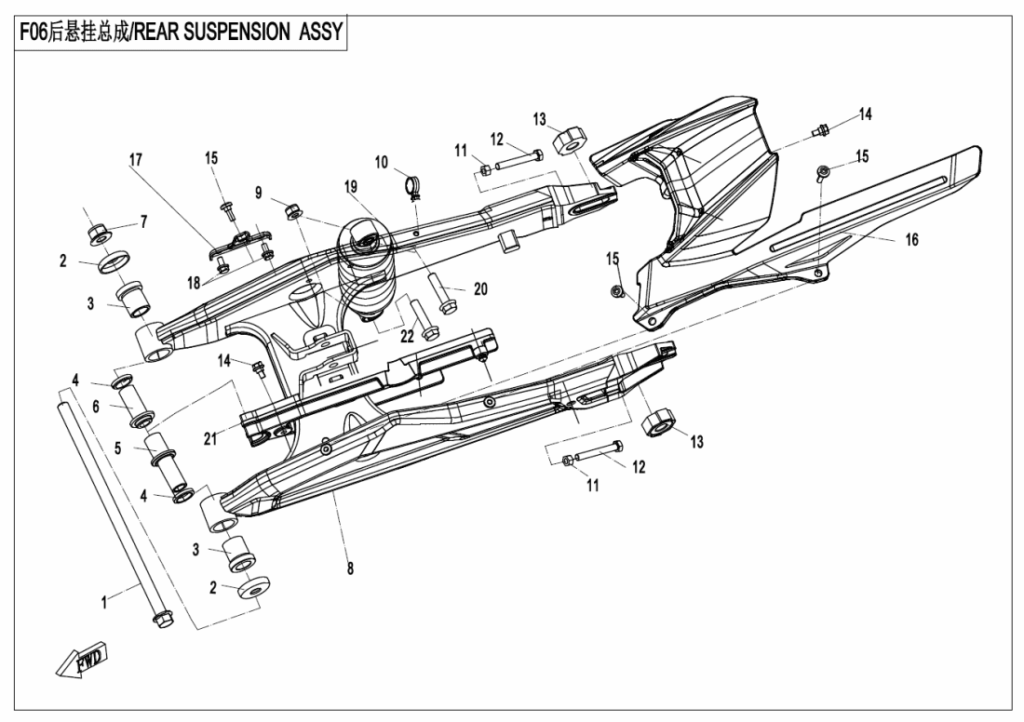

F06-B REAR SUSPENSION(SHEET METAL )
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | REAR FORK SHAFT 6KM0-060001-10000 | Skladem | 406,22 Kč | ||
| 02 | DUST CAP, REAR FORK 6090-060010 | Skladem | |||
| 03 | OUTER BUSHING, REAR SWING ARM 6100-060008 | Skladem | 108,75 Kč | ||
| 04 | ANTI-DUST RING 6090-060005 | Skladem | 62,15 Kč | ||
| 05 | LH INNER BUSHING, REAR SWING ARM 6KJ0-060003-00001 | Skladem | 279,66 Kč | ||
| 06 | RH INNER BUSHING, REAR FORK 6KJ0-060004-00001 | Skladem | 275,65 Kč | ||
| 07 | NUT M14x1.5 30204-143810 | Skladem | 43,52 Kč | ||
| 08 | REAR FORK 6KM0-060300-0BB00 | Skladem | 7 208,89 Kč | ||
| 09 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 10 | CLAMP, FRONT BRAKE HOSE A000-050015 | Skladem | 15,54 Kč | ||
| 11 | NUT M8 30200-080810 | Skladem | 29,02 Kč | ||
| 12 | BOLT M8x60 30004-080060810 | Skladem | 31,07 Kč | ||
| 13 | ADJUSTING BLOCK 6KJ0-060002-1BB00 | Skladem | 232,13 Kč | ||
| 14 | BOLT M6x14 8010-000004 | Skladem | 15,54 Kč | ||
| 15 | INNER HEX SCREW M6x12 A000-040702 | Skladem | 15,54 Kč | ||
| 16 | REAR INNER FENDER 6KM0-060007 | Skladem | |||
| 17 | FIXING BRACKET, REAR FENDER 6KM0-060410 | Skladem | |||
| 18 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 19 | Zadní tlumič 6KM0-060200-00001 | Skladem | 4 707,53 Kč | ||
| 20 | BOLT M10x1.25×45 30006-102045810 | Skladem | 46,61 Kč | ||
| 21 | CHAIN GUIDE 6KM0-060201 | Skladem | 466,09 Kč | ||
| 22 | BOLT M10x1.25×50 30006-102050810 | Skladem | 43,52 Kč | ||
