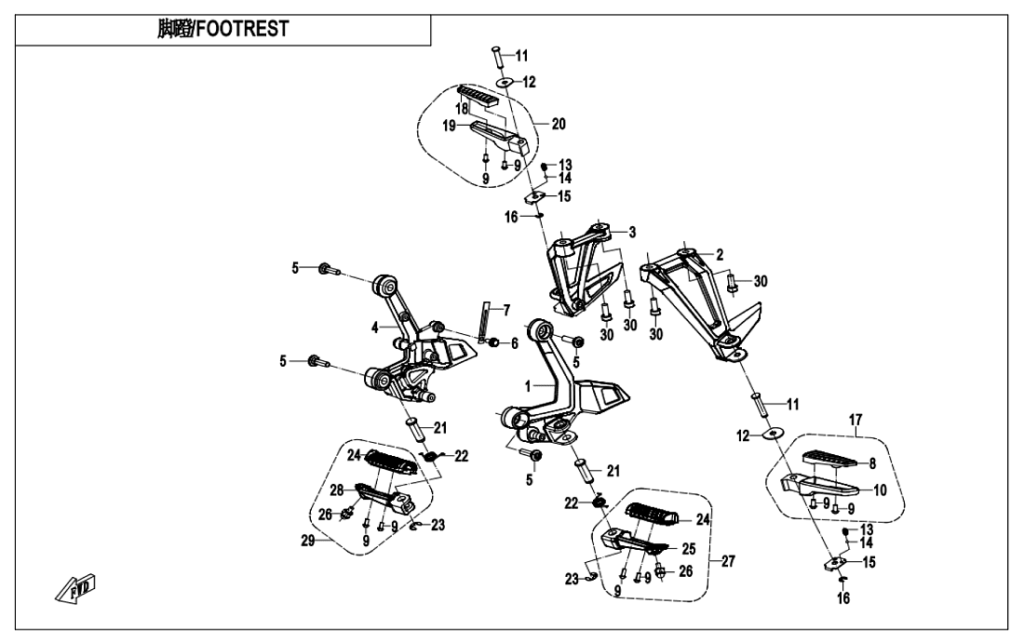

Stupačky a pedály
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | BRACKET ASSY, LH FROTN FOOTREST 6KM0-140100 | Skladem | 2 516,90 Kč | ||
| 02 | BRACKET, LH REAR FOOTREST 6KM0-140001-10000 | Skladem | 2 361,53 Kč | ||
| 03 | BRACKET, RH REAR FOOTREST 6KM0-140002-10000 | Skladem | 2 361,53 Kč | ||
| 04 | RH FRONT FOOTREST BRACKET 6KM0-140200-10000 | Skladem | 2 718,87 Kč | ||
| 05 | FLANGE BOLT, M8x25 6KM0-140103 | Skladem | 31,07 Kč | ||
| 06 | SCREW M6x12 30102-060012810 | Skladem | 15,54 Kč | ||
| 07 | WIRE CLAMP 0180-014010 | Skladem | 15,54 Kč | ||
| 08 | RUBBER, LH FOOT PEDAL 6KJ0-140132 | Skladem | 186,44 Kč | ||
| 09 | SCREW M5x14 30105-050014410 | Skladem | 15,54 Kč | ||
| 10 | REAR FOOTREST SEAT, LH 6KJ0-140151-2V600 | Není skladem | |||
| 10 | REAR FOOTREST SEAT, LH MATTE BLACK 6KJ0-140151-2B210 | Skladem | 403,95 Kč | ||
| 11 | PIN SHAFT Dia 8 A000-140142 | Skladem | 31,07 Kč | ||
| 12 | LOCATING GASKET 2 A000-140106 | Skladem | 31,07 Kč | ||
| 13 | SPRING 5190-037813 | Skladem | 15,54 Kč | ||
| 14 | STEEL BALL 5190-037814 | Skladem | 15,54 Kč | ||
| 15 | LOCATING GASKET 1 A000-140104 | Skladem | 46,61 Kč | ||
| 16 | CIRCLIP 6 30802-00605 | Skladem | 15,54 Kč | ||
| 17 | LH REAR FOOTREST 6KJ0-140150-2B200 | Není skladem | |||
| 17 | REAR FOOTREST, LH 6KJ0-140150-1V600 | Skladem | 574,85 Kč | ||
| 18 | RUBBER ASSY, RH FOOTREST 6KJ0-140142 | Skladem | 232,13 Kč | ||
| 19 | REAR FOOT PEDAL ASSY, RH 6KJ0-140161-2V600 | Není skladem | |||
| 19 | REAR FOOTREST, RH MATTE BLACK 6KJ0-140161-2B210 | Skladem | 403,95 Kč | ||
| 20 | REAR FOOTREST,RH 6KJ0-140160-1V600 | Skladem | 574,85 Kč | ||
| 20 | RH REAR FOOTREST 6KJ0-140160-2B200 | Skladem | 574,85 Kč | ||
| 21 | PIN SHAFT Dia 12 A000-140141 | Skladem | 77,68 Kč | ||
| 22 | SPRING A000-140103-20000 | Skladem | 31,07 Kč | ||
| 23 | SPLIT WASHER 30802-00903 | Skladem | 15,54 Kč | ||
| 24 | RUBBERS, FOOTREST 6KM0-140170 | Skladem | 188,60 Kč | ||
| 25 | FRONT FOOTREST SEAT, LH 6KM0-140131-1V600 | Není skladem | |||
| 25 | FRONT FOOTREST SEAT, LH MATTE BLACK 6KM0-140131-1B200 | Skladem | 493,27 Kč | ||
| 26 | LIMIT BOLT 6KM0-130123 | Skladem | 58,03 Kč | ||
| 27 | FRONT FOOT PEDAL, LH 6KM0-140130-1V601 | Skladem | 885,57 Kč | ||
| 27 | LH FRONT FOOTREST 6KM0-140130-1B200 | Skladem | 885,57 Kč | ||
| 28 | FRONT FOOTREAT SEAT, RH MATTE BLACK 6KM0-140141-1B200 | Skladem | 493,27 Kč | ||
| 28 | FRONT FOOTREST SEAT, RH 6KM0-140141-1V600 | Není skladem | |||
| 29 | RH FRONT FOOTREST 6KM0-140140-1V601 | Skladem | 885,57 Kč | ||
| 29 | RH FRONT FOOTREST 6KM0-140140-1B200 | Skladem | 885,57 Kč | ||
| 30 | SCREW M8x20 30102-080020810 | Skladem | 15,54 Kč | ||
