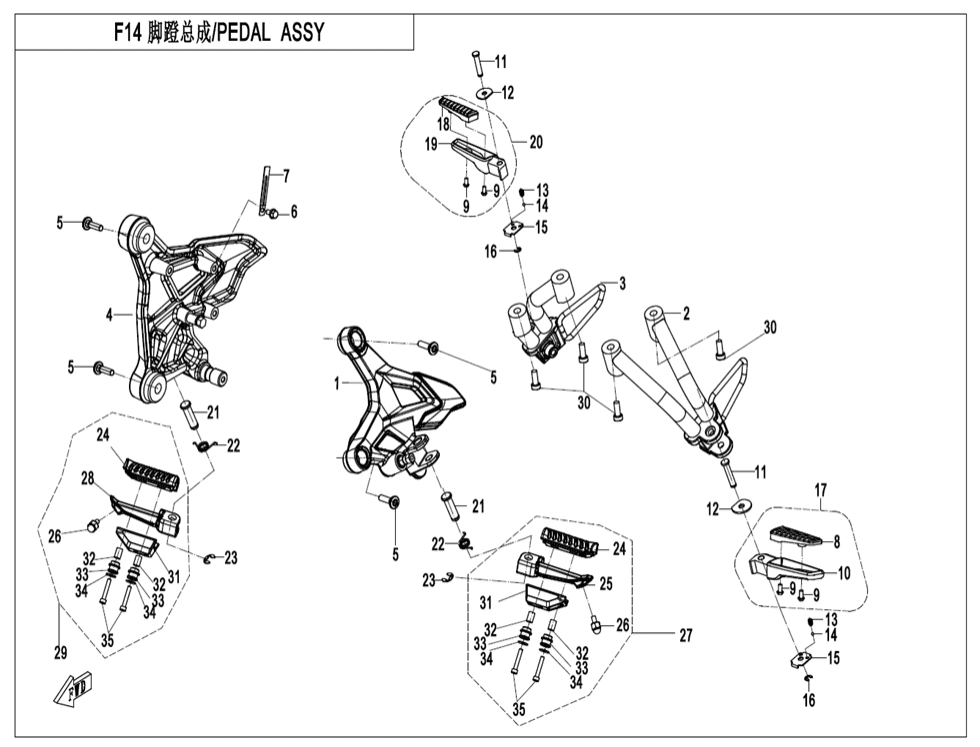

Stupačky a pedály
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | BRACKET ASSY, LH FOOTREST 6KMV-140100-B000 | Skladem | 2 159,56 Kč | ||
| 02 | BRACKET, LH REAR FOOREST 6KM#-140030-8001-0BP00 | Skladem | 1 631,32 Kč | ||
| 02 | BRACKET, LH REAR FOOREST 6KMV-140030-8100-0BP00 | Skladem | 1 289,52 Kč | ||
| 03 | BRACKET, LH REAR FOOREST 6KMV-140040-8100-0BP00 | Skladem | 1 289,52 Kč | ||
| 03 | BRACKET, RH REAR FOOTREST PEDAL 6KM#-140040-8001-0BP00 | Skladem | 1 631,32 Kč | ||
| 04 | BRACKET ASSY, RH FOOTREST 6KMV-140200-B000 | Skladem | 2 206,17 Kč | ||
| 05 | BOLT M8 A000-140107 | Skladem | 93,22 Kč | ||
| 06 | SCREW M6x12 30102-060012810 | Skladem | 15,54 Kč | ||
| 07 | WIRE CLAMP 0180-014010 | Skladem | 15,54 Kč | ||
| 08 | RUBBER, LH FOOT PEDAL 6KJ0-140132 | Skladem | 186,44 Kč | ||
| 09 | SCREW M5x14 30105-050014410 | Skladem | 15,54 Kč | ||
| 10 | LH REAR FOOTREST SEAT 6KJ0-140151-2BP00 | Skladem | 403,95 Kč | ||
| 11 | PIN SHAFT Dia 8 A000-140142 | Skladem | 31,07 Kč | ||
| 12 | LOCATING GASKET 2 A000-140106 | Skladem | 31,07 Kč | ||
| 13 | SPRING 5190-037813 | Skladem | 15,54 Kč | ||
| 14 | STEEL BALL 5190-037814 | Skladem | 15,54 Kč | ||
| 15 | LOCATING GASKET 1 A000-140104 | Skladem | 46,61 Kč | ||
| 16 | CIRCLIP 6 30802-00605 | Skladem | 15,54 Kč | ||
| 17 | LH REAR FOOTREST PEDAL 6KJ0-140150-2BP00 | Skladem | 574,85 Kč | ||
| 18 | RUBBER ASSY, RH FOOTREST 6KJ0-140142 | Skladem | 232,13 Kč | ||
| 19 | RH REAR FOOTREST SEAT 6KJ0-140161-2BP00 | Skladem | 403,95 Kč | ||
| 20 | RH REAR FOOTREST PEDAL 6KJ0-140160-2BP00 | Skladem | 574,85 Kč | ||
| 21 | PIN SHAFT Dia 12 A000-140141 | Skladem | 77,68 Kč | ||
| 22 | SPRING A000-140103-20000 | Skladem | 31,07 Kč | ||
| 23 | CIRCLIP 9 30802-00905 | Skladem | 43,52 Kč | ||
| 24 | RUBBERS, FOOTREST 6KM0-140170 | Skladem | 188,60 Kč | ||
| 25 | LH FORNT FOOTREST SEAT 6KM0-140131-1BP00 | Není skladem | |||
| 26 | LIMIT BOLT 6KM0-130123 | Skladem | 58,03 Kč | ||
| 27 | LH FRONT FOOTREST PEDAL 6KM0-140130-1BP00 | Skladem | 885,57 Kč | ||
| 28 | RH FORNT FOOTREST SEAT 6KM0-140141-1BP00 | Není skladem | |||
| 29 | RH FRONT FOOTREST PEDAL 6KM0-140140-1BP00 | Skladem | 885,57 Kč | ||
| 30 | SCREW M8x20 30102-080020810 | Skladem | 15,54 Kč | ||
| 31 | BALANCE BLOCK, FOOTREST 6KM#-140001-8001-0BP00 | Skladem | 348,19 Kč | ||
| 32 | T SHAPE BUSH ASSY 6NQ#-140801-6000 | Skladem | 31,07 Kč | ||
| 33 | DAMPER 6KMV-140001-B000 | Skladem | 31,07 Kč | ||
| 34 | SPRING WASHER 30303-060152 | Skladem | 15,54 Kč | ||
| 35 | SCREW M5x30 30102-050030860 | Skladem | 31,07 Kč | ||
