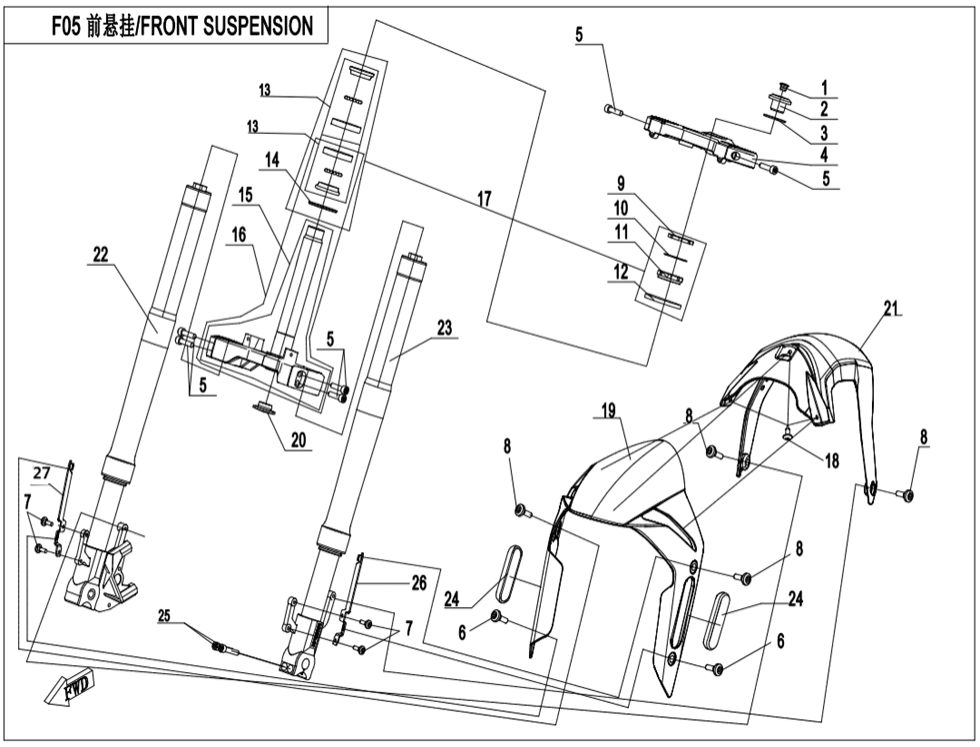

Přední zavěšení I
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | RUBBER PLUG 1 A000-050005 | Skladem | 15,54 Kč | ||
| 02 | FIXING SCREW, UPPER TRIPLE CLAMP 6NTA-050003 | Skladem | 232,13 Kč | ||
| 03 | Podložka A000-050004 | Skladem | 15,54 Kč | ||
| 04 | UPPER TRIPLE CLAMP 6KMV-050001-8102 | Skladem | 2 765,48 Kč | ||
| 05 | INNER HEX SCREW M8x30 30102-080030860 | Skladem | 31,07 Kč | ||
| 06 | INNER HEX SCREW M6x12 6KM#-040702-8000 | Skladem | 31,07 Kč | ||
| 07 | BOLT M6x12 30006-060012870 | Skladem | 15,54 Kč | ||
| 08 | MOUNTING SCREW, CHAIN GUARD 6NQ#-000205-6001 | Skladem | 29,02 Kč | ||
| 09 | LOCK NUT 1 A000-050006 | Skladem | 93,22 Kč | ||
| 10 | Podložka A000-050008 | Skladem | 15,54 Kč | ||
| 11 | LOCK NUT 2 A000-050007 | Skladem | 108,75 Kč | ||
| 12 | DUST CAP, UPPER RETAINER A000-050009 | Skladem | 31,07 Kč | ||
| 13 | STEERING BEARING ASSY A000-050100 | Skladem | 419,48 Kč | ||
| 14 | ANTI-DUST CAP, LOWER RETAINING RING A000-050400 | Skladem | 62,15 Kč | ||
| 15 | FORNT FORK AND LOWER TRIPLE CLAMP ASSY 6KJ0-050300-0BP00 | Skladem | 3 837,49 Kč | ||
| 15 | LOWER TRIPLE CLAMP, FRONT FORK PIPE 6KJ0-050300-0H300 | Skladem | 3 837,49 Kč | ||
| 16 | LOWER TRIPLE CLAMP ASSY 6KJ0-0503A0-0BP00 | Není skladem | |||
| 16 | LOWER TRIPLE CLAMP ASSY 6KJ0-0503A0-0H300 | Skladem | 4 381,26 Kč | ||
| 17 | STEERING BEARING ASSY A000-0501B0 | Skladem | 1 134,16 Kč | ||
| 18 | SELF-TAPPING SCREW ST4.2×13 30110-421130010 | Skladem | 29,02 Kč | ||
| 19 | FRONT PART, FRONT FENDER 6KM#-050009-8001-0BM00 | Skladem | 916,65 Kč | ||
| 20 | RUBBER PLUG 2 A000-050011 | Skladem | 46,61 Kč | ||
| 21 | REAR PART, FRONT FENDER 6KM#-050011-8001-0B800 | Skladem | 916,65 Kč | ||
| 22 | FRONT RH SHOCK ABSORBER 6KM#-050200-8100 | Skladem | 8 172,15 Kč | ||
| 23 | FRONT LH SHOCK ABSORBER 6KM#-050100-8100 | Skladem | 8 172,15 Kč | ||
| 24 | SIDE REFLECTOR 6KM#-050030-8100 | Skladem | 101,64 Kč | ||
| 25 | SCREW M8x40 30102-080040810 | Skladem | 15,54 Kč | ||
| 26 | LH SEAT, FRONT FENDER 6KM#-030020-8000-0B200 | Skladem | 188,60 Kč | ||
| 27 | RH SEAT, FRONT FENDER 6KM#-030030-8000-0B200 | Skladem | 139,83 Kč | ||
