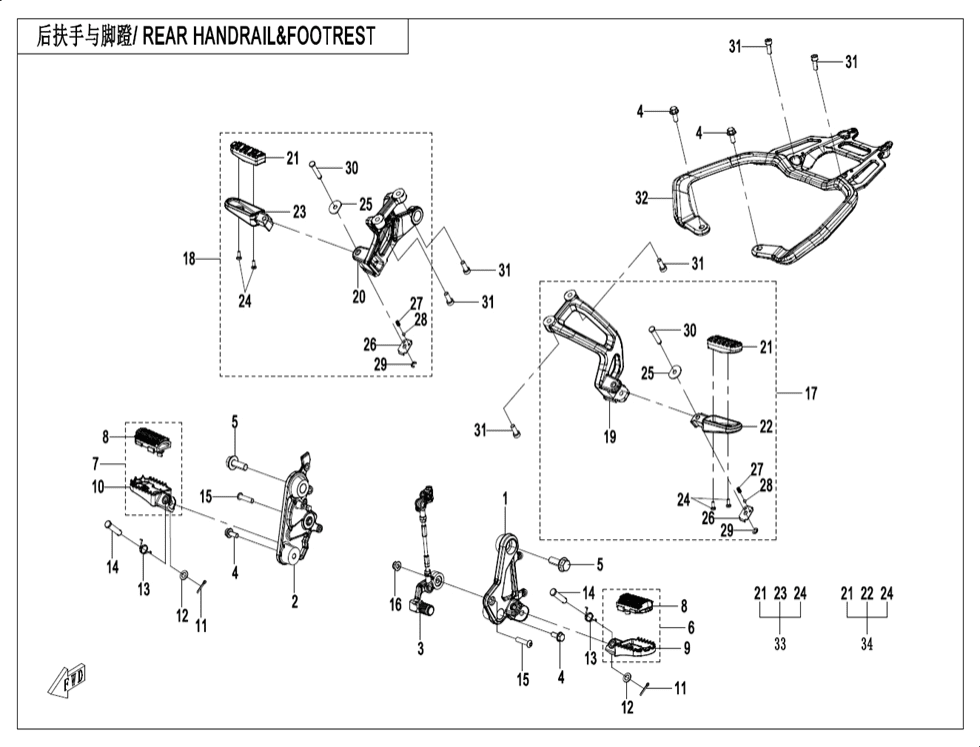

Stupačky a madla
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | BRACKET, LH FRONT FOOTREST 6AQV-140600-6000 | Skladem | 1 336,13 Kč | ||
| 2 | BRACKET ASSY, RH FRONT FOOTREST 6AQV-140700-6000 | Skladem | 1 507,03 Kč | ||
| 3 | SHIFT LEVER CONNECTING KIT 6AQV-141000-6000 | Skladem | 2 625,65 Kč | ||
| 4 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 5 | Šroub 0800-014009-00002 | Skladem | 46,61 Kč | ||
| 6 | LH FRONT FOOTREST BOARD 6AQV-140800-6000 | Skladem | 1 134,16 Kč | ||
| 7 | RH FRONT FOOTREST BOARD 6AQV-140900-6000 | Skladem | 1 134,16 Kč | ||
| 8 | FRONT FOOTREST SEAT RUBBER 6AQV-140810-6000 | Skladem | 108,75 Kč | ||
| 9 | FRONT LH FOOTREST SEAT 6AQV-140820-6000 | Skladem | 1 040,94 Kč | ||
| 10 | FRONT RH FOOTREST SEAT 6AQV-140920-6000 | Skladem | 1 040,94 Kč | ||
| 11 | COTTER PIN 30903-0322210 | Skladem | 15,54 Kč | ||
| 12 | Podložka 30300-100112 | Skladem | 15,54 Kč | ||
| 13 | SPRING 6L3V-140103-4200 | Skladem | 31,07 Kč | ||
| 14 | PIN SHAFT 6WWV-140141-5000 | Skladem | 31,07 Kč | ||
| 15 | SCREW M8x35 30121-080035860 | Skladem | 31,07 Kč | ||
| 16 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 17 | LH REAR FOOTREST 6AQV-140200-6000 | Skladem | 2 563,51 Kč | ||
| 18 | RH REAR FOOTREST 6AQV-140300-6000 | Skladem | 2 749,94 Kč | ||
| 19 | REAR LH FOOTREST SEAT 6AQV-140210-6000 | Skladem | 2 268,31 Kč | ||
| 20 | REAR RH FOOTREST SEAT 6AQV-140310-6000 | Skladem | 2 268,31 Kč | ||
| 21 | RUBBER, REAR FOOTREST BOARD 6GU#-140080-6000 | Skladem | 108,75 Kč | ||
| 22 | LH REAR FOOTREST BOARD 6GU#-140041-6000-0BP00 | Skladem | 497,16 Kč | ||
| 23 | RH REAR FOOTREST BOARD 6GU#-140051-6000-0BP00 | Skladem | 528,24 Kč | ||
| 24 | Šroub (vrut) 30105-050014470 | Skladem | 15,54 Kč | ||
| 25 | LOCATING GASKET 2 A000-140106 | Skladem | 31,07 Kč | ||
| 26 | LOCATING GASKET 1 A000-140104 | Skladem | 46,61 Kč | ||
| 27 | SPRING 5190-037813 | Skladem | 15,54 Kč | ||
| 28 | STEEL BALL 5190-037814 | Skladem | 15,54 Kč | ||
| 29 | CIRCLIP 6 30802-00603 | Skladem | 15,54 Kč | ||
| 30 | PIN SHAFT Dia 8 A000-140142 | Skladem | 31,07 Kč | ||
| 31 | SCREW M8x20 30102-080020810 | Skladem | 15,54 Kč | ||
| 32 | REAR ARMREST 6AQV-140100-6000-0VN00 | Skladem | 2 408,14 Kč | ||
| 33 | RUBBER, RH REAR FOOTREST BOARD 6GU#-1400B0-6000-0BP00 | Skladem | 543,77 Kč | ||
| 34 | RUBBER, LH REAR FOOTREST BOARD 6GU#-1400A0-6000-0BP00 | Skladem | 543,77 Kč | ||
