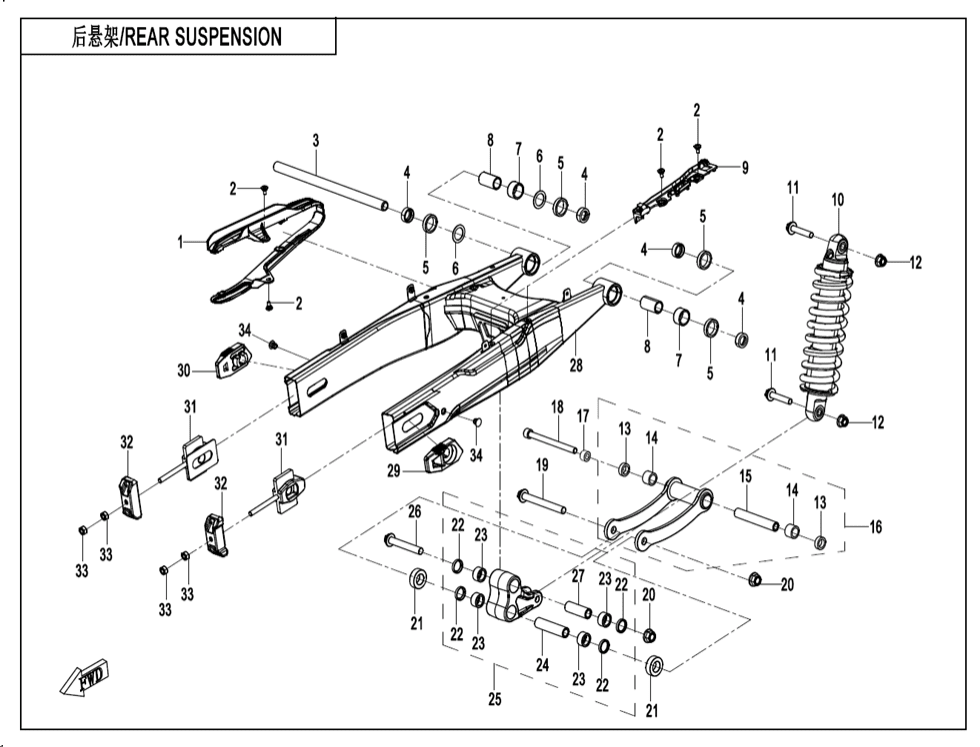

Zadní zavěšení II
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | CHAIN GUARD 6AQV-060303-1000 | Skladem | 388,41 Kč | ||
| 02 | STEPPED SCREW M5 6WWV-046502-5000 | Skladem | 15,54 Kč | ||
| 04 | OIL SEAL 6WWV-060030-5000 | Skladem | 130,57 Kč | ||
| 04 | OIL SEAL 6WWV-060030-5000-10 | Skladem | 46,61 Kč | ||
| 05 | BUSHING, REAR SWING ARM 6WWV-060002-5000 | Skladem | 62,15 Kč | ||
| 06 | WASHER, REAR SWING ARM 6WWV-060004-5000 | Skladem | 46,61 Kč | ||
| 07 | NEEDLE BEARING 30403-02280 | Skladem | 130,68 Kč | ||
| 08 | LINER, REAR SWING ARM 6WWV-060003-5000 | Skladem | 62,15 Kč | ||
| 09 | WIRE CLIP, BRAKE FLUID HOSE 6AQV-060304-1000 | Skladem | 77,68 Kč | ||
| 10 | SHOCK ABSORBER 6AQV-060100-1002-M2 | Skladem | 6 478,68 Kč | ||
| 11 | BOLT M10x50, REAR SHOCK ABSORBER 6AQV-060004-1002 | Skladem | 58,08 Kč | ||
| 12 | Matice 30204-102110 | Skladem | 15,54 Kč | ||
| 13 | OIL SEAL, TIE-ROD 6GU#-060302-6000-M1 | Není skladem | |||
| 14 | NEEDLE BEARING 30403-01680 | Není skladem | |||
| 15 | BUSHING, TIE-ROD 6AQV-060602-1000 | Není skladem | |||
| 16 | TIE ROD 6AQV-060600-1001 | Skladem | 1 165,23 Kč | ||
| 17 | SPACER, TIE ROD 6AQV-060005-1000 | Skladem | 87,12 Kč | ||
| 18 | BOLT M10x130, TIE ROD 6AQV-060009-1002 | Skladem | 101,64 Kč | ||
| 19 | Šroub 30024-122110110 | Skladem | 77,68 Kč | ||
| 20 | Matice 30204-122810 | Skladem | 15,54 Kč | ||
| 21 | RETAINER 6AQV-060504-1000 | Skladem | 46,61 Kč | ||
| 22 | OIL SEAL, A-ARM 6GU#-060204-6001-M1 | Není skladem | |||
| 23 | NEEDLE BEARING 30403-01880 | Není skladem | |||
| 24 | LOWER BUSHING, A-ARM 6AQV-060503-1000 | Není skladem | |||
| 25 | A-SWING ARM ASSY 6AQV-060500-1002 | Skladem | 3 542,30 Kč | ||
| 26 | BOLT M12x80, SWING ARM 6AQV-060008-1002 | Skladem | 101,64 Kč | ||
| 27 | UPPER BUSHING, A-ARM 6AQV-060502-1000 | Není skladem | |||
| 28 | REAR FORK ASSY 6AQV-060300-1004-0BP00 | Skladem | 5 391,13 Kč | ||
| 29 | RH CHAIN ADJUSTING DECO BLOCK 6AQV-060045-1001-0VR00 | Není skladem | |||
| 30 | LH CHAIN ADJUSTING DECO BLOCK 6AQV-060044-1001-0VR00 | Není skladem | |||
| 31 | CHAIN ADJUSTING BLOCK 6AQV-060043-1000 | Skladem | 295,19 Kč | ||
| 32 | GUARD, CHAIN ADJUSTER 6AQV-060041-1000-0BP00 | Skladem | 217,80 Kč | ||
| 33 | NUT M8 30200-080810 | Skladem | 29,02 Kč | ||
| 34 | RUBBER PLUG, CLUTCH LEVER 6KM#-100002-8000 | Skladem | 15,54 Kč | ||
