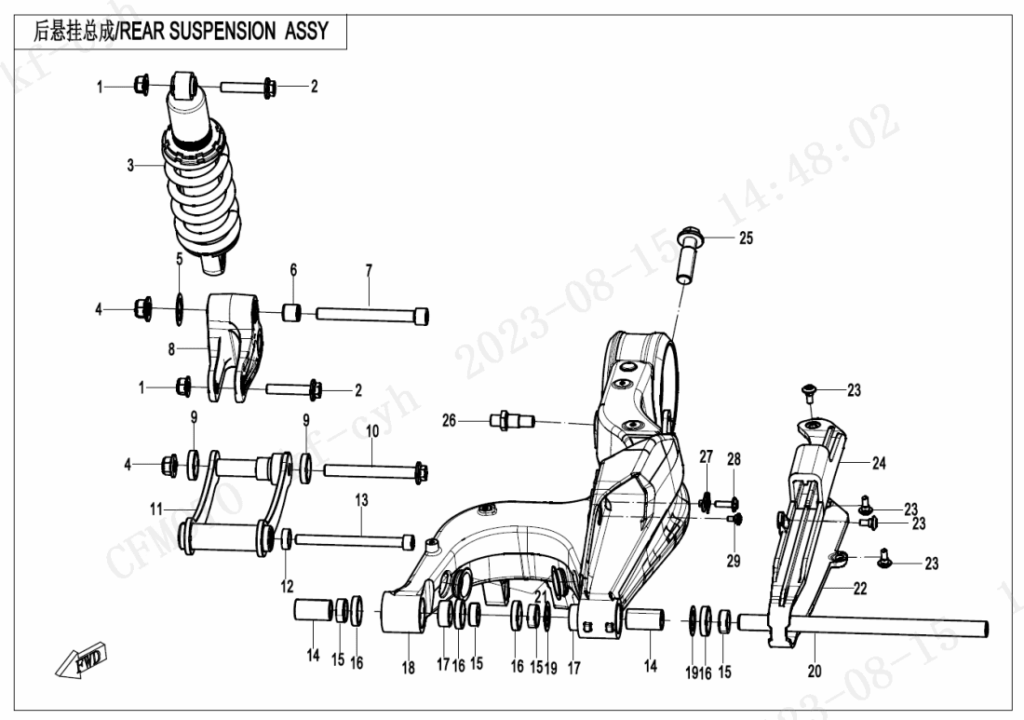

F06 REAR SUSPENSION
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | Matice 30204-102110 | Skladem | 15,54 Kč | ||
| 2 | BOLT M10x50, REAR SHOCK ABSORBER 6AQV-060004-1002 | Skladem | 58,08 Kč | ||
| 3 | SHOCK ABSORBER 6AQV-060100-1002-M2 | Skladem | 6 478,68 Kč | ||
| 4 | Matice 30204-122810 | Skladem | 15,54 Kč | ||
| 5 | Podložka 6AQV-060304-3000 | Skladem | 46,61 Kč | ||
| 6 | Pouzdro 6AQV-060302-3000 | Skladem | 77,68 Kč | ||
| 7 | A-SHAPE SWING ARM BOLT 6AQV-060303-3000 | Skladem | 101,64 Kč | ||
| 8 | A-SWING ARM ASSY 6AQV-060500-1002 | Skladem | 3 542,30 Kč | ||
| 9 | RETAINER 6AQV-060504-1000 | Skladem | 46,61 Kč | ||
| 10 | A-SHAPE SWING ARM BOLT 6AQV-060307-3000 | Skladem | 108,75 Kč | ||
| 11 | TIE ROD 6AQV-060600-1001 | Skladem | 1 165,23 Kč | ||
| 12 | SPACER, TIE ROD 6AQV-060005-1000 | Skladem | 87,12 Kč | ||
| 13 | BOLT M10x130, TIE ROD 6AQV-060009-1002 | Skladem | 101,64 Kč | ||
| 14 | LINER, REAR SWING ARM 6WWV-060003-5000 | Skladem | 62,15 Kč | ||
| 15 | BUSHING, REAR SWING ARM 6WWV-060002-5000 | Skladem | 62,15 Kč | ||
| 16 | OIL SEAL 6WWV-060030-5000-10 | Skladem | 46,61 Kč | ||
| 17 | NEEDLE BEARING HK2212 30403-02200 | Skladem | 101,56 Kč | ||
| 18 | REAR FORK 6AQV-060301-3000-0BP00 | Skladem | 15 303,35 Kč | ||
| 19 | WASHER, REAR SWING ARM 6WWV-060004-5000 | Skladem | 46,61 Kč | ||
| 21 | DUST CAP,SMALL 6NT1-060003 | Skladem | 31,07 Kč | ||
| 22 | CHAIN GUARD 1 6AQV-060305-3000 | Skladem | 450,56 Kč | ||
| 23 | INNER HEX STEPPED SCREW M6x14 6WWV-046602-5000 | Skladem | 15,54 Kč | ||
| 24 | CHAIN GUARD 2 6AQV-060306-3000 | Skladem | 372,87 Kč | ||
| 25 | BOLT 6KMV-060042-2000 | Skladem | |||
| 26 | CALIPER BRACKET LIMIT SEAT 6KMV-060011-2000 | Skladem | |||
| 27 | NUT CLIP M6 8030-040800-00001 | Skladem | 15,54 Kč | ||
| 28 | INNER HEX SCREW M6x20 6WWV-046902-5000 | Skladem | 15,54 Kč | ||
| 29 | STEPPED SCREW M5 6WWV-046502-5000 | Skladem | 15,54 Kč | ||
