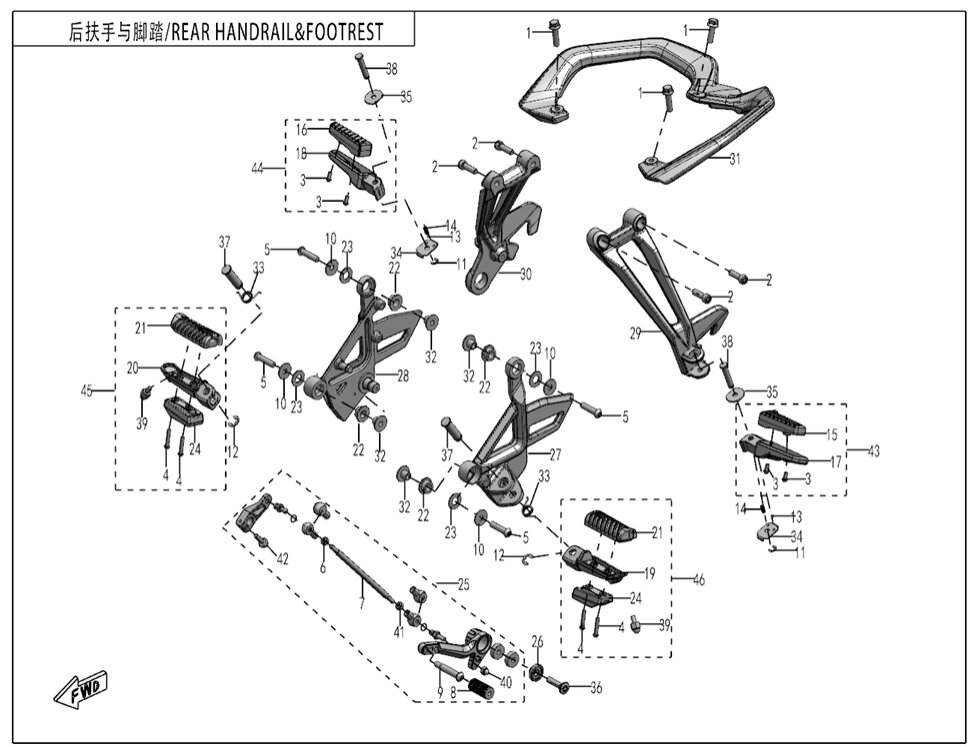

Zadní madla a stupačky
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | BOLT M8x30 30006-080030860 | Skladem | 15,54 Kč | ||
| 02 | Šroub (vrut) 30102-080025810 | Skladem | 15,54 Kč | ||
| 03 | SCREW M5x14 30105-050014410 | Skladem | 15,54 Kč | ||
| 04 | SCREW M5x25 30105-050025410 | Skladem | 15,54 Kč | ||
| 05 | SCREW M8x35 30121-080035860 | Skladem | 31,07 Kč | ||
| 06 | Matice 30200-06087L | Skladem | 15,54 Kč | ||
| 07 | CONNECTING ROD 6NQ#-140102-6000 | Skladem | 201,97 Kč | ||
| 08 | RUBBER SLEEVE, FOOT PEDAL 0700-065404 | Skladem | 77,68 Kč | ||
| 09 | BOLT, PEDAL 6NQ#-140104-6002 | Skladem | 101,56 Kč | ||
| 10 | Podložka 30309-080870 | Skladem | 15,54 Kč | ||
| 11 | CIRCLIP 6 30802-00605 | Skladem | 15,54 Kč | ||
| 12 | CIRCLIP 9 30802-00905 | Skladem | 43,52 Kč | ||
| 13 | SPRING 5190-037813 | Skladem | 15,54 Kč | ||
| 14 | STEEL BALL 5190-037814 | Skladem | 15,54 Kč | ||
| 15 | RUBBER, LH FOOT PEDAL 6KJ0-140132 | Skladem | 186,44 Kč | ||
| 16 | RUBBER ASSY, RH FOOTREST 6KJ0-140142 | Skladem | 232,13 Kč | ||
| 17 | REAR FOOTREST SEAT, LH MATTE BLACK 6KJ0-140151-2B210 | Skladem | 403,95 Kč | ||
| 18 | REAR FOOTREST, RH MATTE BLACK 6KJ0-140161-2B210 | Skladem | 403,95 Kč | ||
| 19 | FRONT FOOTREST SEAT, LH MATTE BLACK 6KM0-140131-1B200 | Skladem | 493,27 Kč | ||
| 20 | FRONT FOOTREAT SEAT, RH MATTE BLACK 6KM0-140141-1B200 | Skladem | 493,27 Kč | ||
| 21 | RUBBERS, FOOTREST 6KM0-140170 | Skladem | 188,60 Kč | ||
| 22 | RUBBER DAMPER 6NQ#-140002-6000 | Skladem | 46,61 Kč | ||
| 23 | RUBBER WASHER 6NQ#-140003-6000 | Skladem | 31,07 Kč | ||
| 24 | BALANCER, FOOTREST 6NQ#-140004-6000 | Skladem | 217,62 Kč | ||
| 25 | SHIFT LEVER ASSY 6NQ#-140100-6003 | Skladem | 2 703,33 Kč | ||
| 26 | MOUNTING BUSHING 6NQ#-140103-6002 | Není skladem | |||
| 27 | BRACKET, FRONT LEFT FOOTREST 6NQ#-140301-6001 | Skladem | 2 423,68 Kč | ||
| 28 | RH FRONT FOOTREST 6NQ#-140400-6002 | Skladem | 2 781,02 Kč | ||
| 29 | BRACKET, REAR LEFT FOOTREST 6NQ#-140501-6001 | Skladem | 2 625,65 Kč | ||
| 30 | BRACKET, REAR RIGHT FOOTREST 6NQ#-140601-6001 | Skladem | 2 625,65 Kč | ||
| 31 | REAR ARMREST 6NQ#-140701-6000-0BP00 | Není skladem | |||
| 31 | REAR ARMREST 6NQ#-140701-6000-0VN00 | Skladem | 3 231,57 Kč | ||
| 32 | T SHAPE BUSH ASSY 6NQ#-140801-6000 | Skladem | 31,07 Kč | ||
| 33 | SPRING A000-140103-20000 | Skladem | 31,07 Kč | ||
| 34 | LOCATING GASKET 1 A000-140104 | Skladem | 46,61 Kč | ||
| 35 | LOCATING GASKET 2 A000-140106 | Skladem | 31,07 Kč | ||
| 36 | BOLT M8 6KM0-140107 | Skladem | 31,07 Kč | ||
| 37 | PIN φ12, FRONT FOOTREST 6NQ0-140001 | Skladem | 130,57 Kč | ||
| 38 | PIN SHAFT Dia 8 A000-140142 | Skladem | 31,07 Kč | ||
| 39 | LIMIT BOLT A010-140123 | Skladem | 188,60 Kč | ||
| 40 | Matice 30206-060570 | Skladem | 46,61 Kč | ||
| 41 | NUT M6 30200-060810 | Skladem | 15,54 Kč | ||
| 42 | BOLT M6x20 30006-060020870 | Skladem | 31,07 Kč | ||
| 43 | REAR FOOTREST, LH MATTE BLACK 6KJ0-140150-2B210 | Skladem | 574,85 Kč | ||
| 44 | REAR FOOTREST,RH MATTE BLACK 6KJ0-140160-2B210 | Skladem | 574,85 Kč | ||
| 45 | RH FRONT FOOTREST ASSY MATTE BLACK 6NQ#-1401A0-6000-1B200 | Skladem | 792,36 Kč | ||
| 46 | FRONT FOOTREST ASSY, LH MATTE BLACK 6NQ#-1401B0-6000-1B200 | Skladem | 792,36 Kč | ||
