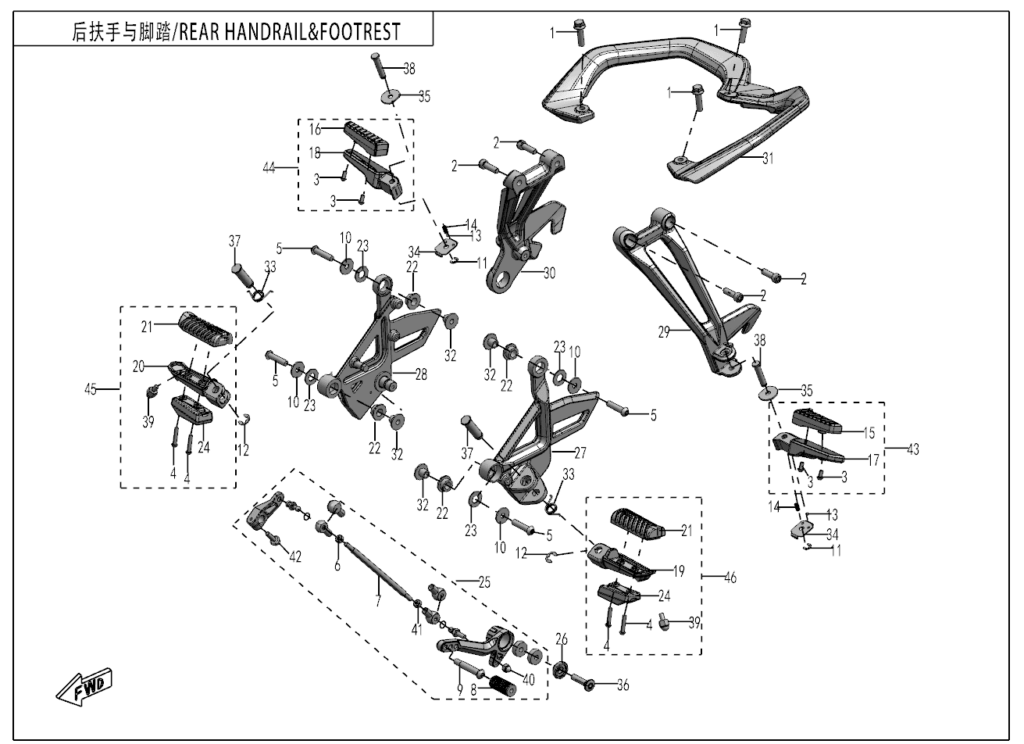

F14 REAR HANDRAIL@^FOOTREST
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | BOLT M8x30 30006-080030860 | Skladem | 15,54 Kč | ||
| 02 | Šroub (vrut) 30102-080025810 | Skladem | 15,54 Kč | ||
| 03 | SCREW M5x14 30105-050014410 | Skladem | 15,54 Kč | ||
| 04 | SCREW M5x25 30105-050025410 | Skladem | 15,54 Kč | ||
| 05 | SCREW M8x35 30121-080035860 | Skladem | 31,07 Kč | ||
| 06 | Matice 30200-06087L | Skladem | 15,54 Kč | ||
| 07 | CONNECTING ROD 6NQV-140102-6001 | Skladem | |||
| 08 | RUBBER SLEEVE, FOOT PEDAL 0700-065404 | Skladem | 77,68 Kč | ||
| 09 | BOLT, PEDAL 6NQ#-140104-6002 | Skladem | 101,56 Kč | ||
| 10 | Podložka 30309-080870 | Skladem | 15,54 Kč | ||
| 11 | CIRCLIP 6 30802-00603 | Skladem | 15,54 Kč | ||
| 12 | SPLIT WASHER 30802-00903 | Skladem | 15,54 Kč | ||
| 13 | SPRING 5190-037813 | Skladem | 15,54 Kč | ||
| 14 | STEEL BALL 5190-037814 | Skladem | 15,54 Kč | ||
| 15 | LH FOOTREST RUBBER ASSY 6KMV-140132-M100 | Skladem | 124,29 Kč | ||
| 15 | RUBBER, LH FOOT PEDAL 6KJ0-140132 | Skladem | 186,44 Kč | ||
| 16 | RUBBER ASSY, RH FOOTREST 6KJ0-140142 | Skladem | 232,13 Kč | ||
| 16 | RUBBER ASSY, RH FOOTREST 6KMV-140142-M100 | Skladem | 124,29 Kč | ||
| 17 | REAR FOOTREST SEAT, LH MATTE BLACK 6KJ0-140151-2B210 | Skladem | 403,95 Kč | ||
| 18 | REAR FOOTREST, RH MATTE BLACK 6KJ0-140161-2B210 | Skladem | 403,95 Kč | ||
| 19 | FRONT LH FOOTREST SEAT 6KMV-140131-8100-0B200 | Skladem | |||
| 20 | FRONT RH FOOTREST SEAT 6KMV-140141-8100-0B200 | Skladem | |||
| 21 | FOOTREST RUBBER 6KMV-140170-8100 | Skladem | 116,16 Kč | ||
| 22 | RUBBER DAMPER 6NQ#-140002-6000 | Skladem | 46,61 Kč | ||
| 23 | RUBBER WASHER 6NQ#-140003-6000 | Skladem | 31,07 Kč | ||
| 24 | BALANCER, FOOTREST 6NQ#-140004-6000 | Skladem | 217,62 Kč | ||
| 25 | GEARSHIFT LEVER CONNECTING PART 6NQV-140100-6004 | Skladem | 4 132,68 Kč | ||
| 26 | MOUNTING SPACER 6NQ#-140103-6003 | Skladem | 101,56 Kč | ||
| 27 | BRACKET, FRONT LEFT FOOTREST 6NQ#-140301-6001 | Skladem | 2 423,68 Kč | ||
| 28 | RH FRONT FOOTREST 6NQ#-140400-6002 | Skladem | 2 781,02 Kč | ||
| 29 | BRACKET, REAR LEFT FOOTREST 6NQ#-140501-6001 | Skladem | 2 625,65 Kč | ||
| 30 | BRACKET, REAR RIGHT FOOTREST 6NQ#-140601-6001 | Skladem | 2 625,65 Kč | ||
| 31 | REAR ARMREST 6NQ#-140701-6001-0BP00 | Skladem | |||
| 31 | REAR ARMREST 6NQ#-140701-6001-0VN00 | Skladem | |||
| 32 | T SHAPE BUSH ASSY 6NQ#-140801-6000 | Skladem | 31,07 Kč | ||
| 33 | SPRING A000-140103-20000 | Skladem | 31,07 Kč | ||
| 34 | LOCATING GASKET 1 A000-140104 | Skladem | 46,61 Kč | ||
| 35 | LOCATING GASKET 2 A000-140106 | Skladem | 31,07 Kč | ||
| 36 | BOLT M8 A000-140107 | Skladem | 93,22 Kč | ||
| 37 | PIN φ12, FRONT FOOTREST 6NQ0-140001 | Skladem | 130,57 Kč | ||
| 38 | PIN SHAFT Dia 8 A000-140142 | Skladem | 31,07 Kč | ||
| 39 | LIMIT BOLT A010-140123 | Skladem | 188,60 Kč | ||
| 40 | Matice 30206-060570 | Skladem | 46,61 Kč | ||
| 41 | Matice 30200-060870 | Není skladem | |||
| 42 | BOLT M6x20 30006-060020870 | Skladem | 31,07 Kč | ||
| 43 | REAR FOOTREST, LH MATTE BLACK 6KJ0-140150-2B210 | Skladem | 574,85 Kč | ||
| 44 | REAR FOOTREST,RH MATTE BLACK 6KJ0-140160-2B210 | Skladem | 574,85 Kč | ||
| 45 | FRONT RH FOOTREST ASSY 6KMV-1401B0-8100-0B200 | Skladem | |||
| 46 | FRONT LH FOOTREST ASSY 6KMV-1401A0-8100-0B200 | Skladem | |||
