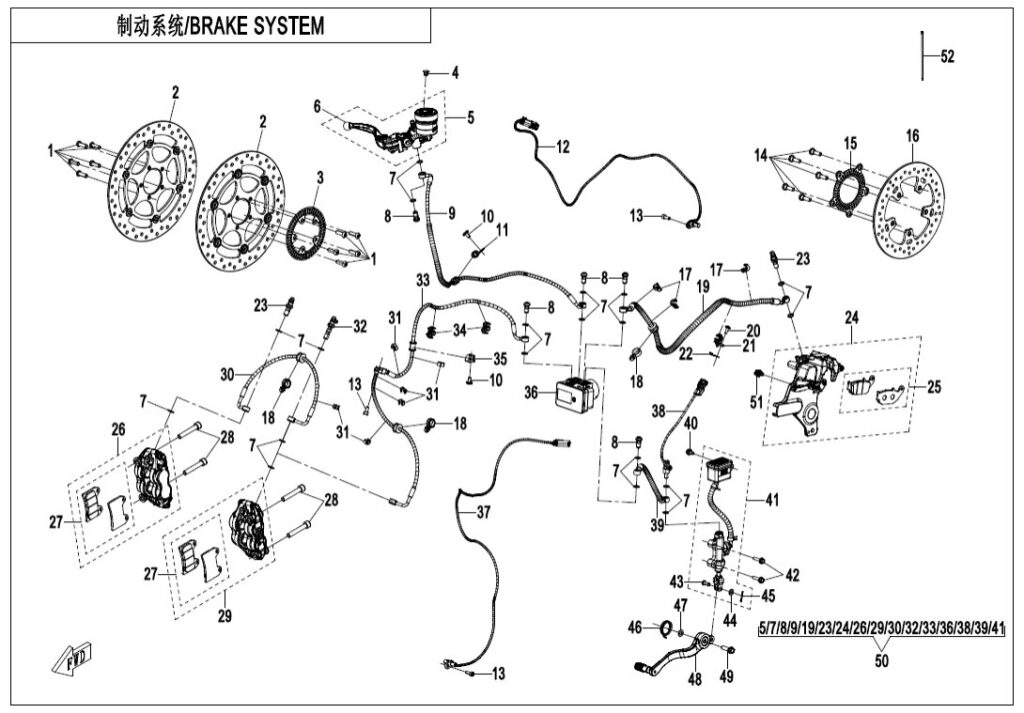

F08 BRAKE SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | Šroub (vrut) 6GUV-080001-7000 | Skladem | 29,02 Kč | ||
| 02 | FRONT BRAKE DISC ASSY 6GUV-080010-5600 | Skladem | 3 542,30 Kč | ||
| 03 | GEAR RING, FRONT WHEEL 6L30-080003 | Skladem | 304,67 Kč | ||
| 04 | RUBBER PLUG, CLUTCH LEVER 6KM#-100002-8000 | Skladem | 15,54 Kč | ||
| 05 | HAND BRAKE PUMP 6GUV-080110-3001-M1 | Skladem | 4 241,44 Kč | ||
| 05 | MASTER CYLINDER, HAND BRAKE 6GUV-080110-3002-M1 | Skladem | 4 163,76 Kč | ||
| 06 | HANDLE 6GUV-080110-3000-23 | Skladem | 419,48 Kč | ||
| 07 | Podložka A000-080102-2000 | Skladem | 15,54 Kč | ||
| 08 | Šroub 6AQV-080008-1000-M1 | Skladem | 93,22 Kč | ||
| 09 | FRONT BRAKE FLUID OUTLET HOSE 6GUV-081010-3000 | Skladem | 1 258,45 Kč | ||
| 10 | INNER HEX SCREW M6x12 6WWV-046702-5000 | Skladem | 15,54 Kč | ||
| 11 | REAR BRAKE FLUID HOSE WIRE CLIP 4 EG4V-090014-1000 | Skladem | 62,15 Kč | ||
| 12 | SPEED SENSOR 6GUV-080005-5600-M1 | Skladem | 636,99 Kč | ||
| 13 | INNER HEX SCREW M6x16 30102-060016810 | Skladem | 15,54 Kč | ||
| 14 | Šroub (vrut) A000-080001 | Skladem | 43,52 Kč | ||
| 15 | REAR GEAR RING 6GU#-090002-6001 | Skladem | 261,14 Kč | ||
| 16 | REAR BRAKE DISC 6NQV-080006-2600 | Skladem | 1 087,55 Kč | ||
| 17 | WIRE CLIP, BRAKE FLUID HOSE EAEV-080006-1000 | Skladem | 43,56 Kč | ||
| 18 | CLAMP, FRONT BRAKE HOSE A000-050015 | Skladem | 15,54 Kč | ||
| 19 | REAR BRAKE FLUID INLET HOSE 6GUV-081050-5600 | Skladem | 636,99 Kč | ||
| 20 | INNER HEX SCREW M5x14 6WWV-047102-5000 | Skladem | 15,54 Kč | ||
| 21 | WIRE CLIP 1, BRAKE FLUID HOSE 6L30-080005 | Skladem | 31,07 Kč | ||
| 22 | SPEED SENSOR CABLE CLIP 6GUV-080007-5600 | Skladem | 15,54 Kč | ||
| 23 | Šroub 6AQV-080007-1000-M1 | Skladem | 170,90 Kč | ||
| 24 | REAR BRAKE CALIPER ASSY 6GUV-081600-5600 | Skladem | 3 247,11 Kč | ||
| 25 | REAR BRAKE PAD ASSY 6KM0-0911B0 | Skladem | 652,53 Kč | ||
| 26 | FRONT RH BRAKE CALIPER 6WWV-081200-5001 | Skladem | 9 601,50 Kč | ||
| 27 | FRONT BRAKE PAD ASSY 6GUV-0811A0-6000 | Skladem | 2 540,20 Kč | ||
| 28 | SCREW M10x1.25×60 30102-102060810 | Skladem | 31,07 Kč | ||
| 29 | FRONT LH BRAKE CALIPER ASSY 6GUV-081100-6002 | Skladem | 9 601,50 Kč | ||
| 30 | FRONT BRAKE LOWER FLUID HOSE 6GUV-081030-3000 | Skladem | 1 040,94 Kč | ||
| 31 | CLIP, BRAKE HOSE 6KJ0-080003-00001 | Skladem | 31,07 Kč | ||
| 32 | BANJO BOLT, LONG 6WWV-080006-5001-M1 | Skladem | 279,66 Kč | ||
| 33 | FRONT BRAKE FLUID INLET HOSE 6GUV-081020-3000 | Skladem | 2 175,10 Kč | ||
| 34 | WIRE CLIP 2, BRAKE FLUID HOSE 6L30-080006 | Skladem | 31,07 Kč | ||
| 35 | WIRE CLIP, FLUID INLET HOSE 6AQV-081601-1002 | Skladem | 46,61 Kč | ||
| 36 | ABS CONTROLLER 6GUV-081500-3001-M1 | Skladem | 14 402,24 Kč | ||
| 36 | ABS CONTROLLER 6GUV-081500-3002-M1 | Skladem | 14 914,94 Kč | ||
| 36 | ABS CONTROLLER 6GUV-081500-3003-M1 | Skladem | 12 258,22 Kč | ||
| 37 | SPEED SENSOR FA8V-080004-1500-M1 | Skladem | 761,28 Kč | ||
| 38 | REAR BRAKE LIGHT SWITCH 6GUV-081070-5000-M1 | Skladem | 1 118,62 Kč | ||
| 39 | REAR BRAKE FLUID OUTLET HOSE 6GUV-081040-5600 | Skladem | 450,56 Kč | ||
| 40 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 41 | REAR BRAKE MASTER CYLINDER ASSY 6GUV-081300-5600-M1 | Skladem | 1 584,71 Kč | ||
| 42 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 43 | PIN SHAFT 6AQV-081410-1000-28 | Skladem | 46,61 Kč | ||
| 44 | WASHER 6AQV-081410-1000-29 | Skladem | 31,07 Kč | ||
| 45 | COTTER PIN 6AQV-081410-1000-27 | Skladem | 77,68 Kč | ||
| 46 | SPRING 6AQV-080400-1000 | Skladem | 31,07 Kč | ||
| 47 | Podložka 30306-080112 | Skladem | 15,54 Kč | ||
| 48 | REAR BRAKE PEDAL ASSY 6GUV-081400-3000 | Skladem | 1 196,30 Kč | ||
| 49 | BOLT M8*28 0JYA-062104 | Skladem | 43,52 Kč | ||
| 50 | MAB HYDRAULIC BRAKE ASSY 6GUV-081000-3001 | Skladem | |||
| 50 | MAB HYDRAULIC BRAKE ASSY 6GUV-081000-3002 | Skladem | |||
| 50 | MAB HYDRAULIC BRAKE ASSY 6GUV-081000-3003 | Skladem | |||
| 50 | MAB HYDRAULIC RRAKE ASSY 6GUV-081000-3004 | Skladem | |||
| 51 | CLIP CFCV-150001-2000-M1 | Skladem | 15,54 Kč | ||
| 52 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
