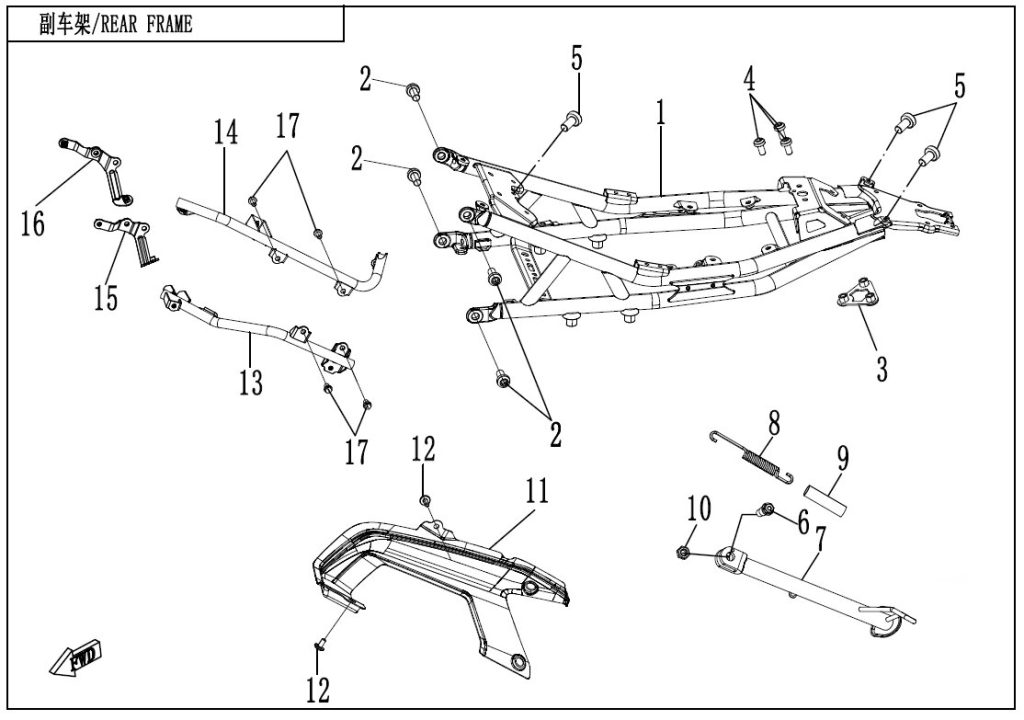

F03-2 REAR FRAME
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | SUB-FRAME ASSY 6GUV-032000-5604 | Skladem | 5 732,93 Kč | ||
| 2 | BOLT M10x22 6L30-030092 | Skladem | 31,07 Kč | ||
| 3 | REAR FENDER CONNECTING SEAT 6GUV-030150-5600 | Skladem | 139,83 Kč | ||
| 4 | INNER HEX SCREW M8x16 6WWV-030013-5000 | Skladem | 31,07 Kč | ||
| 5 | INNER HEX SCREW M5x14 6WWV-047102-5000 | Skladem | 15,54 Kč | ||
| 6 | BOLT, SIDE STAND A000-030006 | Skladem | 62,15 Kč | ||
| 7 | SIDE STAND ASSY 6GUV-030400-5600-0BP00 | Skladem | 435,02 Kč | ||
| 8 | SPRING, SIDE BRAKCET 6L30-030050 | Skladem | 139,83 Kč | ||
| 9 | SPRING SLEEVE, SIDE BRACKET 6L30-030071-10000 | Skladem | 46,61 Kč | ||
| 10 | NUT M10x1.25 30208-102010 | Skladem | 15,54 Kč | ||
| 11 | DEFLECTOR 6GUV-030090-5600 | Skladem | 2 423,68 Kč | ||
| 12 | INNER HEX SCREW M6x12 6WWV-046702-5000 | Skladem | 15,54 Kč | ||
| 13 | LH PANEL BRACKET ASSY 6GUV-030130-5600 | Skladem | 201,97 Kč | ||
| 14 | RH PANEL RH BRACKET ASSY 6GUV-030140-5600 | Skladem | 233,05 Kč | ||
| 15 | LH PANEL BRACKET 6GUV-030013-5600 | Skladem | 46,61 Kč | ||
| 16 | RH PANEL BRACKET 6GUV-030014-5600 | Skladem | 46,61 Kč | ||
| 17 | BOLT M6x12 0010-021019-0010 | Skladem | 15,54 Kč | ||
