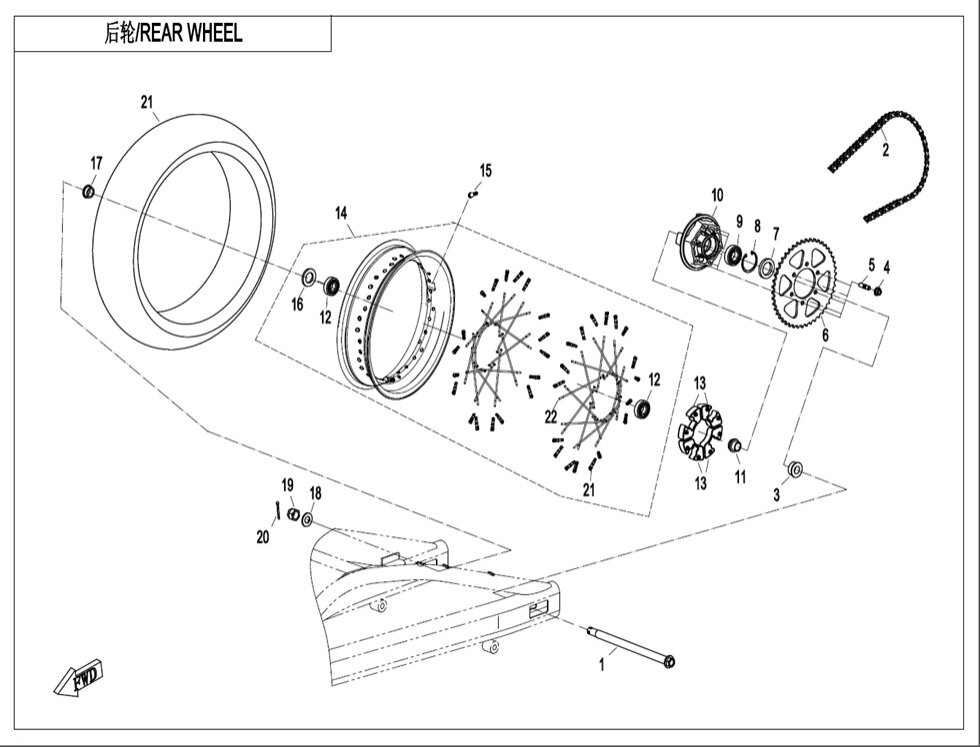

Zadní kolo
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | REAR WHEEL SHAFT 6L30-110001 | Skladem | 1 475,96 Kč | ||
| 02 | CHAIN 3120914 | Skladem | 2 790,33 Kč | ||
| 03 | SHAFT SLEEVE(LH), REAR WHEEL A000-110002 | Skladem | 232,13 Kč | ||
| 04 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 05 | STUD, AM10x1.25×25 30020-102025410 | Skladem | 46,61 Kč | ||
| 06 | REAR SPROCKET 6GUV-110004-6000 | Skladem | 1 413,81 Kč | ||
| 07 | OIL SEAL, FB35x52x8 30501-035800N | Skladem | 62,15 Kč | ||
| 08 | CIRCLIP FOR HOLE 52 30800-05205 | Skladem | 31,07 Kč | ||
| 09 | BEARING, 6205-2RS 30400-02503 | Skladem | 186,44 Kč | ||
| 10 | SPROCKET SEAT 6GU#-110002-6000 | Skladem | 2 252,78 Kč | ||
| 11 | BUSHING, SPROCKET SEAT 6GU#-110003-6000 | Skladem | 217,62 Kč | ||
| 12 | BEARING, 6204-RS 30400-02001 | Skladem | 174,09 Kč | ||
| 13 | DAMPER, SPROCKET 6L30-110003 | Skladem | 108,75 Kč | ||
| 14 | REAR RIM ASSY 6GUV-110200-8000 | Není skladem | 24 037,42 Kč | ||
| 15 | VALVE, INFLATION 5190-070030-1000 | Skladem | 43,52 Kč | ||
| 16 | OIL SEAL 30501-028800N | Skladem | 87,05 Kč | ||
| 17 | WASHER , REAR WHEEL AXLE 6NT1-110003 | Skladem | 139,83 Kč | ||
| 18 | WASHER 18, REAR WHEEL AXLE A000-110009 | Skladem | 31,07 Kč | ||
| 19 | NUT, REAR WHEEL A000-110011 | Skladem | 116,06 Kč | ||
| 20 | COTTER PIN 30903-0403510 | Skladem | 15,54 Kč | ||
| 21 | REAR TIRE 30705-1768 | Není skladem | |||
| 22 | REAR RIM CAP 6GUV-110200-8000-21 | Skladem | 699,14 Kč | ||
| 23 | REAR RIM SPOKES 6GUV-110202-8000 | Skladem | 248,58 Kč | ||
