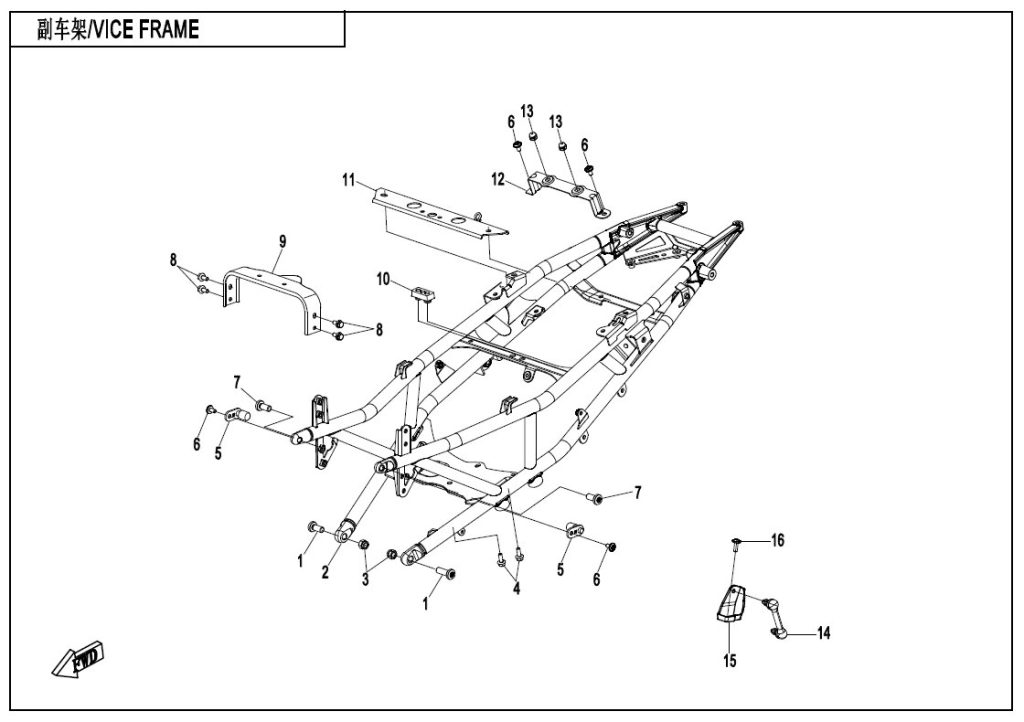

F03-3 REAR FRAME
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | INNER HEX SCREW M10x30 6WWV-030017-5000 | Skladem | 15,54 Kč | ||
| 2 | SUB-FRAME ASSY 6WWV-032000-5D00-0BP00 | Skladem | 13 905,08 Kč | ||
| 3 | SELF LOCKING NUT M10 CU WS=14 K-54310086100 | Skladem | 248,58 Kč | ||
| 4 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 5 | AIR FILTER MOUNTING ASSY 6WWV-030070-5000 | Skladem | 101,64 Kč | ||
| 6 | INNER HEX SCREW M6x12 6WWV-046702-5000 | Skladem | 15,54 Kč | ||
| 7 | INNER_HEX_SCREW_M10x22 6WWV-030016-5001 | Skladem | 29,04 Kč | ||
| 8 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 9 | REAR BRACKET, FUEL TANK 6WWV-030010-5000 | Skladem | 341,80 Kč | ||
| 10 | RUBBER DAMPER 6090-130012 | Skladem | 15,54 Kč | ||
| 11 | BRACKET, SEAT LOCK 6WWV-030020-5000 | Skladem | 295,19 Kč | ||
| 12 | BRACKET, BATTERY 6WWV-030004-5000 | Skladem | 159,59 Kč | ||
| 13 | RUBBER 6WWV-045801-5000 | Skladem | 15,54 Kč | ||
| 14 | REAR TIE ROD ASSY 6WWV-060011-5D01-M1 | Skladem | 792,36 Kč | ||
| 15 | ANGLE SENSOR RETAINING BRACKET ASSY 6WWV-041031-5D01 | Skladem | 807,89 Kč | ||
| 16 | INNER HEX SCREW M5x14 6WWV-047102-5000 | Skladem | 15,54 Kč | ||
