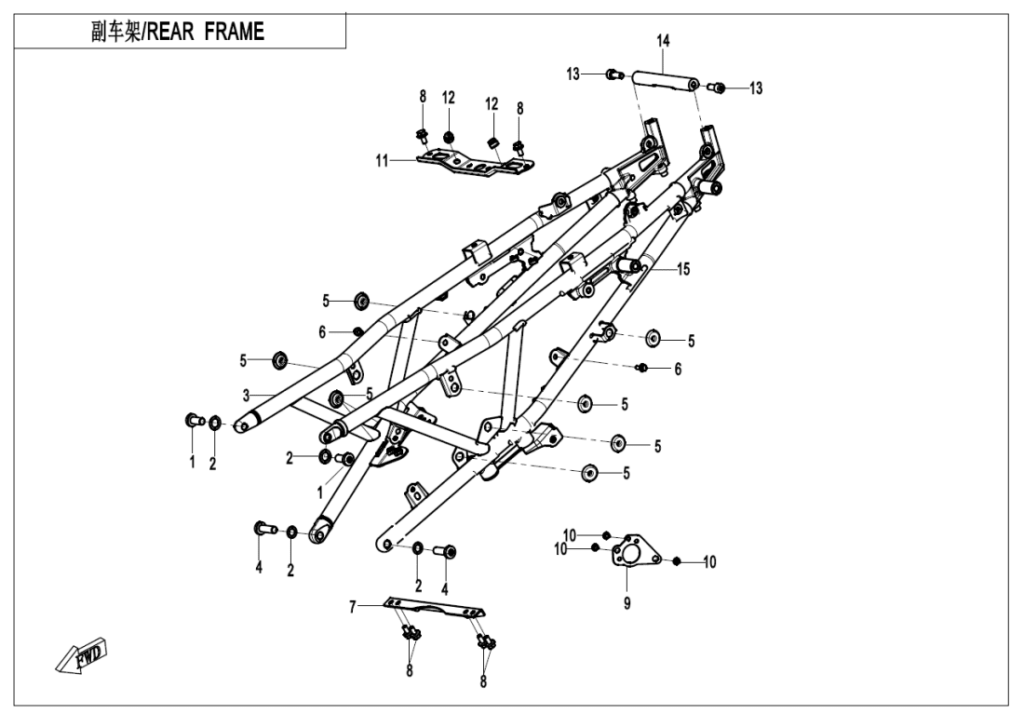

F03-2 REAR FRAME
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | INNER_HEX_SCREW_M10x22 6WWV-030016-5001 | Skladem | 29,04 Kč | ||
| 2 | NORDLOCK_WASHER_M10 6WWV-030023-5000 | Skladem | 145,20 Kč | ||
| 3 | RH REAR FRAME ASSY 6WWV-032200-8000-0BP00 | Skladem | 9 213,09 Kč | ||
| 4 | INNER HEX SCREW M10x30 6WWV-030017-5000 | Skladem | 15,54 Kč | ||
| 5 | M6 RUBBER SLEEVE 6KMV-041112-3000 | Skladem | 15,54 Kč | ||
| 6 | Šroub 30006-050012810 | Skladem | 15,54 Kč | ||
| 7 | AIR FILTER LOWER BRACKET 6WWV-030030-8000 | Skladem | 108,75 Kč | ||
| 8 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 9 | SEAT LOCK ADAPTER BRACKET 6WWV-030008-8000 | Skladem | 15,54 Kč | ||
| 10 | SELF-TAPPING SCREW ST4.2×13 30110-421130010 | Skladem | 29,02 Kč | ||
| 11 | SEAT LOCK BRACKET 6WWV-030040-8000 | Skladem | 108,75 Kč | ||
| 12 | RUBBER 6WWV-045801-5000 | Skladem | 15,54 Kč | ||
| 13 | SCREW M8x20 30102-080020810 | Skladem | 15,54 Kč | ||
| 14 | REAR FRAME PIPE 6WWV-030002-8000 | Skladem | 233,05 Kč | ||
| 15 | LH REAR FRAME ASSY 6WWV-032100-8000-0BP00 | Skladem | 9 213,09 Kč | ||
