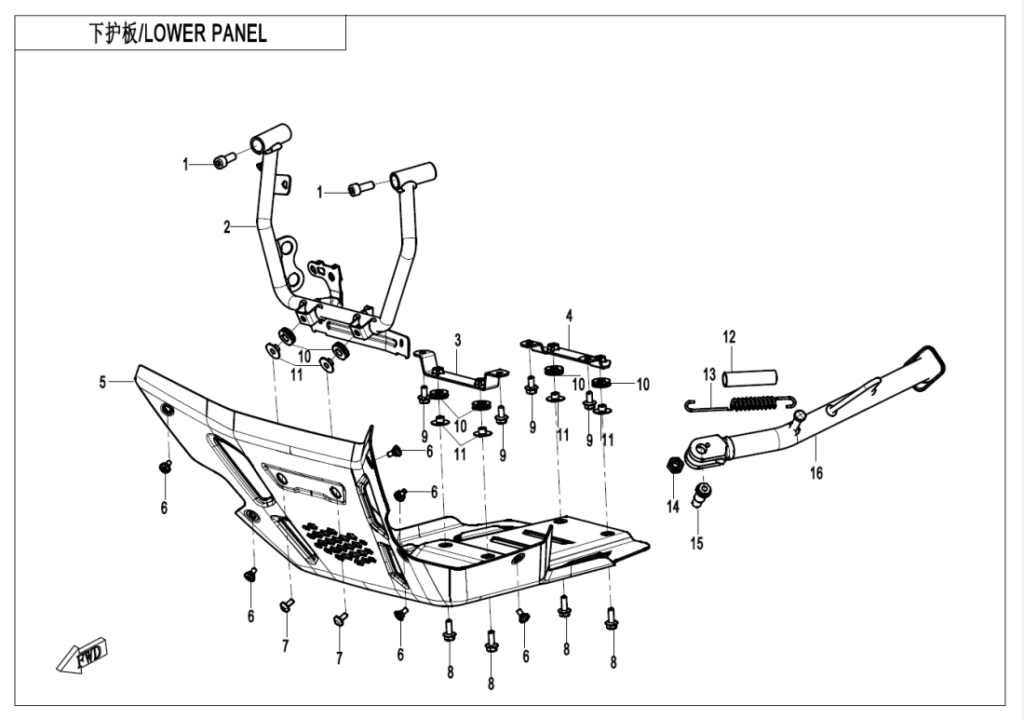

F03-3 LOWER PANEL
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | SCREW M8x20 30102-080020810 | Skladem | 15,54 Kč | ||
| 2 | FRONT PANEL BRACKET ASSY 6WWV-000020-8001 | Skladem | 761,28 Kč | ||
| 3 | FRONT BRACKET ASSY, GUARD 6WWV-000130-5000 | Skladem | 116,06 Kč | ||
| 4 | LOWER PANEL BRACKET 6WWV-000010-8000 | Skladem | 62,15 Kč | ||
| 5 | ENGINE LOWER PANEL 6WWV-000002-8000 | Skladem | 5 127,01 Kč | ||
| 6 | STEPPED SCREW M5 6WWV-046502-5000 | Skladem | 15,54 Kč | ||
| 7 | INNER HEX SCREW M6x16 6WWV-046802-5000 | Skladem | 15,54 Kč | ||
| 8 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 9 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 10 | RUBBER MAT, HEADLIGHT 9010-160101 | Skladem | 15,54 Kč | ||
| 11 | STEEL COLLAR，HEADLIGHT 9010-160102 | Skladem | 15,54 Kč | ||
| 12 | SPRING SLEEVE, SIDE BRACKET 6L30-030071-10000 | Skladem | 46,61 Kč | ||
| 13 | SPRING, SIDE BRACKET 6L32-030050 | Skladem | 155,36 Kč | ||
| 14 | Matice 30208-102810 | Skladem | 15,54 Kč | ||
| 15 | BOLT, SIDE STAND A000-030006 | Skladem | 62,15 Kč | ||
| 16 | SIDE STAND ASSY 6WWV-030200-8000 | Skladem | 1 180,77 Kč | ||
| 16 | SIDE STAND ASSY 6WWV-030200-8000-10 | Skladem | 1 118,62 Kč | ||
