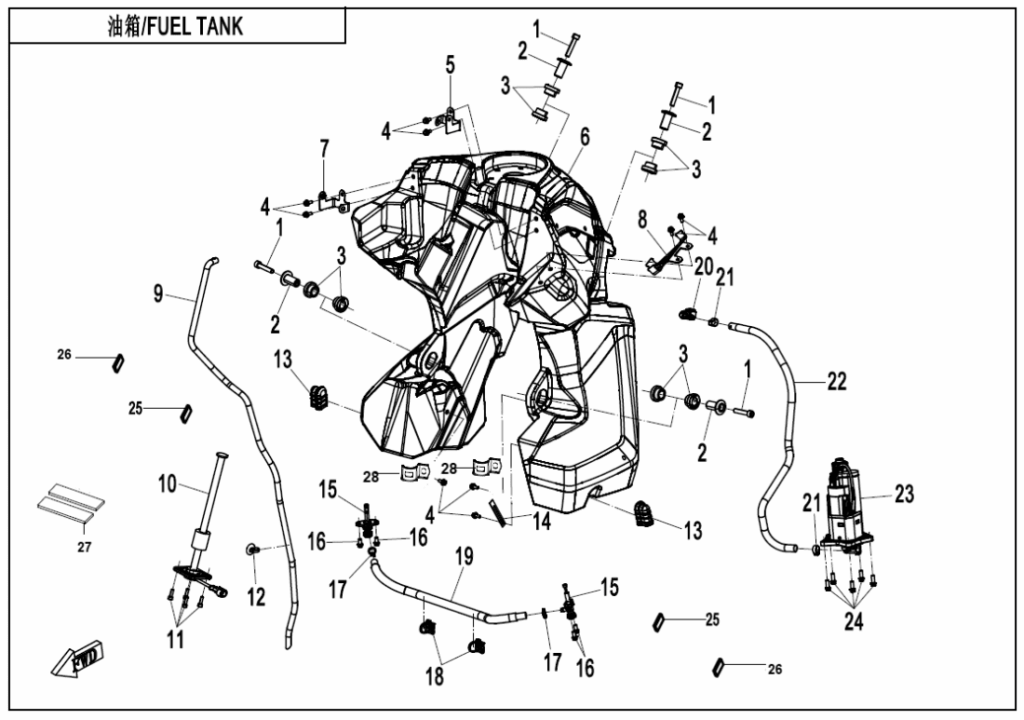

F12 FUEL TANK
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | SCREW M8x40 30102-080040810 | Skladem | 15,54 Kč | ||
| 02 | BEARING SLEEVE, EXTERNAL C61007060000 | Skladem | 341,80 Kč | ||
| 03 | COLLAR BUSHING, FRONT TANK HOLDER C61007065000 | Skladem | 31,07 Kč | ||
| 04 | Matice 30006-050010810 | Skladem | 15,54 Kč | ||
| 05 | DASHBOARD COVER PLATE REAR LH BRACKET 6WWV-030180-8001 | Skladem | 46,61 Kč | ||
| 06 | FUEL TANK ASSY 6WWV-121000-8001-0BV00 | Skladem | 36 390,75 Kč | ||
| 07 | DASHBOARD COVER PLATE REAR RH BRACKET 6WWV-030190-8001 | Skladem | 46,61 Kč | ||
| 08 | BCM BRACKET 6WWV-030160-8000 | Skladem | 62,15 Kč | ||
| 09 | FUEL TANK OVERFLOW PIPE 6WWV-120001-8000 | Skladem | 124,29 Kč | ||
| 10 | FUEL LEVEL SENSOR 6WWV-170200-8001-M1 | Skladem | 2 035,27 Kč | ||
| 11 | AH SCREW DIN0912-M 5X16 C0009120501600 | Skladem | 15,54 Kč | ||
| 12 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 13 | TANK RUBBER C60307020000 | Skladem | 279,66 Kč | ||
| 14 | WIRE CLAMP 0180-014010 | Skladem | 15,54 Kč | ||
| 15 | FUEL COCK CPL. C58507003200 | Skladem | 326,26 Kč | ||
| 16 | HH COLLAR SCREW M6X12 TX30 C0000250601200 | Skladem | 233,05 Kč | ||
| 17 | CLAMP YDNAC 10128 12MM K-58031005000 | Skladem | 326,26 Kč | ||
| 18 | TIE BAND ASSY 6WWV-120050-8000 | Skladem | 15,54 Kč | ||
| 19 | FUEL TANK CONNECTING PIPE ASSY 6WWV-120020-8000 | Skladem | 978,79 Kč | ||
| 20 | QUICK JOINT 6090-120210 | Skladem | 217,62 Kč | ||
| 21 | CLAMP Dia 14.5A 6070-120400 | Skladem | 43,52 Kč | ||
| 22 | HIGH-PRESSURE FUEL HOSE ASSY 6WWV-120010-8001 | Skladem | 1 165,23 Kč | ||
| 23 | FUEL PUMP C63507088100 | Skladem | 3 961,78 Kč | ||
| 24 | HH COLLAR SCREW M6X16 TX30 C0000250601600 | Skladem | 15,54 Kč | ||
| 25 | SPONGE MAT 6GU#-040072-6000 | Skladem | 31,07 Kč | ||
| 26 | SPONGE STRAP 2 6KM#-040076-8000 | Skladem | 15,54 Kč | ||
| 27 | SPONGE PAD, FUEL TANK 6WWV-040078-8000 | Skladem | 15,54 Kč | ||
| 28 | CLIP 6WWV-030080-8000 | Skladem | 31,07 Kč | ||
