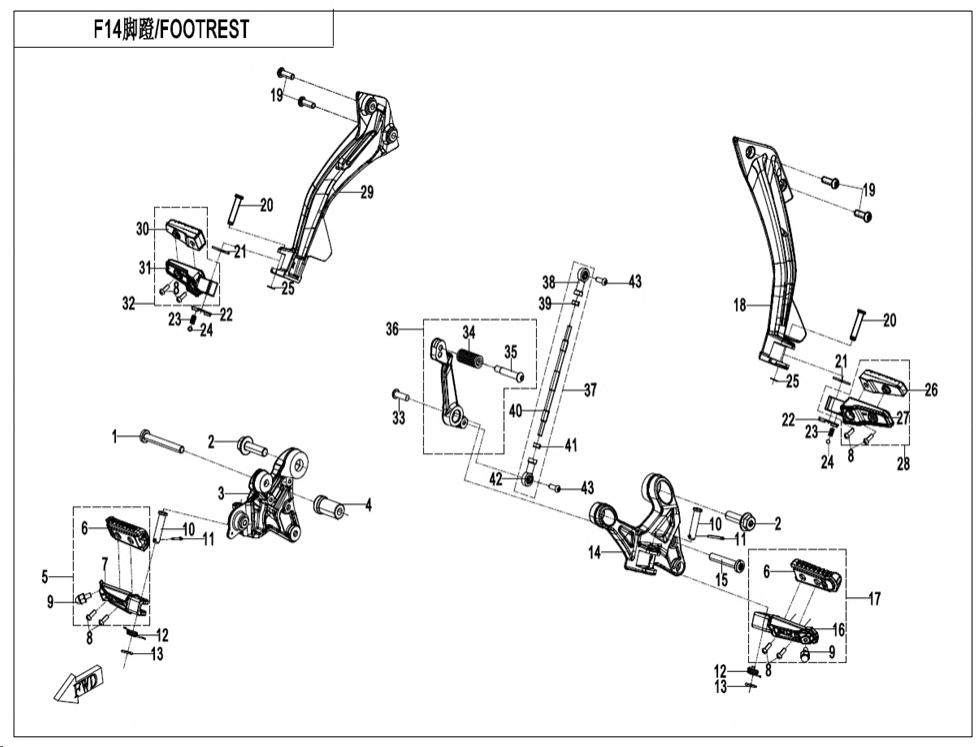

Stupačky
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | SCREW M10x80 C0000351008000S | Skladem | 77,68 Kč | ||
| 2 | BOLT, FRONT FOOTREST BRACKET C90704038000 | Skladem | 108,75 Kč | ||
| 3 | BRACKET, RH FRONT FOOTREST 6KWV-140700-1000-10 | Skladem | 1 942,05 Kč | ||
| 3 | RH FRONT FOOTREST BRACKET 6KWV-140700-1000 | Skladem | 1 942,05 Kč | ||
| 4 | BUSHING, FRONT RH FOOTREST BRACKET C90703039001C1 | Skladem | 357,34 Kč | ||
| 5 | BRACKET ASSY, RH FRONT FOOTREST 6KWV-140500-1000-0VR00 | Skladem | 403,95 Kč | ||
| 5 | RH FRONT FOOTREST SEAT ASSY 6KWV-140900-1000-0BP00 | Skladem | 403,95 Kč | ||
| 6 | FOOTREST RUBBER 6KMV-140170-8100 | Skladem | 116,16 Kč | ||
| 7 | RH FRONT FOOTREST SEAT 6KWV-140141-1000-0BP00 | Skladem | 326,26 Kč | ||
| 7 | RH FRONT FOOTREST SEAT 6KWV-140141-1000-0VR00 | Skladem | 326,26 Kč | ||
| 8 | SCREW M5x14 30105-050014410 | Skladem | 15,54 Kč | ||
| 8 | Šroub (vrut) 30105-050014470 | Skladem | 15,54 Kč | ||
| 9 | LIMIT BOLT 6GU#-140202-6000 | Skladem | 31,07 Kč | ||
| 9 | LIMIT BOLT 6KM0-130123 | Skladem | 58,03 Kč | ||
| 10 | PIN SHAFT 6WWV-140141-5000 | Skladem | 31,07 Kč | ||
| 11 | COTTER PIN 30903-0322210 | Skladem | 15,54 Kč | ||
| 12 | SPRING A000-140103-20000 | Skladem | 31,07 Kč | ||
| 13 | Podložka 30300-100112 | Skladem | 15,54 Kč | ||
| 14 | BRACKET, LH FRONT FOOTREST 6KWV-140600-1000-10 | Skladem | 1 942,05 Kč | ||
| 14 | LH FRONT FOOTREST BRACKET 6KWV-140600-1000 | Skladem | 1 942,05 Kč | ||
| 15 | SCREW M10x65 C0000351006500S | Není skladem | |||
| 16 | LH FRONT FOOTREST SEAT 6KWV-140131-1000-0VR00 | Skladem | 326,26 Kč | ||
| 16 | LH FRONT FOOTREST SEAT 6KWV-140131-1000-0BP00 | Skladem | 326,26 Kč | ||
| 17 | BRACKET ASSY, LH FRONT FOOTREST 6KWV-140400-1000-0VR00 | Skladem | 403,95 Kč | ||
| 17 | LH FRONT FOOTREST SEAT ASSY 6KWV-140800-1000-0BP00 | Skladem | 403,95 Kč | ||
| 18 | BRACKET, LH REAR FOOTREST 6KWV-140200-1000-10 | Skladem | 2 019,73 Kč | ||
| 18 | LH FRONT FOOTREST BRACKET 6KWV-140200-1000 | Skladem | 2 019,73 Kč | ||
| 19 | FIXED BOLT, BRAKE DISC C90709062000 | Skladem | 46,61 Kč | ||
| 20 | PIN SHAFT Dia 8 A000-140142 | Skladem | 31,07 Kč | ||
| 21 | LOCATING GASKET 2 A000-140106 | Skladem | 31,07 Kč | ||
| 22 | LOCATING GASKET 1 A000-140104 | Skladem | 46,61 Kč | ||
| 23 | SPRING 5190-037813 | Skladem | 15,54 Kč | ||
| 24 | STEEL BALL 5190-037814 | Skladem | 15,54 Kč | ||
| 25 | CIRCLIP 6 30802-00603 | Skladem | 15,54 Kč | ||
| 26 | RUBBER, LH FOOT PEDAL 6KJ0-140132 | Skladem | 186,44 Kč | ||
| 27 | LH REAR FOOTREST BRACKET 6KJV-140151-8000-0VR00 | Skladem | 776,82 Kč | ||
| 27 | LH REAR FOOTREST BRACKET 6KJV-140151-8000-0BP00 | Skladem | 403,95 Kč | ||
| 28 | LH REAR FOOTREST ASSY 6KJV-140150-8000-0VR00 | Není skladem | 1 134,16 Kč | ||
| 28 | LH REAR FOOTREST ASSY 6KJV-140150-8000-0BP00 | Skladem | 605,92 Kč | ||
| 29 | BRACKET, RH REAR FOOTREST 6KWV-140300-1000-10 | Skladem | 2 019,73 Kč | ||
| 29 | RH FRONT FOOTREST BRACKET 6KWV-140300-1000 | Skladem | 2 019,73 Kč | ||
| 30 | RUBBER ASSY, RH FOOTREST 6KJ0-140142 | Skladem | 232,13 Kč | ||
| 31 | RH REAR FOOTREST BRACKET 6KJV-140161-8000-0BP00 | Skladem | 403,95 Kč | ||
| 31 | RH REAR FOOTREST BRACKET 6KJV-140161-8000-0VR00 | Skladem | 776,82 Kč | ||
| 32 | RH REAR FOOTREST ASSY 6KJV-140160-8000-0BP00 | Skladem | 605,92 Kč | ||
| 32 | RH REAR FOOTREST ASSY 6KJV-140160-8000-0VR00 | Není skladem | 1 134,16 Kč | ||
| 33 | SCREW M8x25 30121-080025160 | Skladem | 31,07 Kč | ||
| 34 | RUBBER SLEEVE, PEDAL 6GUV-140101-6000 | Skladem | 108,75 Kč | ||
| 35 | BOLT, PEDAL 6NQ#-140104-6002 | Skladem | 101,56 Kč | ||
| 36 | SHIFT LEVER PEDAL ASSY 6KWV-140110-1000 | Skladem | 1 211,84 Kč | ||
| 36 | SHIFT LEVER PEDAL ASSY 6KWV-140110-1000-10 | Skladem | 1 211,84 Kč | ||
| 37 | CONNECTING PART, GEARSHIFT ROD 6WWV-140120-5000 | Skladem | 899,49 Kč | ||
| 38 | Ložisko 6GU#-140140-6001 | Skladem | 279,66 Kč | ||
| 39 | Matice 30200-060870 | Není skladem | |||
| 40 | CONNECTING ROD 6WWV-140121-5000 | Skladem | 310,73 Kč | ||
| 41 | Matice 30200-06087L | Skladem | 15,54 Kč | ||
| 42 | Ložisko 6GU#-140160-6001 | Skladem | 279,66 Kč | ||
| 43 | Šroub (vrut) 30121-060016700 | Skladem | 15,54 Kč | ||
