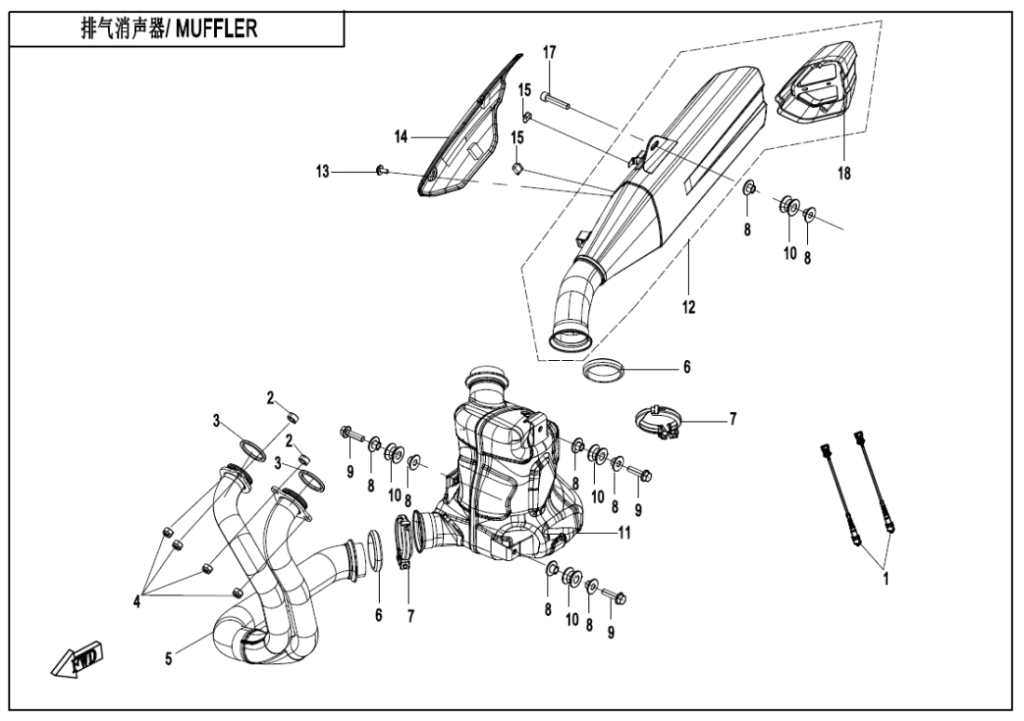

F02 MUFFLER
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | OXYGEN SENSOR 0HU0-176000 | Skladem | 3 045,13 Kč | ||
| 2 | BUSHING, EXHAUST PORT 6WWV-020001-5000 | Skladem | 77,68 Kč | ||
| 3 | SEAL GASKET, EXHAUST 6WWV-020004-5000 | Skladem | 77,68 Kč | ||
| 4 | SELF-LOCKING NUT M8 CU K-51010086100 | Skladem | 261,36 Kč | ||
| 5 | EXHAUST PIPE ASSY 6WWV-021100-5001 | Není skladem | 7 954,64 Kč | ||
| 6 | SEAL SLEEVE 1, GRAPHITE 6L30-021001 | Skladem | 159,59 Kč | ||
| 7 | CLAMP C63605058100 | Skladem | 419,48 Kč | ||
| 8 | BUSHING, MUFFLER BODY 6WWV-020002-5001 | Skladem | 46,61 Kč | ||
| 9 | BOLT M8x30 30006-080030810 | Skladem | 15,54 Kč | ||
| 10 | RUBBER SLEEVE, MUFFLER BODY 6WWV-020003-5000 | Skladem | 31,07 Kč | ||
| 11 | FRONT MUFFLER ASSY 6KWV-021200-1201 | Není skladem | 10 393,85 Kč | ||
| 11 | FRONT MUFFLER BODY ASSY 6KWV-021200-1301 | Skladem | 6 164,27 Kč | ||
| 11 | FRONT MUFFLER BODY ASSY 6KWV-021200-1302 | Skladem | 6 164,27 Kč | ||
| 12 | REAR MUFFLER ASSY 6KWV-021300-1001 | Skladem | 11 496,94 Kč | ||
| 12 | REAR MUFFLER BODY ASSY 6KWV-021300-1002 | Skladem | |||
| 13 | INNER HEX SCREW M6x12 6WWV-046702-5000 | Skladem | 15,54 Kč | ||
| 14 | MUFFLER GUARD 6KWV-021001-1000 | Skladem | 295,19 Kč | ||
| 15 | GUARD RUBBER SLEEVE 6GU#-021005-6000 | Skladem | 46,61 Kč | ||
| 16 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 17 | SCREW M8x40 30102-080040810 | Skladem | 15,54 Kč | ||
| 18 | TAIL GUARD ASSY 6KWV-021370-1001 | Skladem | |||
