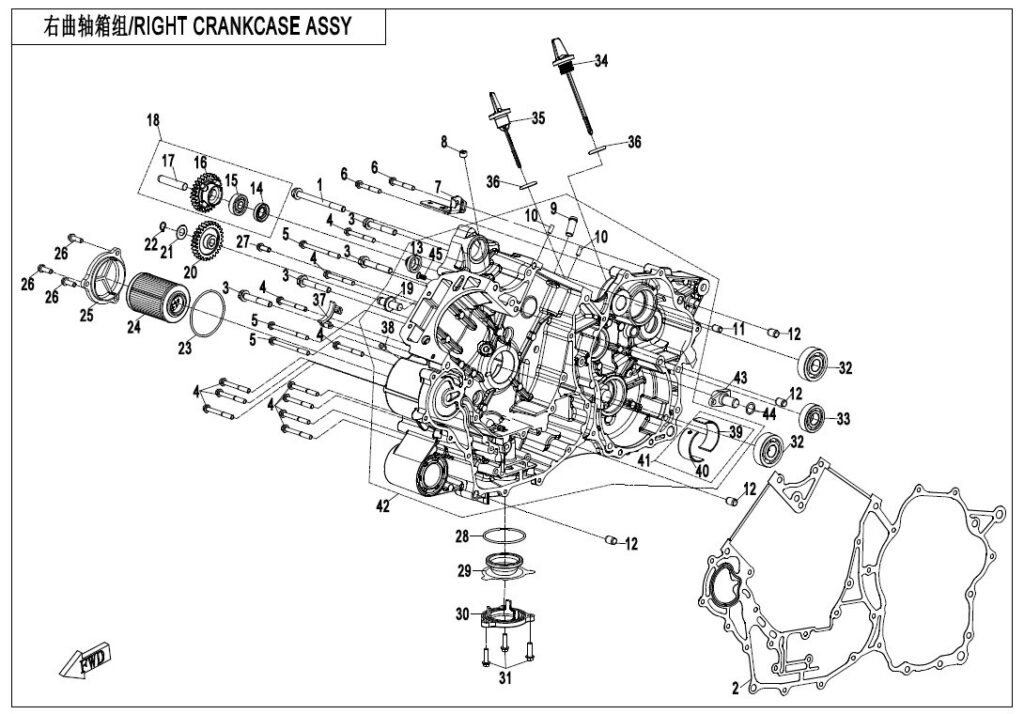

E01-2-V2 RIGHT CRANKCASE ASSY
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | Šroub 0JWV-010015-3000 | Skladem | 31,07 Kč | ||
| 02 | CRANKCASE GASKET 0JWV-010016-3002 | Skladem | 668,07 Kč | ||
| 03 | BOLT M8×50 0040-012006-0010 | Skladem | 43,52 Kč | ||
| 04 | BOLT M6x50 0010-013010-0010 | Skladem | 29,02 Kč | ||
| 05 | Šroub 0020-011018-00001 | Skladem | 15,54 Kč | ||
| 06 | BOLT M6x40 0010-013009-0010 | Skladem | 15,54 Kč | ||
| 07 | CABLE BRACKET 0JWV-012108-3000 | Skladem | 46,61 Kč | ||
| 08 | Šroub (vrut) 01A0-012010-00001 | Skladem | 15,54 Kč | ||
| 09 | PIPE BREATHER 0700-011103 | Skladem | 46,61 Kč | ||
| 10 | ROLLER NEEDLE P5×11.8 30406-00500 | Skladem | 15,54 Kč | ||
| 11 | DOWEL PIN φ8×14 0010-080008 | Skladem | 15,54 Kč | ||
| 12 | DOWEL PIN φ10×14 0010-021005 | Skladem | 15,54 Kč | ||
| 13 | SEAT, BREATHER 0JWV-011105-3000 | Skladem | 170,90 Kč | ||
| 14 | OIL SEAL 15×26×6 0800-011203 | Skladem | 108,75 Kč | ||
| 15 | Ložisko 30400-01003 | Skladem | 93,22 Kč | ||
| 16 | GEAR, BREATHER 0JWV-011201-3000 | Skladem | 201,97 Kč | ||
| 17 | SHAFT, BREATHER 0800-011202 | Skladem | 77,68 Kč | ||
| 18 | BREATHER ASSY 0JWF-0112A0 | Skladem | 574,85 Kč | ||
| 19 | IDLE GEAR SHAFT, BREATHER 0800-011104 | Skladem | 201,97 Kč | ||
| 20 | IDLE GEAR, BREATHER 0JWV-011004-3000 | Skladem | 170,90 Kč | ||
| 21 | WASHER 10 0800-011005 | Skladem | 31,07 Kč | ||
| 22 | CIRCLIPS FOR SHAFT10 30801-01005 | Skladem | 29,02 Kč | ||
| 23 | O-SEAL RING 63×2.5 0800-014003 | Skladem | 43,52 Kč | ||
| 24 | OIL FILTER, ENGINE 0800-011300-0004 | Skladem | 465,70 Kč | ||
| 25 | FILTER COVER 0800-014002-00001 | Skladem | 203,28 Kč | ||
| 26 | Šroub 0010-023008-00001 | Skladem | 15,54 Kč | ||
| 27 | BOLT M6x16 0010-090005-0010 | Skladem | 15,54 Kč | ||
| 28 | O-RING 55*2.5 Q830-310006-10000 | Skladem | 77,68 Kč | ||
| 29 | STRAINER ASSY 0JWV-011011-3000 | Skladem | 264,12 Kč | ||
| 30 | OIL STRAINER COVER 0JWV-011012-3000 | Skladem | 450,56 Kč | ||
| 31 | BOLT M6x20 0010-023010-0010 | Skladem | 15,54 Kč | ||
| 32 | Ložisko 30499-01700 | Skladem | 357,34 Kč | ||
| 33 | BALL BEARING 30499-01703 | Skladem | 419,48 Kč | ||
| 33 | BEARING 6203 30400-01704 | Skladem | 310,73 Kč | ||
| 34 | ENGINE OIL DIPSTICK 0JWA-014004-00001 | Skladem | 62,15 Kč | ||
| 35 | DIPSTICK, ENGINE OIL 0JWV-011104-3000 | Skladem | 108,75 Kč | ||
| 36 | O-SEAL RING 18×3.55 0110-013030 | Skladem | 15,54 Kč | ||
| 37 | CHAIN GUARD 0800-011007 | Skladem | 46,61 Kč | ||
| 38 | NOZZLE VALVE ASSY 0800-011400-00001 | Skladem | 186,44 Kč | ||
| 39 | MAIN BEARING 1 0JWV-011102-3000-Q0-00001 | Skladem | 372,87 Kč | ||
| 39 | MAIN BEARING 1 0JWV-011102-3000-Q0-00002 | Skladem | 372,87 Kč | ||
| 39 | MAIN BEARING 1 0JWV-011102-3001-Q0-00001 | Skladem | 217,51 Kč | ||
| 39 | MAIN BEARING 1 0JWV-011102-3001-Q0-00002 | Skladem | 217,51 Kč | ||
| 40 | MAIN BEARING 2 0JWV-011103-3000-Q0-00001 | Skladem | 372,87 Kč | ||
| 40 | MAIN BEARING 2 0JWV-011103-3000-Q0-00002 | Skladem | 372,87 Kč | ||
| 40 | MAIN BEARING 2 0JWV-011103-3001-Q0-00001 | Skladem | 217,51 Kč | ||
| 40 | MAIN BEARING 2 0JWV-011103-3001-Q0-00002 | Skladem | 217,51 Kč | ||
| 41 | MAIN BEARING ASSY 0JWV-0111A0 | Skladem | 730,21 Kč | ||
| 41 | MAIN BEARING ASSY 0JWV-0111B0 | Skladem | 730,21 Kč | ||
| 42 | RH CRANKCASE ASSY SH-0JWF-0121A0-1000 | Skladem | 13 594,35 Kč | ||
| 43 | SPEEDOMETER SENSOR 0GQV-011020-2600 | Skladem | 870,04 Kč | ||
| 44 | O-SEAL RING 13×2 01A0-013005 | Skladem | 15,54 Kč | ||
| 45 | LOCK SCREW T25 0180-064002-00001 | Skladem | 15,54 Kč | ||
