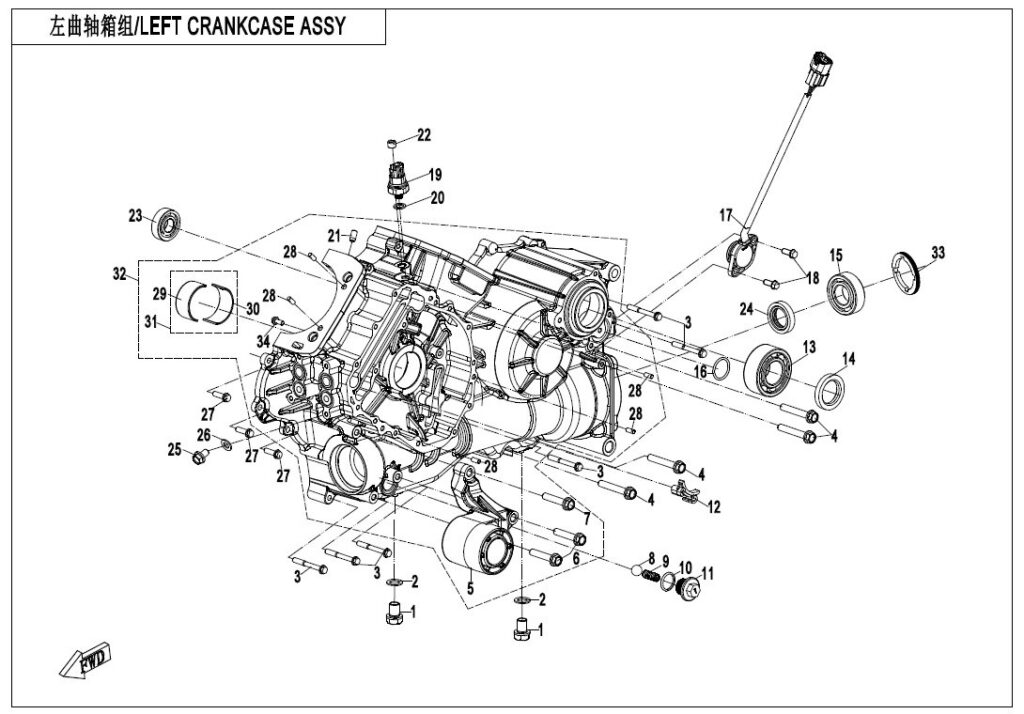

E01-1 LEFT CRANKCASE ASSY
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | DRAIN BOLT, MAGNETIC M12X1.5 0180-011500 | Skladem | 116,06 Kč | ||
| 02 | WASHER 12 0010-021014 | Skladem | 29,02 Kč | ||
| 03 | BOLT M6x50 0010-013010-0010 | Skladem | 29,02 Kč | ||
| 04 | BOLT M8×50 0040-012006-0010 | Skladem | 43,52 Kč | ||
| 05 | LH FRONT BRACKET 9AWV-450271-8000 | Skladem | 1 211,84 Kč | ||
| 06 | SCREW M8x40 30006-080040110 | Skladem | 31,07 Kč | ||
| 07 | Šroub 30006-080035110 | Skladem | 31,07 Kč | ||
| 08 | STEEL BALL 3120015 | Skladem | 15,54 Kč | ||
| 09 | SPRING,RELIEF VALVE 0700-012603-1000 | Skladem | 62,15 Kč | ||
| 10 | O-SEAL RING 19×2.5 0180-332004 | Skladem | 15,54 Kč | ||
| 11 | SCREW PLUG,RELIEF VALVE 0GR0-014003 | Skladem | 93,22 Kč | ||
| 12 | CHAIN GUARD 0800-011007 | Skladem | 46,61 Kč | ||
| 13 | BEARING 3206A 30499-03000 | Skladem | 1 755,61 Kč | ||
| 14 | OIL SEAL 0180-012006-10000 | Skladem | 174,24 Kč | ||
| 15 | Ložisko 30400-02501 | Skladem | 155,36 Kč | ||
| 16 | O-SEAL RING 24×2.5 0180-023002 | Skladem | 43,52 Kč | ||
| 17 | GEAR SENSOR 0JWV-012200-3001 | Skladem | 590,38 Kč | ||
| 18 | BOLT M6x16 0010-090005-0010 | Skladem | 15,54 Kč | ||
| 19 | OIL PRESSURE SWITCH 0800-012400 | Skladem | 319,17 Kč | ||
| 20 | WASHER 10 0010-060010 | Skladem | 31,07 Kč | ||
| 21 | NOZZLE VALVE ASSY 0800-011400-00001 | Skladem | 186,44 Kč | ||
| 22 | Šroub (vrut) 01A0-012010-00001 | Skladem | 15,54 Kč | ||
| 23 | BALL BEARING 30499-01703 | Skladem | 419,48 Kč | ||
| 23 | BEARING 6203 30400-01704 | Skladem | 310,73 Kč | ||
| 24 | OIL SEAL 25×40×8 0010-011002 | Skladem | 139,83 Kč | ||
| 25 | BOLT M8×12.5, FLANGE 0180-332002-0010 | Skladem | 15,54 Kč | ||
| 26 | WASHER 8.5 0010-023305 | Skladem | 43,52 Kč | ||
| 27 | BOLT M6x20 0010-023010-0010 | Skladem | 15,54 Kč | ||
| 28 | ROLLER NEEDLE P5×11.8 30406-00500 | Skladem | 15,54 Kč | ||
| 29 | MAIN BEARING 1 0JWV-011102-3000-Q0-00001 | Skladem | 372,87 Kč | ||
| 29 | MAIN BEARING 1 0JWV-011102-3000-Q0-00002 | Skladem | 372,87 Kč | ||
| 29 | MAIN BEARING 1 0JWV-011102-3001-Q0-00001 | Skladem | 217,51 Kč | ||
| 29 | MAIN BEARING 1 0JWV-011102-3001-Q0-00002 | Skladem | 217,51 Kč | ||
| 30 | MAIN BEARING 2 0JWV-011103-3000-Q0-00001 | Skladem | 372,87 Kč | ||
| 30 | MAIN BEARING 2 0JWV-011103-3000-Q0-00002 | Skladem | 372,87 Kč | ||
| 30 | MAIN BEARING 2 0JWV-011103-3001-Q0-00001 | Skladem | 217,51 Kč | ||
| 30 | MAIN BEARING 2 0JWV-011103-3001-Q0-00002 | Skladem | 217,51 Kč | ||
| 31 | MAIN BEARING ASSY 0JWV-0111A0 | Skladem | 730,21 Kč | ||
| 31 | MAIN BEARING ASSY 0JWV-0111B0 | Skladem | 730,21 Kč | ||
| 32 | LH CRANKCASE ASSY SH-0JWF-0111A0-1000 | Skladem | 14 029,37 Kč | ||
| 33 | MIDDLE BEARING RETAINER, FRONT OUTPUT SHAFT 0JWA-012004 | Skladem | 261,14 Kč | ||
| 34 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
