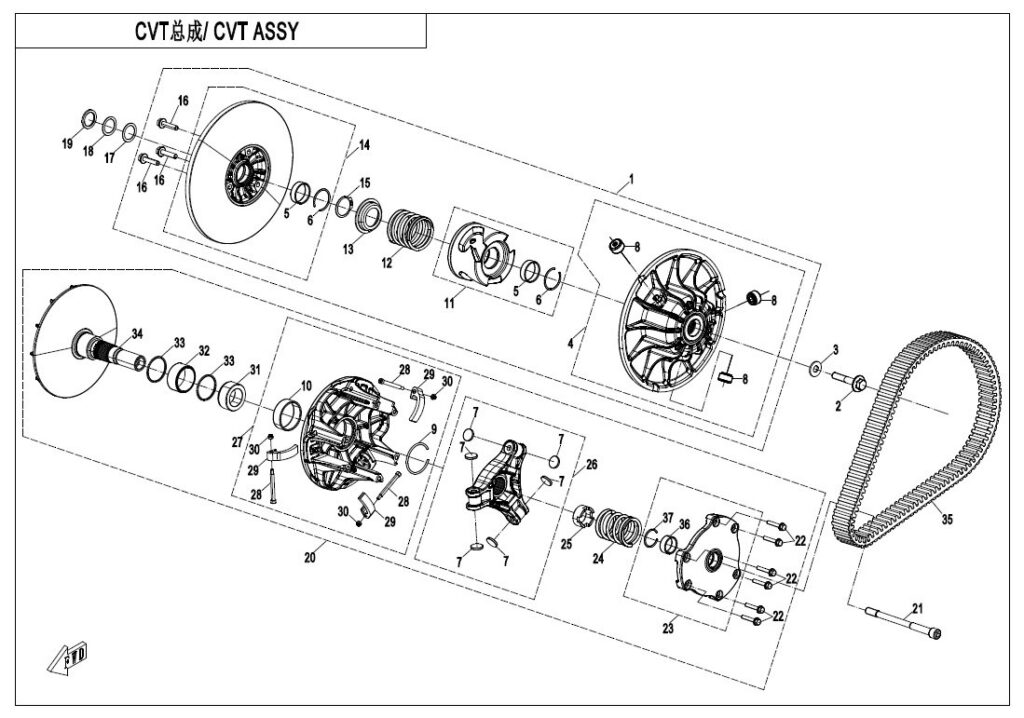

E05-B-V1 CVT ASSY(ONLY FOR MUD WITHOUT ABS)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | DRIVEN PULLEY ASSY 0JYV-052000-5300 | Skladem | 17 540,60 Kč | ||
| 2 | MAIN DRIVE SHAFT BOLT 0JWV-060001-3000 | Skladem | 130,68 Kč | ||
| 3 | DRIVEN PULLEY BOLT WASHER 12 0JWV-050004-3000 | Skladem | 31,07 Kč | ||
| 4 | DRIVEN FIXED PULLEY ASSY 0JWV-052100-3002 | Skladem | 8 715,92 Kč | ||
| 5 | Ložisko 0JWV-052202-3000 | Skladem | 341,80 Kč | ||
| 6 | CIRCLIP 0JWV-052203-3000 | Skladem | 31,07 Kč | ||
| 7 | THRUST DISC SLIDER 0JWV-051601-3000 | Skladem | 481,63 Kč | ||
| 8 | DRIVEN FIXED PULLEY ROLLER 0JWV-052003-3000 | Skladem | 838,97 Kč | ||
| 9 | CIRCLIP 0JWV-051103-3000 | Skladem | 31,07 Kč | ||
| 10 | Ložisko 0JWV-051102-3000 | Skladem | 1 087,55 Kč | ||
| 11 | DRIVEN PULLEY CAM ASSY 0JWV-052300-3002 | Skladem | 2 610,12 Kč | ||
| 12 | SPRING, DRIVEN PULLEY 0JYV-052001-5300 | Skladem | 528,24 Kč | ||
| 13 | DRIVEN PULLEY SPRING SEAT 0JWV-052002-3000 | Skladem | 87,12 Kč | ||
| 14 | DRIVEN SLIDER ASSY 0JWV-052200-3001 | Skladem | 2 718,87 Kč | ||
| 15 | CIRCLIP FOR SHAFT 30801-03505 | Skladem | 31,07 Kč | ||
| 16 | Šroub 30023-100045160 | Skladem | 62,15 Kč | ||
| 17 | DRIVEN PULLEY WASHER 1 0JWV-050002-3000 | Skladem | 46,61 Kč | ||
| 18 | DRIVEN PULLEY WASHER 2 0JWV-050003-3000 | Skladem | 46,61 Kč | ||
| 19 | DRIVEN PULLEY WASHER 4 0JWV-050005-3000 | Skladem | 46,61 Kč | ||
| 20 | DRIVE PULLEY ASSY 0JYV-051000-5300 | Skladem | 21 984,01 Kč | ||
| 21 | DRIVE PULLEY BOLT 0JWV-050001-3000 | Skladem | 363,00 Kč | ||
| 22 | BOLT M6x35 30006-060035810 | Skladem | 15,54 Kč | ||
| 23 | DRIVE SLIDER POSITION DISC ASSY 0JWV-051300-3001 | Skladem | 3 542,30 Kč | ||
| 24 | SPRING, DRIVE PULLEY 0JYV-051002-5000 | Skladem | 357,34 Kč | ||
| 25 | DRIVE PULLEY NUT 0JWV-051001-3001 | Skladem | 217,51 Kč | ||
| 26 | THRUST DISC ASSY 0JWV-051600-3001 | Skladem | 6 261,17 Kč | ||
| 27 | PRIMARY LOOSE PULLEY ASSY 0JYV-051100-5300 | Skladem | 6 773,87 Kč | ||
| 28 | INNER HEX BOLT 0JWV-051105-3000 | Skladem | 124,29 Kč | ||
| 29 | WEIGHT ROLLER ASSY 0JYV-051110-5300 | Skladem | 574,85 Kč | ||
| 30 | Matice 30220-050810 | Skladem | 15,54 Kč | ||
| 31 | DRIVE PULLEY BUSHING 0JWV-051006-3000 | Skladem | 481,63 Kč | ||
| 32 | BEARING ASSY, DRIVE PULLEY 0JWV-051400-3000 | Skladem | 1 677,93 Kč | ||
| 33 | DRIVE PULLEY BEARING GASKET 0JWV-051007-3001 | Skladem | 31,07 Kč | ||
| 34 | DRIVE FIXED PULLEY ASSY 0JWV-051200-3001 | Skladem | 13 532,20 Kč | ||
| 35 | CVT BELT 0JWV-055000-3000 | Skladem | 6 312,99 Kč | ||
| 36 | Ložisko 0JWV-051302-3000 | Skladem | 341,80 Kč | ||
| 37 | CIRCLIP 30805-03205 | Skladem | 31,07 Kč | ||
