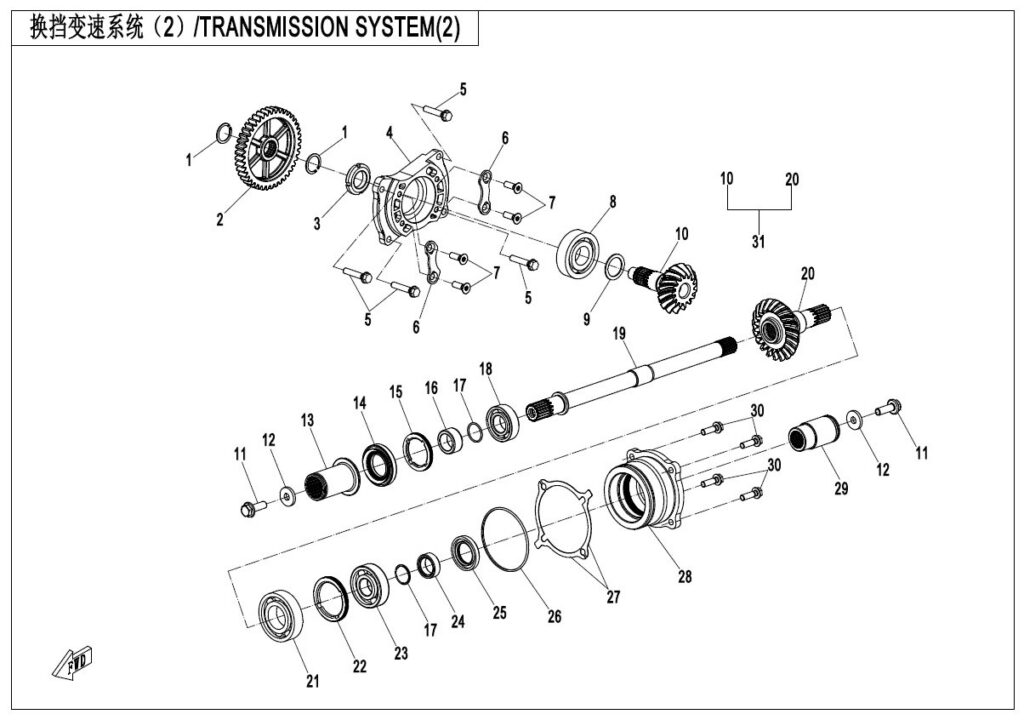

E06-2 TRANSMISSION SYSTEM(2)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | CIRCLIP 25 0180-061007-0050 | Skladem | 15,54 Kč | ||
| 02 | OUTPUT DRIVEN GEAR 0800-062102 | Skladem | 1 258,45 Kč | ||
| 03 | LOCK NUT, BEVEL GEAR 0JWV-062102-3000 | Skladem | 93,22 Kč | ||
| 04 | DRIVE BEVEL GEAR BEARING SEAT 0JWV-062103-3001 | Skladem | 838,97 Kč | ||
| 05 | Šroub 0JWV-010014-3000 | Skladem | 31,07 Kč | ||
| 06 | LIMITATOR, BEARING 0180-062104-0010 | Skladem | 46,61 Kč | ||
| 07 | SCREW M8X25 30124-080025810 | Skladem | 15,54 Kč | ||
| 08 | BEARING 28×68×18 0110-041007 | Skladem | 1 196,30 Kč | ||
| 09 | ADJUSTING WASHER, DRIVE BEVEL GEAR 0JYV-062101-1E00-Q0-00001 | Skladem | 15,54 Kč | ||
| 09 | ADJUSTING WASHER, DRIVE BEVEL GEAR 0JYV-062101-1E00-Q0-00002 | Skladem | 15,54 Kč | ||
| 09 | ADJUSTING WASHER, DRIVE BEVEL GEAR 0JYV-062101-1E00-Q0-00003 | Skladem | 15,54 Kč | ||
| 09 | ADJUSTING WASHER, DRIVE BEVEL GEAR 0JYV-062101-1E00-Q0-00004 | Skladem | 15,54 Kč | ||
| 09 | ADJUSTING WASHER, DRIVE BEVEL GEAR 0JYV-062101-1E00-Q0-00005 | Skladem | 15,54 Kč | ||
| 11 | LOCK NUT, BEVEL GEAR 0JWA-060002-00001 | Skladem | 58,08 Kč | ||
| 12 | WASHER 10×27.5×4 0GR0-062204 | Skladem | 43,52 Kč | ||
| 13 | FRONT OUTPUT BUSHING 0JWV-060201-3000 | Skladem | 761,28 Kč | ||
| 14 | OIL SEAL 0JWA-062302-00001 | Skladem | 333,96 Kč | ||
| 15 | BEARING RETAINER, FRONT OUTPUT SHAFT 0180-060008 | Skladem | 155,36 Kč | ||
| 16 | OUTPUT SHAFT SLEEVE 0800-062201-00001 | Není skladem | 264,12 Kč | ||
| 17 | O-SEAL RING 25×2 0800-062205 | Skladem | 46,61 Kč | ||
| 18 | Ložisko 30400-02501 | Skladem | 155,36 Kč | ||
| 19 | FRONT OUTPUT SHAFT ASSY 0JWV-062301-3000 | Skladem | 2 252,78 Kč | ||
| 21 | Ložisko 30499-03501 | Skladem | 1 040,94 Kč | ||
| 22 | STOPPER NUT, BEARING 0800-062206 | Skladem | 124,29 Kč | ||
| 23 | Ložisko 30499-02501 | Skladem | 636,99 Kč | ||
| 24 | BUSHING 0JWV-062208-3001 | Skladem | 217,51 Kč | ||
| 25 | OIL SEAL 35×50×7 0800-062204 | Skladem | 174,09 Kč | ||
| 26 | O-SEAL RING 88×2.5 0180-062205 | Skladem | 116,06 Kč | ||
| 27 | ADJUST GASKET, DRIVEN BEVEL GEAR 0800-062203 | Skladem | 43,52 Kč | ||
| 27 | ADJUST GASKET, DRIVEN BEVEL GEAR 0800-062203-0001 | Skladem | 31,07 Kč | ||
| 27 | ADJUST GASKET, DRIVEN BEVEL GEAR 0800-062203-0002 | Skladem | 31,07 Kč | ||
| 27 | ADJUST GASKET, DRIVEN BEVEL GEAR 0800-062203-0003 | Skladem | 31,07 Kč | ||
| 27 | ADJUST GASKET, DRIVEN BEVEL GEAR 0800-062203-0004 | Skladem | 31,07 Kč | ||
| 27 | ADJUSTING WASHER, DRIVEN BEVEL GEAR 0800-062203-0050 | Skladem | 31,07 Kč | ||
| 28 | DRIVEN BEVEL GEAR BEARING HOUSING 0800-062202-10002 | Skladem | 978,79 Kč | ||
| 29 | REAR OUTPUT BUSHING 0JWV-060101-3000 | Skladem | 994,33 Kč | ||
| 30 | BOLT M8*28 0JYA-062104 | Skladem | 43,52 Kč | ||
| 31 | BEVEL GEAR ASSY SH-0JWV-0621A0 | Skladem | 6 618,51 Kč | ||
