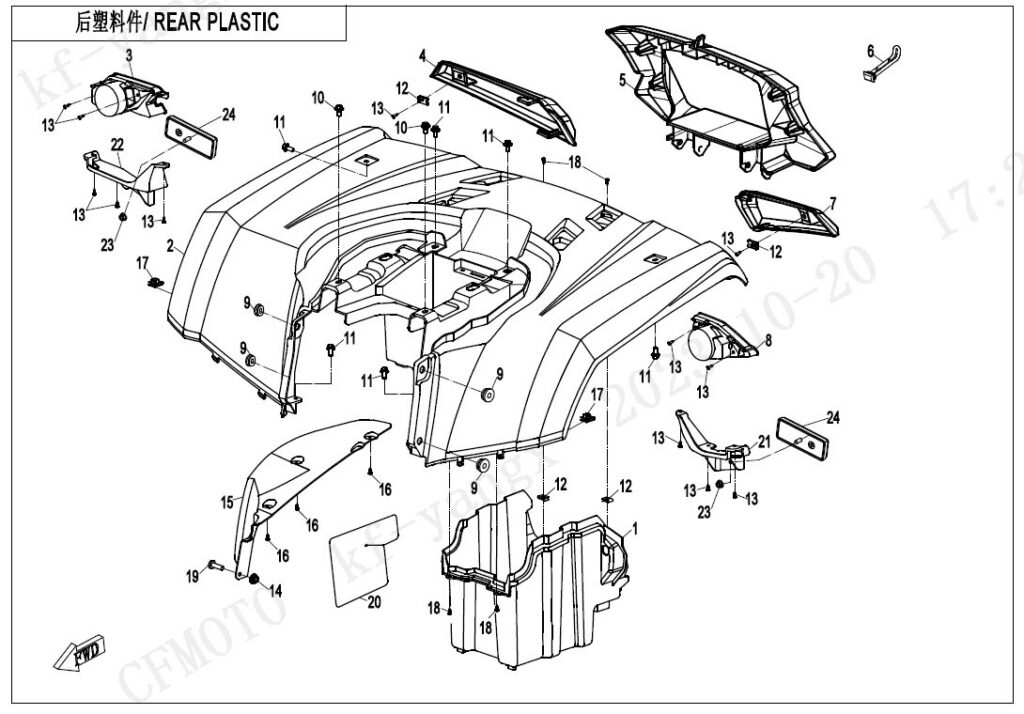

F04-3 REAR PLASTICS
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | REAR TAIL BOX 9GQ0-043022 | Skladem | 730,21 Kč | ||
| 02 | REAR FENDER 9GQV-043021-7401-0P600 | Skladem | 5 266,84 Kč | ||
| 02 | REAR FENDER 9GQV-043021-7401-0H900 | Skladem | 12 537,87 Kč | ||
| 02 | REAR FENDER 9GQV-043021-7401-0PH00 | Skladem | 7 193,35 Kč | ||
| 03 | REAR TURN LIGHT COVER,RH 9GQ0-043024 | Skladem | 116,06 Kč | ||
| 04 | DECO COVER, RH TURN LIGHT 9GQV-043031-9100 | Skladem | 62,15 Kč | ||
| 05 | TAIL LIGHT PANEL 9GQV-043011-9100 | Skladem | 232,32 Kč | ||
| 06 | BAND,FUEL TANK CAP 7020-040315 | Skladem | 58,03 Kč | ||
| 07 | DECO COVER, LH TURN LIGHT 9GQV-043029-9100 | Skladem | 62,15 Kč | ||
| 08 | REAR TURN LIGHT COVER,LH 9GQ0-043023 | Skladem | 116,06 Kč | ||
| 09 | RUBBER COLLAR 0180-015003 | Skladem | 43,52 Kč | ||
| 10 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 11 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 12 | CLAMP ST4.2 8010-000002 | Skladem | 15,54 Kč | ||
| 13 | SELF-TAPPING SCREW ST4.2×16 30110-420160010 | Skladem | 15,54 Kč | ||
| 14 | NUT M6 30204-060810 | Skladem | 15,54 Kč | ||
| 15 | HEAT INSULATOR, REAR FENDER 9GQV-043032-7400 | Skladem | 450,56 Kč | ||
| 16 | SELF-TAPPING SCREW 30110-420130010 | Skladem | 15,54 Kč | ||
| 17 | NUT CLIP M6 8030-040800-00001 | Skladem | 15,54 Kč | ||
| 18 | Šroub (vrut) 30118-480160010 | Skladem | 15,54 Kč | ||
| 19 | SCREW COMP 30112-060016410 | Skladem | 31,07 Kč | ||
| 20 | SMALL HEAT-INSULATED PAPER 9GQ0-043028 | Skladem | 62,15 Kč | ||
| 21 | BRACKET, LEFT REFLECTOR 9GQ1-043021 | Skladem | 58,03 Kč | ||
| 22 | BRACKET, RIGHT REFLECTOR 9GQ1-043022 | Skladem | 58,03 Kč | ||
| 23 | Matice 30202-050110 | Skladem | 15,54 Kč | ||
| 24 | Odrazka 5190-160230-00002 | Skladem | 72,60 Kč | ||
