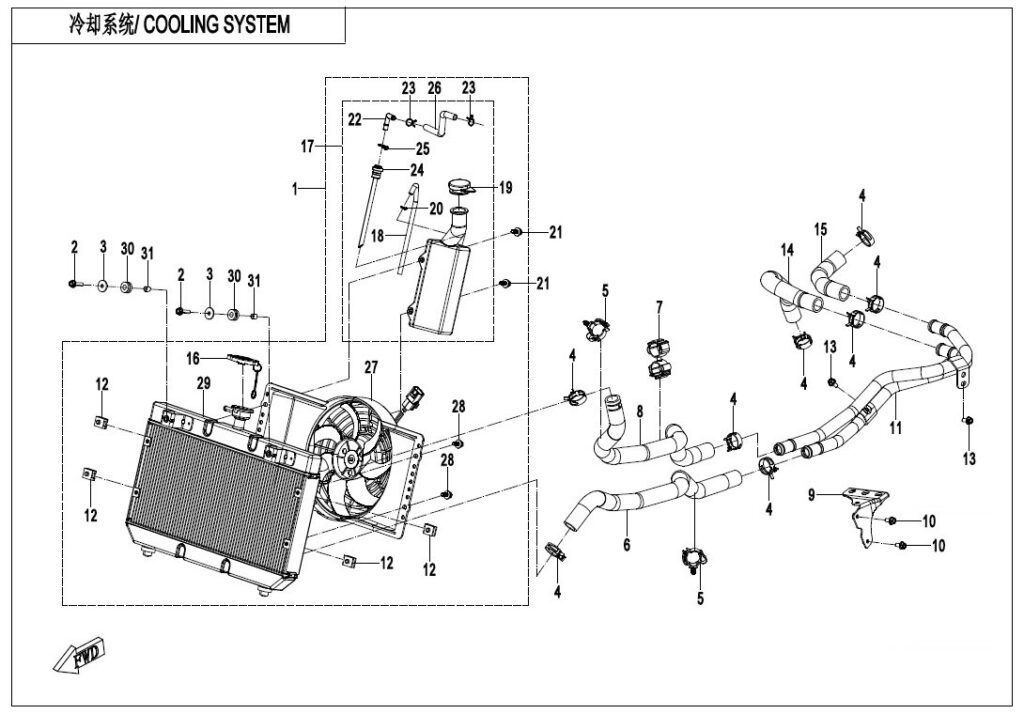

F18 COOLING SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | RADIATOR ASSY 9DQV-181000-1103 | Skladem | 9 104,33 Kč | ||
| 2 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 3 | Podložka 30301-060412 | Skladem | 15,54 Kč | ||
| 4 | CLAMP B30 A000-180006 | Skladem | 87,05 Kč | ||
| 5 | CLASP 27 5HYV-188002-6000 | Skladem | 31,07 Kč | ||
| 6 | WATER OUTLET PIPE, RADIATOR 9DQV-180002-1100 | Skladem | 155,36 Kč | ||
| 7 | DOUBLE TUBE CLAMP 9DQV-182000-1100 | Skladem | 108,75 Kč | ||
| 8 | RADIATOR WATER INLET PIPE 9DQV-180001-1100 | Skladem | 497,16 Kč | ||
| 9 | METAL WATER HOSE FIXED CORD LUG 3 9DQV-180008-1100 | Skladem | 108,75 Kč | ||
| 9 | METAL WATER HOSE FIXED CORD LUG 3 9DQV-180008-1101 | Skladem | |||
| 10 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 11 | METAL WATER HOSE 9DQV-180005-1100 | Skladem | 264,12 Kč | ||
| 12 | U-TYPE NUT 9DQV-181000-1100-22 | Skladem | 62,15 Kč | ||
| 13 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
| 14 | ENGINE WATER INLET PIPE 9DQV-180004-1100 | Skladem | 466,09 Kč | ||
| 15 | ENGINE WATER OUTLET PIPE 9DQV-180003-1100 | Skladem | 466,09 Kč | ||
| 16 | CAP，WATER FILLER 8010-180024 | Skladem | 232,13 Kč | ||
| 17 | RESERVOIR TANK ASSY 9DQV-181030-1102 | Skladem | 388,41 Kč | ||
| 18 | RESERVOIR OVERFLOW PIPE 9DQV-181030-1101-21 | Skladem | 217,51 Kč | ||
| 19 | CAP，RESERVOIR TANK 8010-180023 | Skladem | 46,61 Kč | ||
| 20 | CLAMP A8 30601-108010 | Skladem | 15,54 Kč | ||
| 21 | BOLT ASSY 9DQV-181000-1100-21 | Skladem | 46,61 Kč | ||
| 22 | JOINT, RESERVOIR TANK 8030-180302 | Skladem | 31,07 Kč | ||
| 23 | CLAMP A10 30601-110010 | Skladem | 15,54 Kč | ||
| 24 | RESERVOIR CONNECTING HOSE 9DQV-181030-1100-22 | Skladem | 170,90 Kč | ||
| 25 | CLAMP A13 30601-113010 | Skladem | 15,54 Kč | ||
| 26 | RESERVOIR CONNECTING PIPE 9DQV-181031-1102 | Skladem | 217,51 Kč | ||
| 27 | FAN MOTOR ASSY 9DQV-181020-1101 | Skladem | 3 744,27 Kč | ||
| 28 | BOLT ASST 9DQV-181000-1100-20 | Skladem | 46,61 Kč | ||
| 29 | RADIATOR ASSY 9DQV-181010-1103 | Skladem | 4 163,76 Kč | ||
| 30 | RUBBER CUSHION ，RADIATOR 9060-180027 | Skladem | 15,54 Kč | ||
| 31 | Pouzdro 6090-040303 | Skladem | 15,54 Kč | ||
