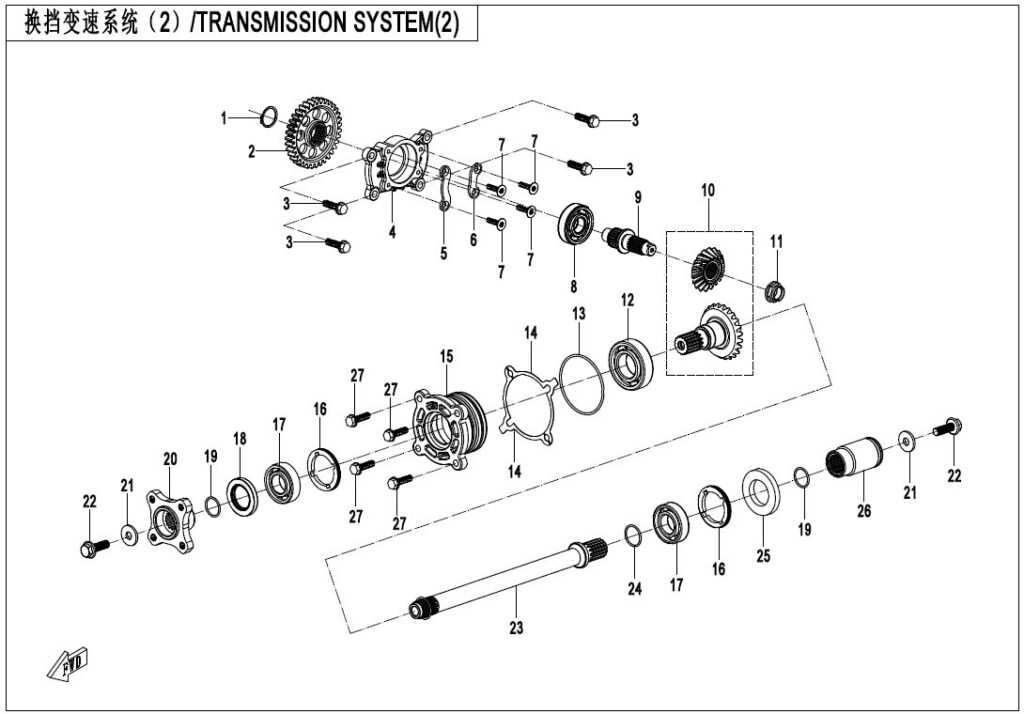

E06-2 TRANSMISSION SYSTEM(2)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | CIRCLIP 25 0180-061007-0050 | Skladem | 15,54 Kč | ||
| 2 | OUTPUT DRIVER GEAR 0GQV-062110-5000 | Skladem | 963,26 Kč | ||
| 3 | BOLT M8*28 0JYA-062104 | Skladem | 43,52 Kč | ||
| 4 | DRIVE BEVEL GEAR BEARING SEAT 0GRV-062200-5000 | Skladem | 388,41 Kč | ||
| 5 | GEAR SEAT LH LIMIT PLATE 0GRV-062103-5000 | Skladem | 31,07 Kč | ||
| 6 | GEAR SEAT RH LIMIT PLATE 0GRV-062104-5000 | Skladem | 31,07 Kč | ||
| 7 | HEXAGONAL COUNTERSUNK HEAD SCREW 30142-060020870 | Skladem | 15,54 Kč | ||
| 8 | BEARING 30499-02010 | Skladem | 388,41 Kč | ||
| 9 | DRIVE BEVEL GEAR SHAFT 0GRV-062120-5000 | Skladem | 714,67 Kč | ||
| 10 | BEVEL GEAR ASSY SH-0GRV-0621A0 | Skladem | 2 796,55 Kč | ||
| 11 | BEVEL GEAR LOCK NUT 0GRV-062101-5000 | Skladem | 62,15 Kč | ||
| 12 | ROLLER BEARING 0GRV-065201-5000 | Skladem | 372,87 Kč | ||
| 13 | O RING SEAL 0VHV-021006-1000 | Skladem | 15,54 Kč | ||
| 14 | DRIVEN BEVEL GEAR ADJUSTING GASKE 0GRV-065122-5000 | Skladem | 31,07 Kč | ||
| 14 | DRIVEN BEVEL GEAR ADJUSTING GASKE 0GRV-065123-5000 | Skladem | 31,07 Kč | ||
| 14 | DRIVEN BEVEL GEAR ADJUSTING GASKE 0GRV-065124-5000 | Skladem | 31,07 Kč | ||
| 14 | DRIVEN BEVEL GEAR ADJUSTING GASKE 0GRV-065125-5000 | Skladem | 31,07 Kč | ||
| 14 | DRIVEN BEVEL GEAR ADJUSTING GASKET 0GRV-065121-5000 | Skladem | 31,07 Kč | ||
| 15 | DRIVEN BEVEL GEAR BEARING SEAT 0GRV-065200-5000 | Skladem | 621,46 Kč | ||
| 16 | BEARING RETAINER, FRONT OUTPUT SHAFT 0180-060008 | Skladem | 155,36 Kč | ||
| 17 | ROLLER BEARING 0GRV-065202-5000 | Skladem | 201,97 Kč | ||
| 18 | OIL SEAL 35×50×7 0800-062204 | Skladem | 174,09 Kč | ||
| 19 | O-SEAL RING 25×2 0800-062205 | Skladem | 46,61 Kč | ||
| 20 | COUPLER Q850-331002-10000 | Skladem | |||
| 21 | WASHER 10×27.5×4 0GR0-062204 | Skladem | 43,52 Kč | ||
| 22 | LOCK NUT, BEVEL GEAR 0JWA-060002-00001 | Skladem | 58,08 Kč | ||
| 23 | FRONT OUTPUT SHAFT 0GRV-065100-5000 | Skladem | 1 165,23 Kč | ||
| 24 | O SEAL RING 0GRV-015107-5001 | Skladem | |||
| 24 | O SEAL RING 0GRV-015107-5000 | Skladem | 15,54 Kč | ||
| 25 | OIL SEAL 0GRV-065102-5000 | Skladem | 46,61 Kč | ||
| 26 | ENGINE DRIVE SLEEVE 0GRV-331002-5000 | Skladem | |||
| 27 | Šroub 0130-011114-00001 | Skladem | 31,07 Kč | ||
