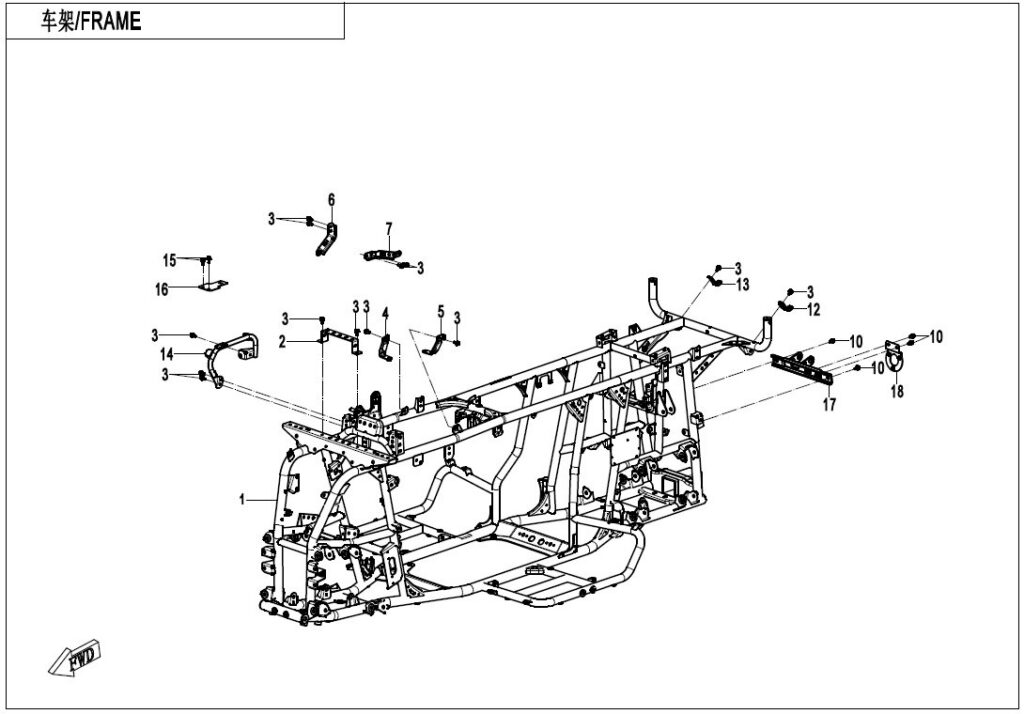

F03-A FRAME
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | FRAME ASSY 9DRV-031000-1102-0BP00 | 1 | |||
| 2 | WIRE HARNESS FIXED PLATE 1 9DRV-032005-1101 | 1 | |||
| 3 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 4 | AIR FILTER RH MOUNTING PLATE 9DQV-032004-1100 | Skladem | 46,61 Kč | ||
| 5 | AIR FILTER LH MOUNTING PLATE 9DQV-032003-1100 | Skladem | 46,61 Kč | ||
| 6 | RH SIDE PLATE METAL PLATE 9DRV-032112-1102 | 1 | |||
| 7 | LH SIDE PLATE METAL PLATE 9DRV-032113-1100 | 1 | |||
| 8 | FRONT GEAR CASE UPPER FIXED SEAT 9DQV-310010-1100 | Skladem | 279,66 Kč | ||
| 9 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 10 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 11 | REAR GEAR CASE UPPER FIXED SEAT 9DQV-330010-1100 | Skladem | 419,48 Kč | ||
| 12 | TAIL LIGHT GUARD LH SUPPORT PLATE 9DRV-032000-1100 | 1 | |||
| 13 | TAIL LIGHT GUARD RH SUPPORT PLATE 9DRV-032001-1100 | 1 | |||
| 14 | GEARSHIFT LIMIT PIPE ASSY 9DRV-322000-1100 | 1 | |||
| 15 | SELF-TAPPING SCREW ST3.5×9.5 30110-350095010 | Skladem | 15,54 Kč | ||
| 16 | RELAY BRACKET 9DQV-032008-1100 | Skladem | 15,54 Kč | ||
| 17 | MUFFLER MOUNTING PLATE 9DRV-021301-1101 | 1 | |||
| 18 | BRACKET 2. TRAILER POWER 9DQV-400030-3000 | Není skladem | 124,29 Kč | ||
