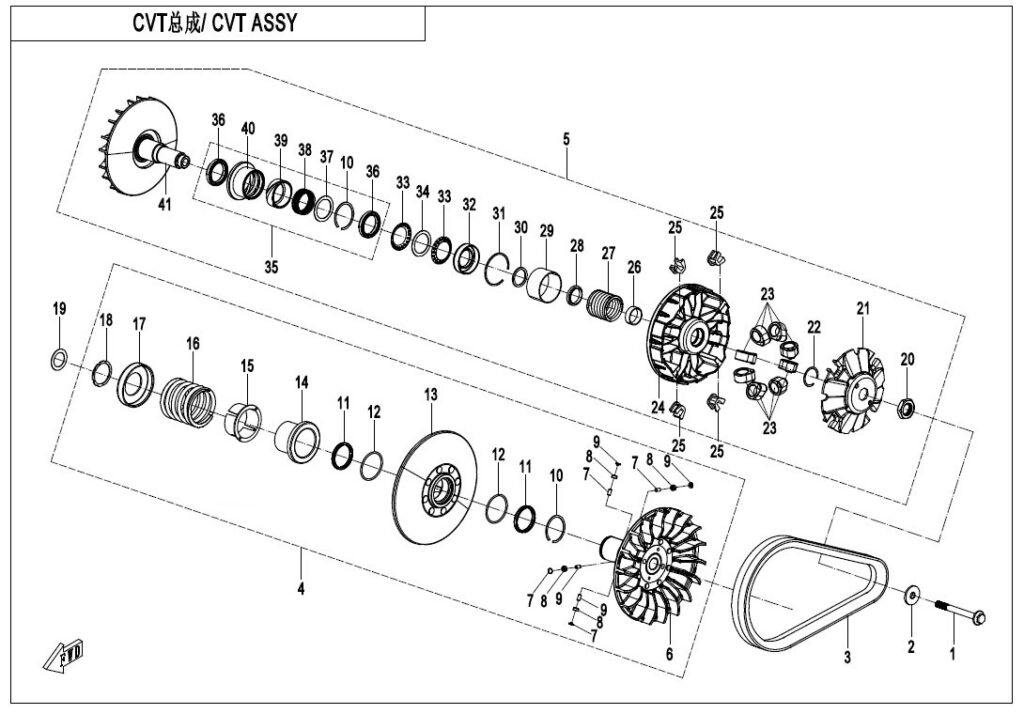

E05-V1 CVT ASSY
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | CONNECTING SCREW ROD 0GRV-050001-5000 | Skladem | 139,83 Kč | ||
| 2 | WASHER 0GRV-050002-5000 | Skladem | 62,15 Kč | ||
| 3 | CVT BELT 0GRV-055000-5000 | Skladem | 4 603,69 Kč | ||
| 4 | CVT DRIVEN PULLEY ASSY 0GRV-052000-5000 | Skladem | 7 970,17 Kč | ||
| 5 | CVT DRIVE PULLEY ASSY 0GRV-051000-5000 | Skladem | 12 957,36 Kč | ||
| 6 | SECONDARY FIXED WHEEL ASSY 0GRV-052010-5000 | Skladem | 4 194,83 Kč | ||
| 7 | SECONDARY ROLLER RACE COVER 0GRV-052041-5000 | Skladem | 124,29 Kč | ||
| 8 | SECONDARY ROLLER 0GRV-052040-5000 | Skladem | 62,15 Kč | ||
| 9 | SECONDARY ROLLER WHEEL 0GRV-052050-5000 | Skladem | 62,15 Kč | ||
| 10 | CONSTANT SECTION RINGS 0GRV-051144-5000 | Skladem | 46,61 Kč | ||
| 11 | OIL SEAL 0GRV-052000-5000-22 | Skladem | 108,75 Kč | ||
| 12 | O-RING 0GRV-052000-5000-21 | Skladem | 31,07 Kč | ||
| 13 | SECONDARY MOVING WHEEL ASSY 0GRV-052020-5000 | Skladem | 3 216,03 Kč | ||
| 14 | MOVING SPRING SEAT 0GRV-052030-5000 | Skladem | 139,83 Kč | ||
| 15 | MOVING SPRING BUSHING 0GRV-052080-5000 | Skladem | 201,97 Kč | ||
| 16 | SECONDARY COMPRESSION SPRING 0GRV-052060-5000 | Skladem | 248,58 Kč | ||
| 17 | SPRING PROTECTOR 0GRV-052070-5000 | Skladem | 279,66 Kč | ||
| 18 | CONSTANT SECTION RINGS 0GRV-052144-5000 | Skladem | 31,07 Kč | ||
| 19 | ADJUSTING GASKET 0GRV-050003-5000 | Skladem | 31,07 Kč | ||
| 20 | NUT M22×1.25 0GRV-051030-5000 | Skladem | 93,22 Kč | ||
| 21 | RAMP 0GRV-051020-5000 | Skladem | 481,63 Kč | ||
| 22 | CONSTANT SECTION RINGS FOR HOLE 34 0GRV-051040-5000 | Skladem | 46,61 Kč | ||
| 23 | ROLLER ASSY 0GRV-051010-5000 | Skladem | 201,97 Kč | ||
| 24 | PRIMARY MOVING WHEEL 0GRV-051090-5000 | Skladem | 1 258,45 Kč | ||
| 25 | SHOCK ABSORBER SLIDER 0GRV-051080-5000 | Skladem | 139,83 Kč | ||
| 26 | SELF-LUBRICATING BEARINGS 2 0GRV-051050-5000 | Skladem | 46,61 Kč | ||
| 27 | PRIMARY COMPRESSION SPRING 0GRV-051060-5000 | 1 | |||
| 28 | SELF-LUBRICATING GASKET 0GRV-051070-5000 | Skladem | 77,68 Kč | ||
| 29 | SELF-LUBRICATING BEARINGS 1 0GRV-051100-5000 | Skladem | 186,44 Kč | ||
| 30 | GASKET 1 0GRV-051110-5000 | Skladem | 31,07 Kč | ||
| 31 | SANP RING FOR HOLE 55 0GRV-051120-5000 | Skladem | 62,15 Kč | ||
| 32 | SPRING SEAT 0GRV-051130-5000 | Skladem | 310,73 Kč | ||
| 33 | ONE-WAY CLUTCH DISC SPRING 0GRV-051161-5000 | Skladem | 108,75 Kč | ||
| 34 | DISC SPRING WASHER 0GRV-051160-5000 | Skladem | 46,61 Kč | ||
| 35 | ONE-WAY CLUTCH 0GRV-051140-5000 | Skladem | 3 899,64 Kč | ||
| 36 | DEEP GROOVE BALL BEARING 0GRV-051142-5000-20 | Skladem | 776,82 Kč | ||
| 37 | OIL DEFLECTING WASHER 0GRV-051146-5000 | Skladem | 31,07 Kč | ||
| 38 | SPRAG TYPE CLUTCH 1 0GRV-051143-5000 | Skladem | 1 413,81 Kč | ||
| 39 | ONE-WAY BEARING SEAT 0GRV-051141-5000 | Skladem | 279,66 Kč | ||
| 40 | FLANGE SOCKET 0GRV-051145-5000 | Skladem | 388,41 Kč | ||
| 41 | PRIMARY FIXED WHEEL ASSY 0GRV-051150-5000 | Skladem | 4 055,00 Kč | ||
