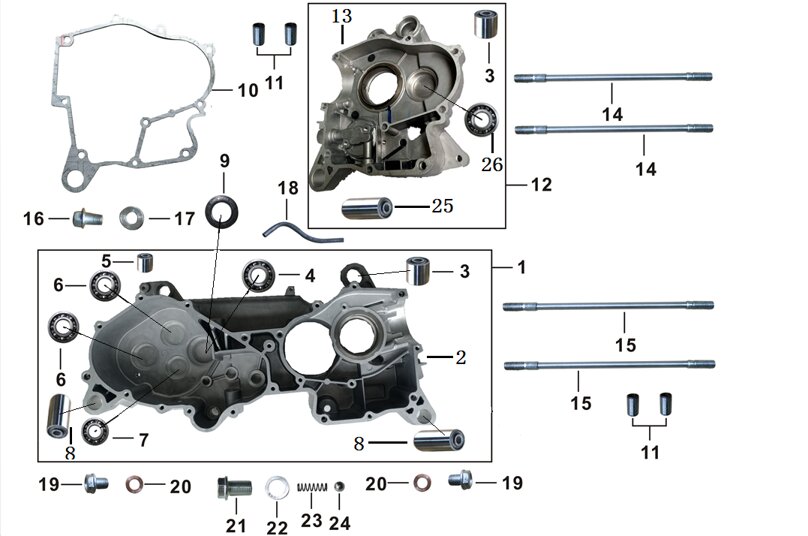

Sestava klikové skříně
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| C-7 | BEARING RADLAL BALL 6202 GB00307-94-062020 | 0 | |||
| C-6 | BEARING RADLAL BALL 6203 GB00307-94-062030 | 0 | |||
| C-4 | BEARING RADLAL BALL 6204 GB00307-94-062040 | 0 | |||
| C-26 | BEARING RADLAL BALL 6301 GB00307-94-063010 | 0 | |||
| C-14 | BOLT 2 STUD M8×187 GB05785-86-081870 | 0 | |||
| C-15 | BOLT 2 STUD M8×196 GB05785-86-081960 | 0 | |||
| C-19 | BOLT DRAINPLUG GB05787-86-120150 | 0 | |||
| C-16 | BOLT SPECLAL GB05787-86-080120 | 0 | |||
| C-3 | BUSH ENGINE HANGER RUBBER 052QMI0-020100100 | 0 | |||
| C-5 | BUSH RR CUSHION UNDER BUBBER 052QMI0-020100200 | 0 | |||
| C-8 | BUSH RR CUSHION UNDER BUBBER 065YML0-0201002A0 | 0 | |||
| C-25 | BUSH RR CUSHION UNDER BUBBER 065YML0-020100200 | 0 | |||
| C-2 | CRANKCASE ASSY L 063YMKP-020110000 | 0 | |||
| C-13 | CRANKCASE ASSY R 063YMKP-020410000 | 0 | |||
| C-10 | GASKET CRANKCASE 057QMJP-0200003A0 | 0 | |||
| C-18 | GEAR BOX VENT PIPE 057QMJD-0200006B0 | 0 | |||
| C-21 | GO TO BOLT GB06177-86-140210 | 0 | |||
| C-23 | GO TO BOLT SPRING 057QMJD-100000700 | 0 | |||
| C-22 | GO TO BOLT WASHER GB19675-05-220201 | 0 | |||
| C-24 | GO TO STEEL BALL 9.5 057QMJD-100000800 | 0 | |||
| C-1 | LEFT CRANKCASE COVER ASSY 063YMKP-020100000 | 0 | |||
| C-9 | OIL SEAL GB15326-94-032060 | 0 | |||
| C-11 | PIN DOWEL GB19675-05-080140 | 0 | |||
| C-12 | RIGHT CRANKCASE COVER ASSY 063YMKP-020400000 | 0 | |||
| C-17 | WASHER GB19675-05-160151 | 0 | |||
| C-20 | WASHER DRAIN PLUG 12 GB19675-05-200151 | 0 | |||
