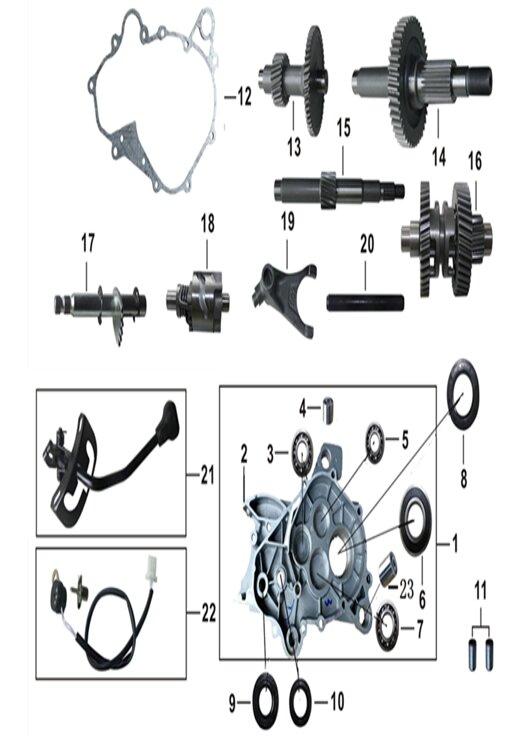

Součásti skříně převodovky
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| L-7 | BEARING RADLAL BALL 6004 GB00307-94-060040 | 0 | |||
| L-5 | BEARING RADLAL BALL 6202 GB00307-94-062020 | 0 | |||
| L-3 | BEARING RADLAL BALL 6203 GB00307-94-062030 | 0 | |||
| L-6 | BEARING RADLAL BALL 6205RS GB00307-94-062050 | 0 | |||
| L-4 | BUSH RR CUSHION UNDER BUBBER 052QMI0-020100200 | 0 | |||
| L-23 | BUSH RR CUSHION UNDER BUBBER 065YML0-020100200 | 0 | |||
| L-20 | CHANGE WAY AXES 057QMJD-100300300 | 0 | |||
| L-17 | CHANGE WAY AXES ASSY 057QMJD-100330000 | 0 | |||
| L-18 | CHANGE WAY DRUM ASSY 057QMJD-100340000 | 0 | |||
| L-19 | CHANGE WAY FORK 057QMJD-100300200 | 0 | |||
| L-16 | CHANGE WAY GEAR ASSY 057QMJD-1003600A0 | 0 | |||
| L-21 | CHANGE WAY POLE ASSY 057QMJD-1000100X0 | 0 | |||
| L-2 | COVER MISSION ASSY 057QMJP-020300100 | 0 | |||
| L-12 | GASKET MISSION COVER 057QMJP-0200002A0 | 0 | |||
| L-1 | GEAR CHAMBER COVER ASSY 057QMJP-020310000 | 0 | |||
| L-13 | MIDDLE AXES ASSY 057QMJD-100320000 | 0 | |||
| L-9 | OIL SEAL GB15326-94-025060 | 0 | |||
| L-10 | OIL SEAL 14×22×5 GB15326-94-022050 | 0 | |||
| L-8 | OIL SEAL 32×52×7 GB15326-94-052070 | 0 | |||
| L-11 | PIN DOWEL GB19675-05-080140 | 0 | |||
| L-15 | SHAFT DRIVE 057QMJP-100300100 | 0 | |||
| L-14 | SHAFT FINAL ASSY 057QMJD-1003100E0 | 0 | |||
| L-22 | STOPPER NEEDLE 057QMJD-100020100 | 0 | |||
