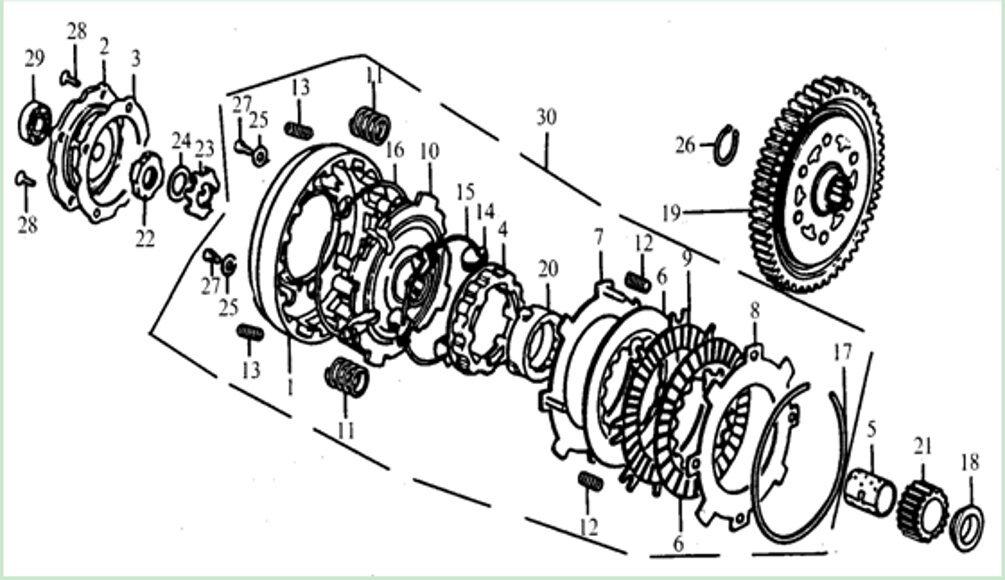

Spojka
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | Cluth Hood 101018-0089 | 1 | |||
| 2 | End Cover 101018-0090 | 1 | |||
| 3 | Gasket 101018-0091 | 1 | |||
| 4 | Clutch element 101018-0092 | 1 | |||
| 5 | Bushing 101018-0093 | 1 | |||
| 6 | Friction disk A 101018-0094 | 2 | |||
| 7 | Drive Plate A 101018-0095 | 1 | |||
| 8 | Drive Plate B 101018-0096 | 1 | |||
| 9 | Drive Disk B 101018-0097 | 1 | |||
| 10 | Drive Disk B 101018-0098 | 1 | |||
| 11 | Clutch Spring 101018-0099 | 4 | |||
| 12 | Spring 5×10 101018-0100 | 4 | |||
| 13 | Damping Spring 101018-0101 | 4 | |||
| 14 | Clutch Blocks 101018-0102 | 28 | |||
| 15 | Spring 101018-0103 | 1 | |||
| 16 | Collar 101018-0104 | 1 | |||
| 17 | Spring Collar 101018-0105 | 1 | |||
| 18 | Washer 101018-0106 | 1 | |||
| 19 | Primary Driver Gear(69Z) 101018-0107 | 1 | |||
| 20 | Sleeve,Drive Gear 101018-0108 | 1 | |||
| 21 | Primary Driver Gear(17Z) 101018-0109 | 1 | |||
| 22 | Lock Nut M14×1 101018-0110 | 1 | |||
| 23 | Lock Washer 14 101018-0111 | 1 | |||
| 24 | Washer 14 101018-0112 | 1 | |||
| 25 | Washer 5 101018-0113 | 4 | |||
| 26 | Circlet 101018-0114 | 1 | |||
| 27 | Screw M5×10 101018-0115 | 4 | |||
| 28 | Screw M5×10 101018-0116 | 4 | |||
| 29 | Roller Bearing 6000 101018-0117 | 1 | |||
| 30 | Clutch Set 101018-0118 | 1 | |||
