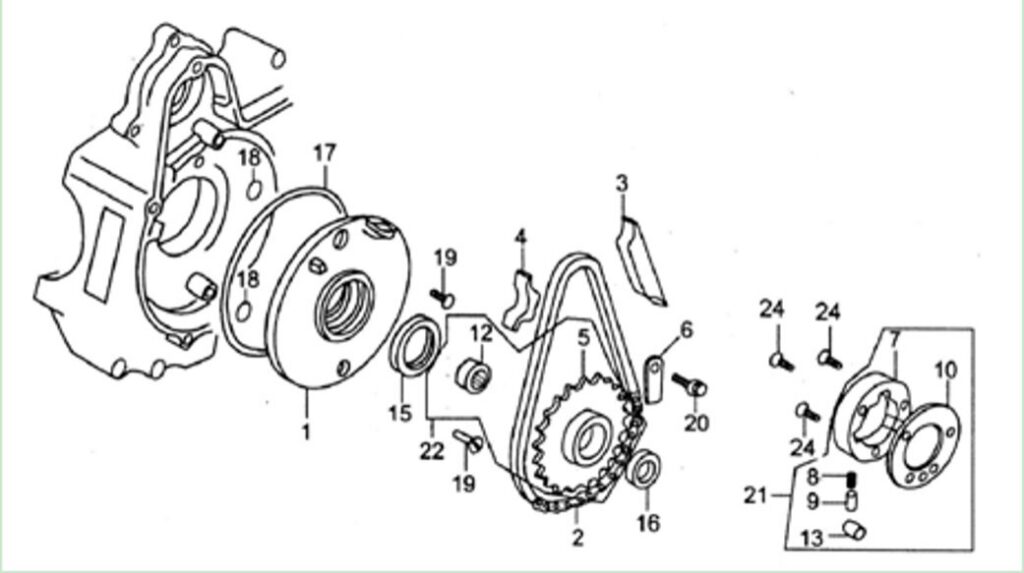

Startovací spojka
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | Oil Separate Plate 101018-0154 | 1 | |||
| 2 | Starting Chain,62T 101018-0155 | 1 | |||
| 3 | Starter Chain Guide 101018-0156 | 1 | |||
| 4 | Starter Chain Protector 101018-0157 | 1 | |||
| 5 | Starting Sprocket Comp 101018-0158 | 1 | |||
| 6 | Starting Sprocket Setting Plate 101018-0159 | 1 | |||
| 7 | Body,Start Clutch 101018-0160 | 1 | |||
| 8 | Spring 101018-0161 | 3 | |||
| 9 | Bush,Spring 101018-0162 | 3 | |||
| 10 | Covering Plate,Starting Clutch 101018-0163 | 1 | |||
| 12 | Starting Sprocket Collar 101018-0164 | 1 | |||
| 13 | Roller 10×10 101018-0165 | 3 | |||
| 15 | Oil seal 30×42×4.5 101018-0166 | 1 | |||
| 16 | Oil seal 18.9×30×5 101018-0167 | 1 | |||
| 17 | O-ring 107×2 101018-0168 | 1 | |||
| 18 | O-ring 6.8×1.9 101018-0169 | 2 | |||
| 19 | Screw M6×16 101018-0170 | 2 | |||
| 20 | Screw M6×14 101018-0171 | 1 | |||
| 21 | Start Clutch Assy 101018-0172 | 1 | |||
| 22 | Sprocket 101018-0173 | 1 | |||
| 24 | Screw M6×14 101018-0174 | 3 | |||
