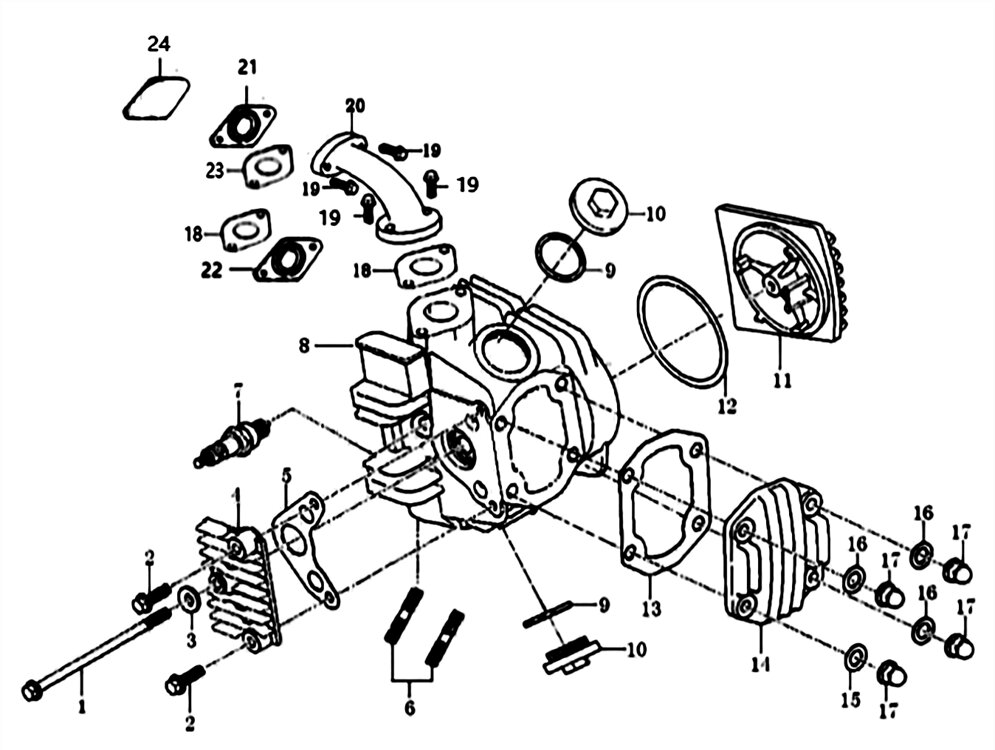

Sestava hlavy válců
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | Bolt,M6×110 A00103-0601-25 | Skladem | 14,69 Kč | ||
| 2 | Bolt, M6×20 A00103-0604-24 | 2 | |||
| 3 | Washer,φ6×φ13×2 A00160-0604 | Skladem | 1,55 Kč | ||
| 4 | Right Cover Cylinder Head H01020-0090 | 1 | |||
| 5 | GASKET,CYLINDER HEAD RIGHT COVER H01020-0130 | Skladem | 2,90 Kč | ||
| 6 | Bolt,M6×35 A00108-0601-25 | Skladem | 6,57 Kč | ||
| 7 | Spark plug H01020-0060 | Skladem | 133,58 Kč | ||
| 8 | Cylinder Head Assy H01021-0010 | 1 | |||
| 9 | O-Ring,φ29.6×3.2 A00280-3001 | Skladem | 22,05 Kč | ||
| 10 | Cover Valve Chamber H01020-0110 | Skladem | 27,07 Kč | ||
| 11 | Left Cover Cylinder Head H01020-0100 | 1 | |||
| 12 | GASKET,CYLINDER HEAD LEFT COVER H01020-0140 | Skladem | 2,90 Kč | ||
| 13 | Gasket Cylinder Head Upper Cover H01020-0120 | 1 | |||
| 14 | Upper Cover Cylinder Head H01020-0080 | 1 | |||
| 15 | Washer,Φ7.3×Φ14×2 A00160-0702 | Skladem | 11,22 Kč | ||
| 16 | Washer,Φ7.2×Φ14×2 A00160-0701 | Skladem | 1,74 Kč | ||
| 17 | Nut M7 A00145-0701-24 | Skladem | 11,22 Kč | ||
| 18 | GASKET,ELBOW H01080-0040 | Skladem | 2,90 Kč | ||
| 19 | Bolt, M6×28 A00103-0607-24 | Skladem | 4,37 Kč | ||
| 20 | Inlet Pipe H01080-0020 | 1 | |||
| 21 | Gasket Carburetor φ25 I01080-0060 | 1 | |||
| 22 | Heat insulating pad H01080-0030 | Skladem | 18,88 Kč | ||
| 23 | Carburetor sealing gasket I01080-0050 | 1 | |||
| 24 | Sealing label H01020-0300 | 1 | |||
