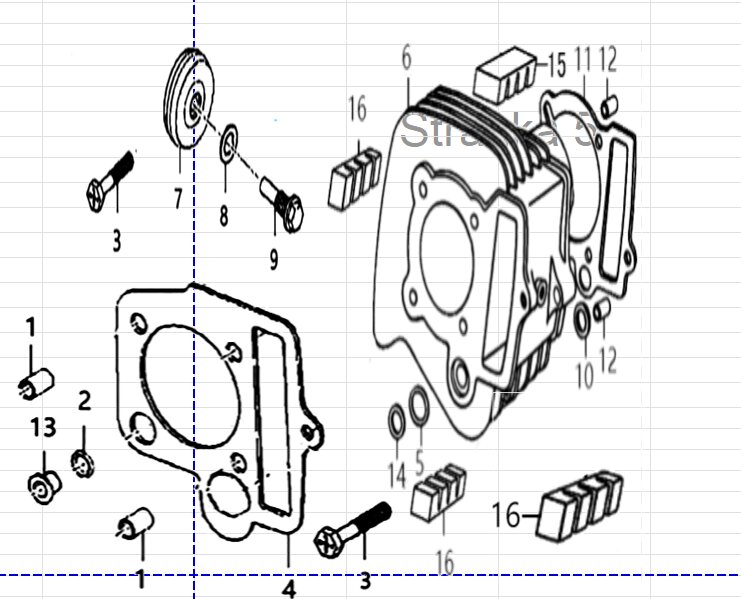

Sestava válce
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | Dowel Pin,φ8×14×φ7 A00206-0802 | Skladem | 2,71 Kč | ||
| 2 | Rectangle Ring,9×11.5×1.5 H01020-0180 | Skladem | 9,28 Kč | ||
| 3 | Bolt,M6×23 A00128-0601-25 | Skladem | 4,07 Kč | ||
| 4 | Gasket Assy Cylinder Head H01020-0150 | 1 | |||
| 5 | Rectangle Ring,14.5×18.5×2.5 H01020-0170 | Skladem | 7,34 Kč | ||
| 6 | Cylinder Block Assembly H01020-0020 | 1 | |||
| 7 | GUIDE CHAIN ROLLER SET H01023-0090 | 1 | |||
| 8 | Washer,Φ8×Φ14×2 A00160-0802 | Skladem | 1,94 Kč | ||
| 9 | Guide Chain Roller Pin H01023-0100 | Skladem | 11,22 Kč | ||
| 10 | Rectangle Ring,11.5×16×2.5 H01020-0160 | Skladem | 8,12 Kč | ||
| 11 | Gasket for cylinder H01020-0030 | Skladem | 29,04 Kč | ||
| 12 | Dowel Pin,φ8×12×φ7 A00206-0803 | Skladem | 2,71 Kč | ||
| 13 | Bush 9.5 H01020-0070 | Skladem | 34,80 Kč | ||
| 14 | Collar.11.5*14*1.5 A00181-1101 | Skladem | 7,73 Kč | ||
| 15 | Cylinder block damping rubber block B H01020-0040 | Skladem | 20,11 Kč | ||
| 16 | Cylinder block damping rubber block A H01020-0050 | Skladem | 12,77 Kč | ||
