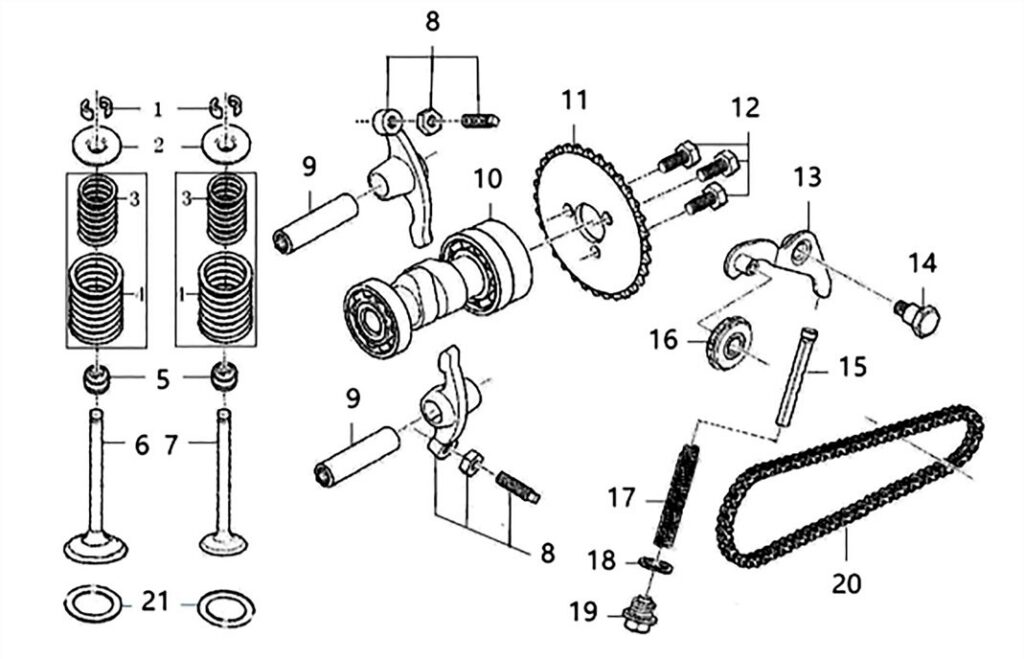

Ventilový mechanismus
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | Valve Locker H01021-0110 | Skladem | 8,12 Kč | ||
| 2 | SpRing,Seat H01021-0100 | Skladem | 15,46 Kč | ||
| 3 | Valve Inner Spring H01021-0090 | Skladem | 21,27 Kč | ||
| 4 | Valve Outer Spring H01021-0080 | Skladem | 35,96 Kč | ||
| 5 | Seal Valve Stem H01021-0020 | Skladem | 34,03 Kč | ||
| 6 | Intake Valve H01021-0060 | 1 | |||
| 7 | Exhaust Valve H01021-0070 | 1 | |||
| 8 | Rocker Arm Assembly Valve H01021-0040 | Skladem | 102,47 Kč | ||
| 9 | Rocker Shaft H01021-0050 | Skladem | 11,60 Kč | ||
| 10 | Gamp Shaft Comp H01021-0030 | 1 | |||
| 11 | Timing Driven Sprocket H01023-0010 | Skladem | 50,26 Kč | ||
| 12 | Bolt,M5×12 A00100-0501-65 | Skladem | 3,29 Kč | ||
| 13 | Chain Adjusting Set H01023-0030 | Skladem | 27,07 Kč | ||
| 14 | Axle Tensioner Lever H01023-0050 | Skladem | 13,54 Kč | ||
| 15 | Cam Chain Tensioner Push Rod H01023-0070 | Skladem | 30,94 Kč | ||
| 16 | Chain Tensioning Wheel H01023-0040 | Skladem | 22,05 Kč | ||
| 17 | Spring H01023-0060 | Skladem | 13,92 Kč | ||
| 18 | Washer,Φ14×Φ20×1.5 A00160-1402 | Skladem | 7,73 Kč | ||
| 19 | Sealing Plug M14×1.5 H01023-0130 | Skladem | 15,46 Kč | ||
| 20 | Sproket Chain H01023-0020 | Skladem | 146,17 Kč | ||
| 21 | Outer Valve SpRing,Retainer H01021-0120 | Skladem | 3,48 Kč | ||
