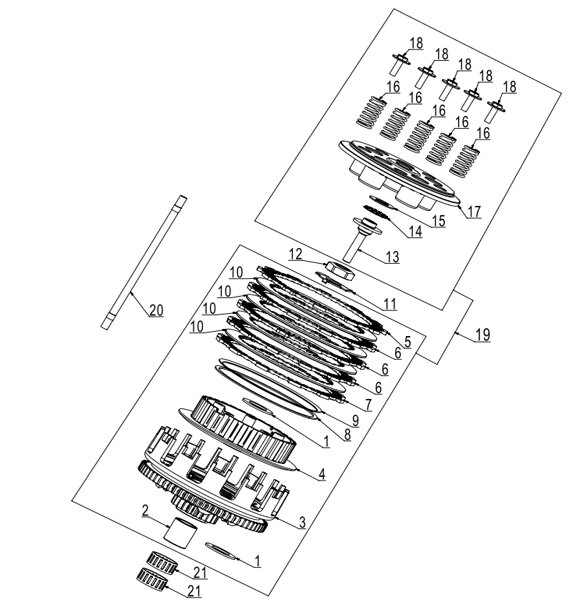

Sestava spojky
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | Washer,φ20.2×1.8×φ34 100106474 | 0 | |||
| 2 | Sleeve Clutch 100103355 | 0 | |||
| 3 | Out Case Assembly Clutch 100155276 | 0 | |||
| 4 | Center Sleeve Clutch 100155277 | 0 | |||
| 5 | Drive Friction Disk 100155279 | 0 | |||
| 6 | Drive Friction Disk 100155278 | 0 | |||
| 7 | Drive Friction Disk 100155280 | 0 | |||
| 8 | Podložka 100155284 | 0 | |||
| 9 | Talířová pružina 100155285 | 0 | |||
| 10 | Clutch friction plate 100147868 | 0 | |||
| 11 | Zastavte podložku, spojku 100103336 | 0 | |||
| 12 | Pojistná matice, spojka 100059391 | 0 | |||
| 13 | Rod Clutch Push-fcc 100149211 | 0 | |||
| 14 | BeaRing,(Axk1528) 100101204 | 0 | |||
| 15 | Washer,φ15×1×φ28 100106415 | 0 | |||
| 16 | Spring Clutch 100716376 | 0 | |||
| 17 | Pressure Plate Clutch 100155282 | 0 | |||
| 18 | Bolt 100155283 | 0 | |||
| 19 | Clutch Assy 100711657 | 0 | |||
| 20 | Tlačení spojky tyče 100103437 | 0 | |||
| 21 | Needle BeaRing,(K25×29×13) 100101018 | 0 | |||
