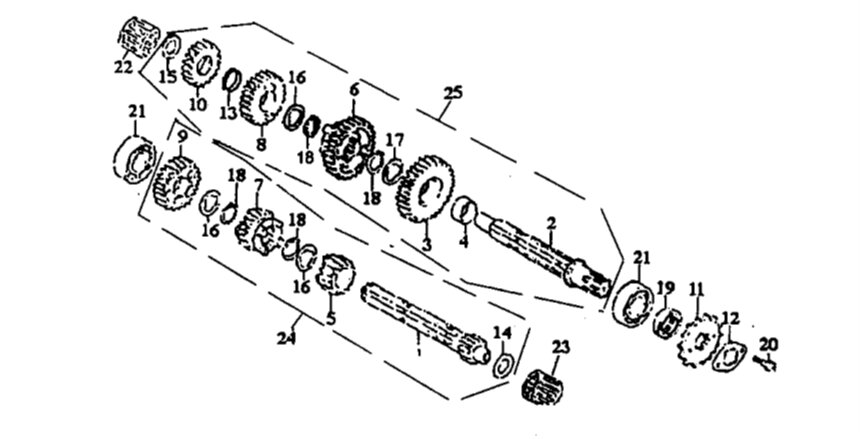

Hlavní hřídel a pomocná hřídel
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | MAIN SHAFT 204-11-1 | 1 | |||
| 2 | COUNTER SHAFT 204-11-2 | 1 | |||
| 3 | C-1 GEAR 204-11-3 | 1 | |||
| 4 | BUSH 20×9 204-11-4 | 1 | |||
| 5 | M-2 GEAR 204-11-5 | 1 | |||
| 6 | C-2 GEAR 204-11-6 | 1 | |||
| 7 | M-3 GEAR 204-11-7 | 1 | |||
| 8 | C-3 GEAR 204-11-8 | 1 | |||
| 9 | M-4 GEAR 204-11-9 | 1 | |||
| 10 | C-4 GEAR 204-11-10 | 1 | |||
| 11 | DRIVE SPROCKET 14T D001K014 | 1 | |||
| 12 | DRIVE SPROCKET FIXING PLATE 204-11-12 | 1 | |||
| 13 | Washer (No.1) 204-11-13 | 1 | |||
| 14 | Washer (No.1) 204-11-14 | 1 | |||
| 15 | Washer (No.2) 204-11-15 | 1 | |||
| 16 | Washer 204-11-16 | 3 | |||
| 17 | SPLINE WASHER 204-11-17 | 1 | |||
| 18 | Circlet 204-11-18 | 4 | |||
| 19 | oil seal D001C008 | 1 | |||
| 20 | Bolt M6×8 578306008 | 2 | |||
| 21 | Bearing 2766203 | 2 | |||
| 22 | Needle Bearing NK13.5/2 204-11-22 | 1 | |||
| 23 | Needle Bearing NK14/2 204-11-23 | 1 | |||
| 24 | Main Shaft Assy 204K030 | 1 | |||
| 25 | Countershaft Assy 204K040 | 1 | |||
