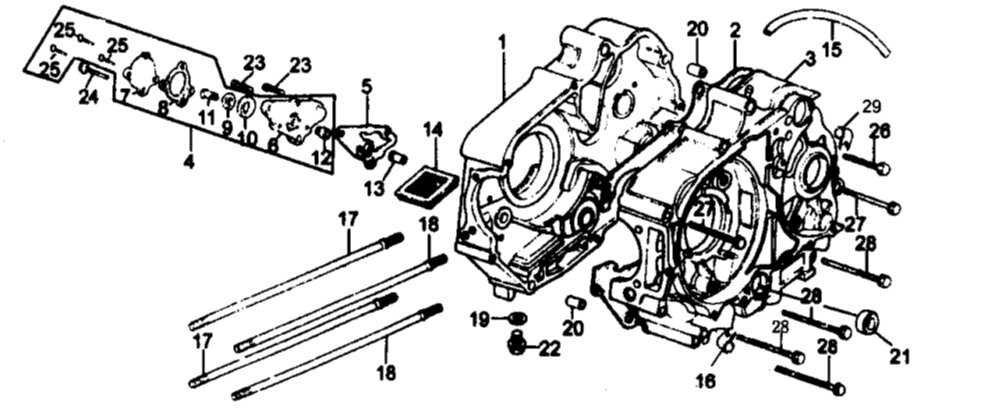

Kliková skříň, olejové čerpadlo
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | Crankcase Sub-Assy,RH 204A020 | 1 | |||
| 2 | Gasket.Crankcase Cover,RH E04B002 | 1 | |||
| 3 | Crabkcase Sub-Assy,LH 2041A010 | 1 | |||
| 4 | Oil pump 204-9-4 | 1 | |||
| 5 | Gasket,Oil pump 204-9-5 | 1 | |||
| 6 | Boby,oil pump 204-9-6 | 1 | |||
| 7 | Cover,oil pump 204-9-7 | 1 | |||
| 8 | Gasket,Oil pump cover 204-9-8 | 1 | |||
| 9 | Inner roater 204-9-9 | 1 | |||
| 10 | Outer roater 204-9-10 | 1 | |||
| 11 | Shaft 204-9-11 | 1 | |||
| 12 | Sleeve 204-9-12 | 1 | |||
| 13 | Sleeve,Sprocket 204-9-13 | 1 | |||
| 14 | Gauze comp. D00C037 | 1 | |||
| 15 | Air pipe D00L013 | 1 | |||
| 16 | Pipe Clamp D00L039 | 1 | |||
| 17 | Bolt A,Cylinder 204M001 | 2 | |||
| 18 | Bolt B,Cylinder 204M002 | 2 | |||
| 19 | Washer 204-9-19 | 1 | |||
| 20 | Dowel pin 97010014 | 2 | |||
| 21 | oil seal D00C026 | 1 | |||
| 22 | Drain plug D00E026 | 1 | |||
| 23 | ScrewM6×16 81906016 | 2 | |||
| 24 | Screw M6×22 204-9-24 | 1 | |||
| 25 | Screw M5×10 204-9-25 | 3 | |||
| 26 | Bolt M6×50 96006050 | 1 | |||
| 27 | Bolt M6×60 96006060 | 2 | |||
| 28 | Bolt 6×65 96006065 | 4 | |||
| 29 | Clamp D00L014 | 1 | |||
