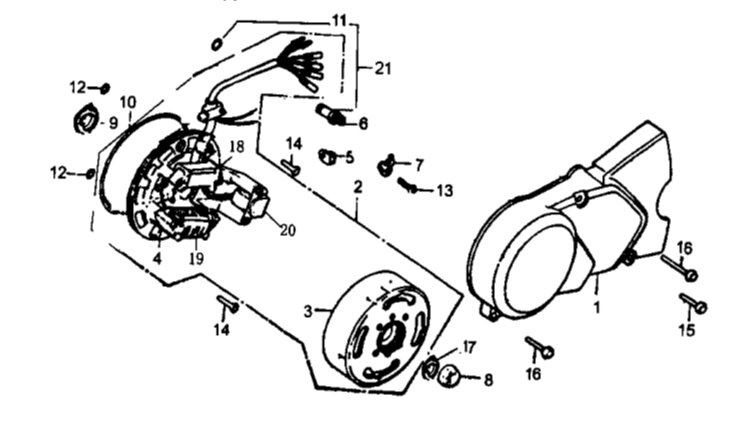

Levý kryt klikové skříně / magneto
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | Crankcase Cover,LH 204-8-1 | 1 | |||
| 2 | Magneto Assy 204-8-2 | 1 | |||
| 3 | Rotor,Magneto A01D060 | 1 | |||
| 4 | Stator,Magneto A0177D070 | 1 | |||
| 5 | Wire Seal Block 204-8-5 | 1 | |||
| 6 | Indicator,Neutral 204-8-6 | 1 | |||
| 7 | Press Plate 204-8-7 | 1 | |||
| 8 | Lock Nut 617710000BX-1 | 1 | |||
| 9 | Seal Oil 18.9×30×5 204-8-9 | 1 | |||
| 10 | O-ring 107×2 204-8-10 | 1 | |||
| 11 | O-ring 7×1.7 204-8-11 | 1 | |||
| 12 | O-ring 6.5×1.9 204-8-12 | 2 | |||
| 13 | Screw M6×12 204-8-13 | 1 | |||
| 14 | Screw M6×14 204-8-14 | 2 | |||
| 15 | Bolt M6×28 204-8-15 | 1 | |||
| 16 | Bolt M6×35 81906035 | 2 | |||
| 17 | Washer 204-8-17 | 1 | |||
| 18 | Charge Coil 204-8-18 | 1 | |||
| 19 | Illumination 204-8-19 | 1 | |||
| 20 | Iuduced Coil 204-8-20 | 1 | |||
| 21 | Neutral Indicator Set 204-8-21 | 1 | |||
