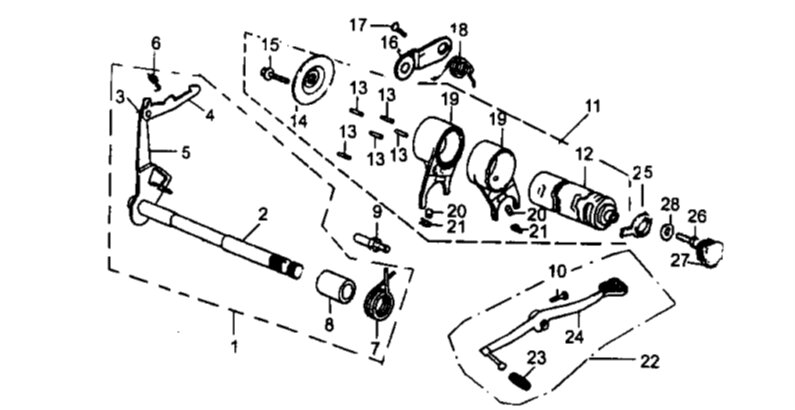

Mechanismus řazení
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | Gearshift Shaft Assy C03K000 | 1 | |||
| 2 | Shaft,Gearshift 204-13-2 | 1 | |||
| 3 | Shifter Set 204-13-3 | 1 | |||
| 4 | Shifter,Secondary 204-13-4 | 1 | |||
| 5 | Shifter 204-13-5 | 1 | |||
| 6 | Spring,Shifter 204-13-6 | 1 | |||
| 7 | Back Spring,Gearshift Shaft 204-13-7 | 1 | |||
| 8 | Guide Sleeve 204-13-8 | 1 | |||
| 9 | Positioning bolt, gearshift arm D00K024 | 1 | |||
| 10 | Bolt M6×30 81906030 | 1 | |||
| 11 | Drum Set,Gearshift D091K060 | 1 | |||
| 12 | Gear Shift Drum 204-13-12 | 1 | |||
| 13 | Pin 204-13-13 | 5 | |||
| 14 | Pressing Plate,Gearshift Indicator 204-13-14 | 1 | |||
| 15 | ScrewM6×16 81906016 | 1 | |||
| 16 | Locating Plate 204K070 | 1 | |||
| 17 | Screw 204-13-17 | 1 | |||
| 18 | Torque Spring D001H009 | 1 | |||
| 19 | Fork(II) 204-13-19 | 2 | |||
| 20 | Guide pin 204-13-20 | 2 | |||
| 21 | Circlip 204-13-21 | 2 | |||
| 22 | Shift Lever As 204-13-22 | 1 | |||
| 23 | Boot,Shift Lever 204-13-23 | 1 | |||
| 24 | shift lever Weldment 204-13-24 | 1 | |||
| 25 | Contact Plate 204-13-25 | 1 | |||
| 26 | Bolt M6×16 204-13-26 | 1 | |||
| 27 | Oil Seal 204-13-27 | 1 | |||
| 28 | Spring Washer 6 204-13-28 | 1 | |||
