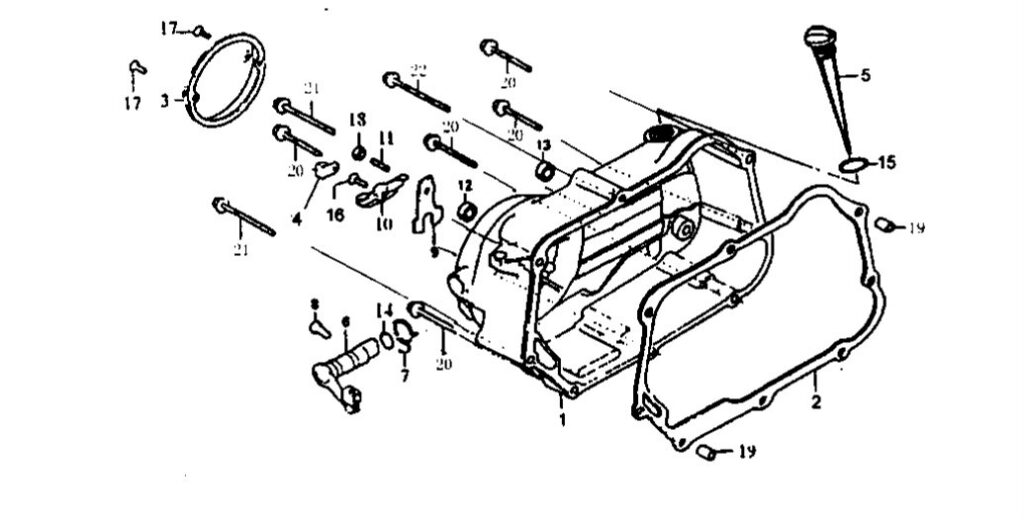

Pravý kryt klikové skříně
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | Right Crankcase Cover D01A034 | 1 | |||
| 2 | Gasket.Crankcase Cover,RH E04B002 | 1 | |||
| 3 | Clutch Cover 204-6-3 | 1 | |||
| 4 | Wire Clamp 204-6-4 | 1 | |||
| 5 | Dipstick D00C038LH | 1 | |||
| 6 | Operating Shaft,Clutch 204-6-6 | 1 | |||
| 7 | Spring 204-6-7 | 1 | |||
| 8 | Set Pin 204-6-8 | 1 | |||
| 9 | Control Plate 204-6-9 | 1 | |||
| 10 | Press Plate 204-6-10 | 1 | |||
| 11 | Screw 204-6-11 | 1 | |||
| 12 | Oil Seal 12×21×4 A00C012 | 1 | |||
| 13 | oil seal D00C016 | 1 | |||
| 14 | O-Ring 204-6-14 | 1 | |||
| 15 | O-seal ring D00C060 | 1 | |||
| 16 | ScrewM6×16 81906016 | 1 | |||
| 17 | Screw 5×12 204-6-17 | 2 | |||
| 18 | Hex Nut 8MM 204-6-18 | 1 | |||
| 19 | Dowel pin 97008012 | 2 | |||
| 20 | Bolt 6×40 96006040 | 5 | |||
| 21 | Bolt 6×80 96006080 | 2 | |||
| 22 | Bolt 6×65 96006065 | 1 | |||
