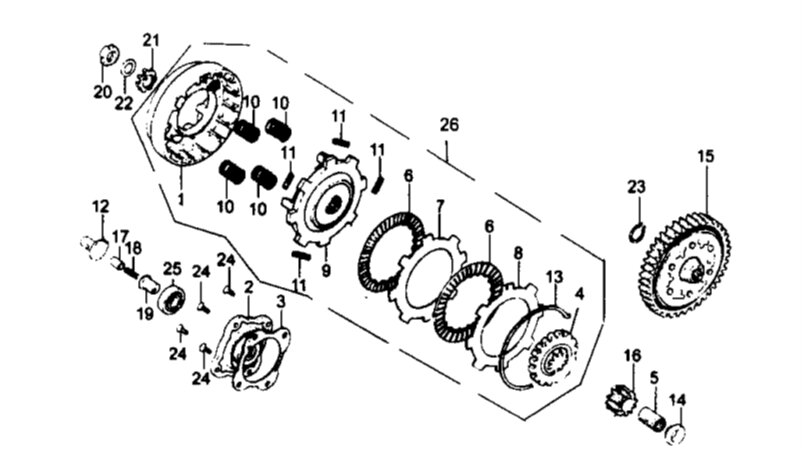

Spojka
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | Cluth Hood 204-7-1 | 1 | |||
| 2 | End Cover 204-7-2 | 1 | |||
| 3 | Gasket 204-7-3 | 1 | |||
| 4 | Sleeve 204-7-4 | 1 | |||
| 5 | Bushing 204-7-5 | 1 | |||
| 6 | Driven Plate Set 204-7-6 | 2 | |||
| 7 | Drive Plate (No.1) 204-7-7 | 1 | |||
| 8 | Drive Plate (No.2) 204-7-8 | 1 | |||
| 9 | Drive Disk 204-7-9 | 1 | |||
| 10 | Spring 204-7-10 | 4 | |||
| 11 | Damping Spring 204-7-11 | 4 | |||
| 12 | Push Rod Set A00G043 | 1 | |||
| 13 | Collar 204-7-13 | 1 | |||
| 14 | Washer 204-7-14 | 1 | |||
| 15 | Primary Driven Gear A00K016 | 1 | |||
| 16 | Primary Driven Gear Set A00K015 | 1 | |||
| 17 | Oil Tube 204-7-17 | 1 | |||
| 18 | Spring 204-7-18 | 1 | |||
| 19 | Sleeve 204-7-19 | 1 | |||
| 20 | Lock Nut M14×1 204-7-20 | 1 | |||
| 21 | Lock Washer 14 204-7-21 | 1 | |||
| 22 | Washer 14 204-7-22 | 1 | |||
| 23 | Retaining ring, driven gear A00K017 | 1 | |||
| 24 | Screw M5×10 204-7-24 | 4 | |||
| 25 | Bearing 6000 204-7-25 | 1 | |||
| 26 | Clutch Body 204-7-26 | 1 | |||
