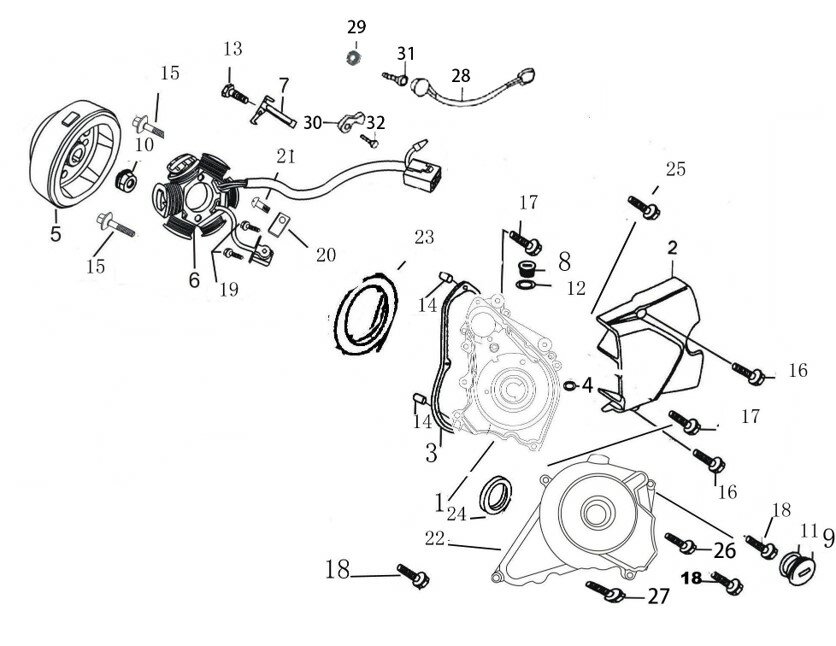

Levý kryt klikové skříně / magneto
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | Left Crankcase Cover Plate E08A048PW | 1 | |||
| 2 | Rear Cober.LH L00WG370PW | 1 | |||
| 3 | Gasket,Crankcase,LH E08B001 | 1 | |||
| 4 | O-seal ring D00C055 | 1 | |||
| 5 | Rotor,Magneto D0015D060 | 1 | |||
| 6 | Stator,Magneto D0040D070 | 1 | |||
| 7 | Wire Clamp E08L011 | 1 | |||
| 8 | A.c generator cap D00A042PW | 1 | |||
| 9 | hole plug D00A043PW | 1 | |||
| 10 | Lock Nut 617710000LBX-3 | 1 | |||
| 11 | O-ring D00C051 | 1 | |||
| 12 | O-ring D00C052 | 1 | |||
| 13 | Bolt 96006014LBX | 1 | |||
| 14 | Dowel pin 97008012 | 2 | |||
| 15 | Bolt 96006022LBX | 2 | |||
| 16 | Bolt 96006028LBX | 2 | |||
| 17 | Bolt 96006032LBX | 3 | |||
| 18 | Bolt 96006035LBX | 1 | |||
| 19 | Screw 578305012LBX-1 | 2 | |||
| 20 | Wire Clamp D00L024 | 1 | |||
| 21 | Screw 81805006LBX | 2 | |||
| 22 | Crankcase Cover,LH E081A040PWAUA-Z | 1 | |||
| 23 | O-ring D002C062 | 1 | |||
| 24 | Oil seal D00C019 | 1 | |||
| 25 | Bolt 96006105LBX | 1 | |||
| 26 | Bolt 96006025LBX | 1 | |||
| 27 | Bolt 96006050LBX | 1 | |||
| 28 | Rubber plug A00C003 | 1 | |||
| 29 | Washer, gearshift drum A00K062 | 1 | |||
| 30 | Baffle, valve camshaft 219L028 | 1 | |||
| 31 | Hexagon head bolt （Full-thread） 578306016LBX | 1 | |||
| 32 | Bolt 96006012LBX | 1 | |||
