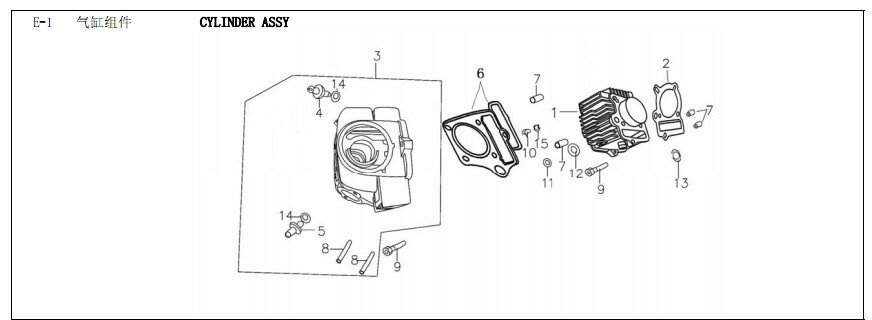

Sestava válce
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | CYLINDER BODY 101020-0001 | Skladem | 2 494,90 Kč | ||
| 2 | CYLINDER BODY SEAL PACKING 101020-0002 | Skladem | 76,76 Kč | ||
| 3 | CYLINDER HEAD ASSY 101020-0003 | Skladem | 2 878,74 Kč | ||
| 4 | SUCTION-VALVE PIPE 101020-0004 | 1 | |||
| 5 | EXHAUST VALVE PIPE 101020-0005 | 1 | |||
| 6 | CYLINDER HEAD SEAL GASKET 101020-0006 | Skladem | 223,10 Kč | ||
| 7 | ASSEMBLING PIN 10 ×12 101020-0007 | Skladem | 19,19 Kč | ||
| 8 | BOLT M6×38 101020-0008 | Skladem | 19,19 Kč | ||
| 9 | BOLT 101020-0009 | Skladem | 38,38 Kč | ||
| 10 | OIL SEAL 101020-0010 | 1 | |||
| 11 | OIL SEAL 101020-0011 | 1 | |||
| 12 | RECTANGLE SEAL PING 101020-0012 | Skladem | 19,19 Kč | ||
| 13 | RECTANGLE SEAL PING 101020-0013 | 1 | |||
| 14 | O-Ring 9×1.6 101020-0014 | 2 | |||
| 15 | SEAL LVASHER 101020-0015 | 1 | |||
